GCL Ghalo Series Indoor LED Video Wall P1.5 P1.9 P2.6 1000x250mm
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gstar-II P1.56.P1.953/P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Brand Name: | GCL | Product Name: | Ghalo Series |
|---|---|---|---|
| Usage: | Indoor Rental | Panel Size: | 1000×250×38 Mm/ 750×250×38mm |
| Module Size: | 250*250mm*3mm | Viewing Angle: | H140°,V140° |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS | Refresh: | 7680Hz |
| Material: | Die-Cast Aluminum | Panel Weight: | 8.5Kg |
| Ip Rating: | IP31 | ||
| Highlight: | GCL Ghalo LED video wall P1.5,indoor fixed LED display 1000x250mm,P1.9 P2.6 LED video panel |
||
Product Description
Ghalo Series 1000*250mm 750*250mm Indoor HD Thin and light steel free structure installation LED video wall
Product Introduction:
Point spacing: 1.56mm, 1.953mm, 2.6mm
Box size: 750 × 250 × 38mm, 1000 × 250 × 38mm
Refresh rate: 7680Hz
The product has a black screen automatic energy-saving function, which is highly efficient and energy-saving. In the black screen state when powered on, the energy-saving rate can reach 50%.
Flexible assembly of various shapes:
The optional 45 degree oblique cut design allows for free splicing and versatile shapes, providing unlimited possibilities for your creative ideas and applications. The product supports right angle, column, and curved shapes, which can easily adapt to various environmental needs and create unique visual effects.
Pre installation and maintenance:

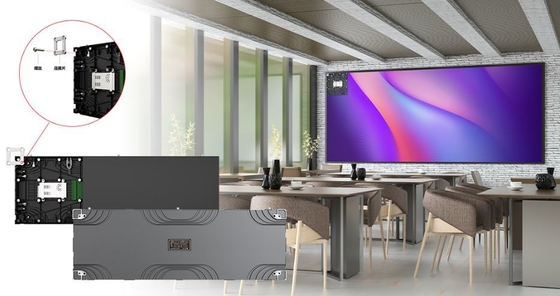

Install the screen without a steel frame structure, using built-in connecting pieces and wall screws between the boxes to easily achieve wall mounted installation and save space
Ghalo series Parameters:
| Parameter | P1.5 | P1.9 | P2.6 |
| Pixel Pitch (mm) | 1.5625 | 1.953 | 2.604 |
| Pixel Density (/m²) | 409,600 | 262,144 | 147,456 |
| LED Model | SMD1010 | SMD1515 | SMD1515 |
| White Balance Brightness (cd/m²) | 1000 | 1000 | 1000 |
| Scanning | 1/40 | 1/32 | 1/24 |
| Cabinet Size (mm) | 1000×250×38 / 750×250×38 | ||
| Module Size (mm) | 250×250×3 | ||
| Cabinet Material | Die-cast Aluminum | ||
| Cabinet Weight | 8.5kg / 10.5kg | ||
| Protection Level | IP31 | ||
| Maintenance Method | Front Maintenance | ||
| Max Power Consumption (/m²) | 600W | ||
| Avg. Power Consumption (/m²) | 150W | ||
| Refresh Rate | 3840-7680Hz | ||
| Grayscale Level | 13-16bit | ||
| Viewing Angle | H140°, V140° | ||
| Input Voltage | AC100~240V (50-60Hz) | ||
| Operating Temperature | -20℃~+60℃ | ||
