GCL P10 Full Color LED Digital Signage Display Mesh LED Display With Wide Viewing Angel
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsurface-III |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | FULL COLOR |
|---|---|---|---|
| Panel Size: | 320*320mm | Supplier Type: | ODM, OEM |
| Media Available: | EDA/CAD Models | Use: | Advertising Publish, Display Of Dishes |
| Pixel Pitch: | 8mm, P3.91 P4.81 P5.92 P8 | Specification: | Digital Poster, Video Wall |
| Usage: | Outdoor Waterproof | Display Function: | Animation |
| Brightness: | 6000nits | Protection Level: | IP65 |
| Viewing Angle: | 140/140 Degree | Refresh Rate: | 1920Hz-3840Hz |
| LED Chip: | Nationstar | Cabinet Material: | Iron |
| Control System: | Novastar | Warranty: | 3 Years |
| Port: | Shenzhen | ||
| Highlight: | P10 LED Digital Signage Display,Full Color LED Digital Signage Display,Wide Viewing Angel Outdoor LED Panel |
||
Product Description

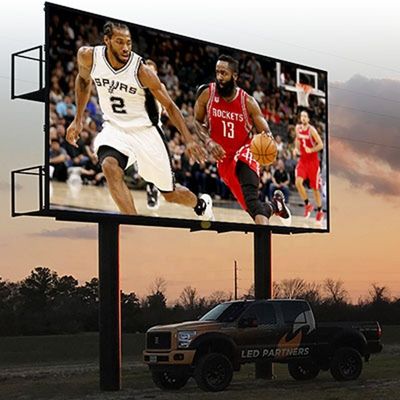

GCL P10 Outdoor Full Color LED Digital Signage Display with 140/140 Degree Viewing Angle
Product Details
Low Power Consumption
We use customized PCB and power supply, so average power consumption is less than 140W/㎡. Compared with the similar products in the market, the display saves 20% energy. The pixel pitches are P5.92P6.67P8P10P10 DIP P16(DiP)
High Brightness
Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.
High Refresh Rate
The image on the LED screen is formed perfectly. One of the reasons is that the refresh rate can reach 3,840Hz.
High Protective Grades
3 layers of high-quality conformal coating protects the driving IC and other electron components from dust and humidity. Strong signal cable brings more security and the cables look neat.
Great Gray Scale
Most LED screens from other suppliers have a low gray scale, so some of the colors can't be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 13bits ~ 16bits. It is very high so the image looks very vivid and perfect.
Product parameters
| Name | P5.92 | P6.67 | P8 | P10 | P10B | P16 |
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 |
| Pixel Pitch(mm) | 5.925 | 6.667 | 8 | 10 | 10 | 16 |
| Module Resolution | 54*54 | 48*48 | 40*40 | 32*32 | 32*32 | 20*20 |

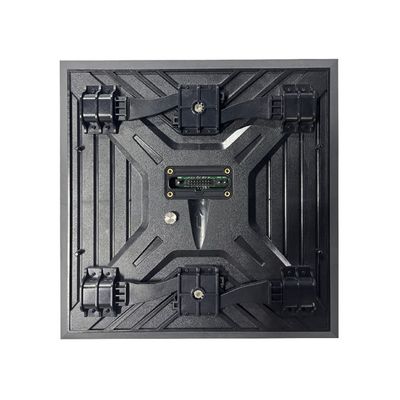

| Module Size(mm) | 320*320 | 320*320 | 320*320 | 320*320 | 320*320 | 320*320 |
| Scan Method | 1/6s | 1/6s | 1/4s | 1/2s | 1/4s | 静态 |

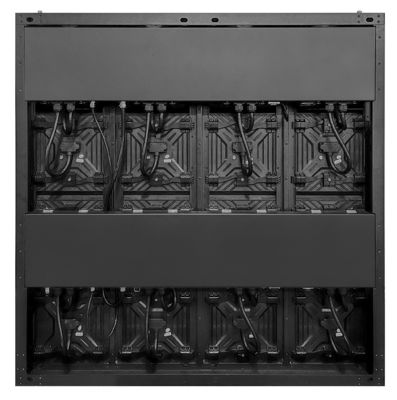

| Module Quantity | 4*3 | 4*3 | 4*3 | 4*3 | 4*3 | 4*3 |
| Cabinet Resolution | 216*162 | 192*144 | 160*120 | 128*96 | 128*96 | 80*60 |

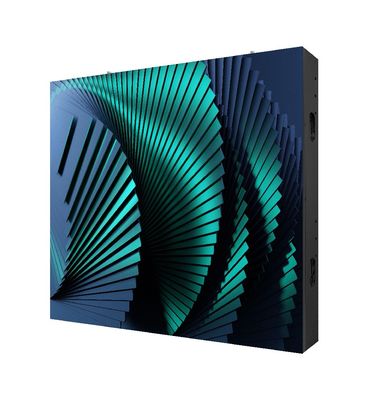

| Cabinet Size(mm) | 1280*960*100;Customizable | |||||
| Cabinet Area(㎡) | 1.2288 | |||||
| Cabinet Material | Profile Aluminum | |||||
| Cabinet Weight | 32kg | 32kg | 32kg | 32kg | 37kg | 35kg |
| Density(pixels/㎡) | 28476 | 22500 | 15625 | 10000 | 10000 | 3096 |
| Protection Level | IP65 | |||||
| Optics | ||||||
| Brightness(nits) | 6500 | 6500 | 7000 | 7000 | 10000 | 10000 |
| Calibration | Support Single-dot Calibration | |||||
| Color Temperature | 1700-9500K Adjustable | |||||
| Viewing Angle | H140°,V140° | |||||
| Light Decay Rate | <3% | |||||
| Contrast Ratio | 9000:01:00 | |||||
| Grey Scale | 13-16bit | |||||
| Max Power Consumption/㎡ | 640W | 700W | 680W | 680W | 360W | 420W |
| Average Power Consumption/㎡ | 220W | 230W | 230W | 230W | 120W | 140W |

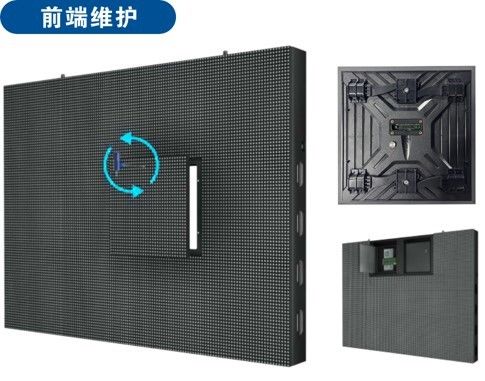

| Cabinet Maintenance | Full Front/Rear Service | |||||
| Input Voltage | AC100~240V(50-60Hz) | |||||
| Drive Mode | Constant Current Drive | |||||
| Refresh Rate | ≥3840Hz | |||||
| Frame Rate | 60Hz | |||||
| Working Temperature/Working Humidity | -20℃~+60℃/ 10%-90%RH | |||||
| Storage Temperature/Storage Humidity | -20℃~+60℃/ 10%-90%RH | |||||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | |||||
FAQ
Q1. Is GCL a manufacturer or a trading company? Manufacturer. GCL has been a professional LED screen manufacturer for more than 19 years, since 1999. Our factory covers more than 100,000 square feet and we are staffed with about 300 employees.
Q2. How long is the warranty? The standard warranty is 3 years. It could be longer upon request.
Q3.What is your payment terms? Payment terms:30% T/T deposit, 70% T/T before shipment.
Q4. What is the delivery time? Usually 12-15 working days after payment of deposit. Less than a week for our best sales because we always keep about 500 square meters in stock.
Q5. Do you provide any free spare parts in each order? Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED diod, IC, module mask, power supply, receiving card, etc.
