P1.2 P1.5 P1.8P 2.0 Wide Viewing Angle Indoor LED Display Easy Install Led Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gspark |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 640*480mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment | Pixel Pitch: | 1.5mm, P2.5 |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 800nits, 800nits | Pixel Density: | 160000 |
| Contrast Ratio: | 5000:1 | Color Depth: | 256 |
| Lifespan (hours): | 100,000 | IP Rating: | IP 34 |
| HS Code: | 8528591090 | Resolution: | 3840Hz |
| View Angle（H/V）: | H160°/V140° | Module Size: | 320*160mm |
| Warranty: | 3years | Cabinet Material: | Die Casting Alunimum |
| Viewing Angle: | H160° V140° | Refresh Rate: | 3840Hz |
| Weight: | 7.5Kg/panel | Scan Method: | 1/32S |
| Highlight: | P2.0 Indoor LED Display,Easy Install Indoor LED Display,Wide Viewing Angle Led Video Wall |
||
Product Description
P1.2mm P1.5mmP1.875 mmP2mm View Angle Fixed Indoor Led Video Wall Panel Screen Display Easy Install

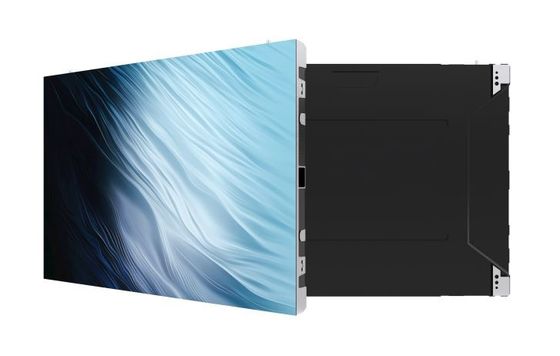

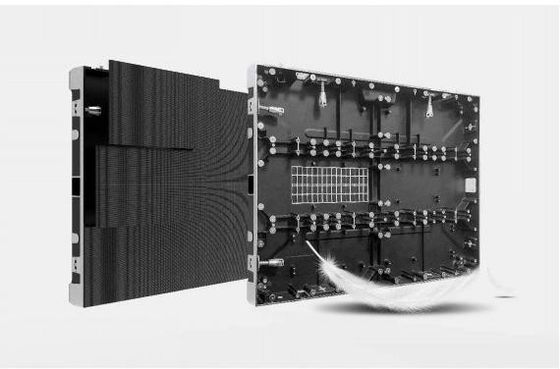

Slim And Light
Ultra slim cabinet design, cabinet weight 7 kg/pcs
High Definition And High Refresh Rate
Up to 3840Hz refresh rate, ensuring smooth playback with no flicker, ghosting, or rippling effects.
No moiré patterns.
Supporting HDMI/DVI/VGA/AV input interfaces.

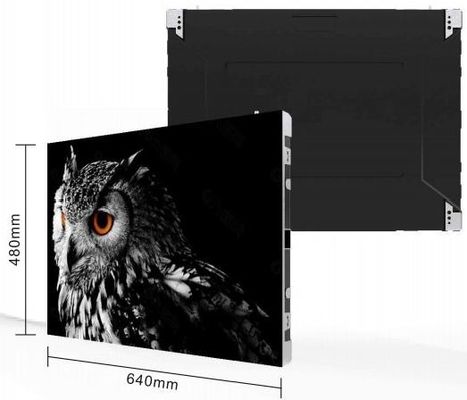

4:3 Ratio
Cabine size W640*H480mm,the screen size ratio is always 4:3 when there are the same amount of cabinets vertically and horizontally
Low Gray and High Brightness Technology
Even at low brightness levels of 100cd/㎡ to 300cd/㎡, it can perfectly present dark details, and there will be no grainy, blurry, or distorted images when viewed up close
Parameters of Gspark Series
| Product | P1.5 | P1.86 | P2 | P2.5 | P3.07 | P4 |
| Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.07mm | 4mm |
| Density(pixels/m²) | 422500 | 288906 | 250000 | 160000 | 105625 | 62500 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Brightness | 600nits | 700nits | 700nits | 700nits | 700nits | 700nits |
| Scan Method | 1/52 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
| Panel Size | 640×480mm | |||||
| Module Size | 320×160mm | |||||
| Panel Material | Die-casting Aluminum | |||||
| Panel Weight | 7 kg | |||||
| Protection Level | IP31 | |||||
| Maintenance | Full Front Service | |||||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ |
| Refresh Rate | 3840Hz | |||||
| Grey Scale | 13~16bit | |||||
| Viewing Angle | H160°,V160° | |||||
| Voltage | AC100~240V(50-60Hz) | |||||
| Working Temperature | -20℃to 60℃ | |||||
| Working Humidity | 10%-90%RH | |||||
| Color Temperature | 3000-9500K | |||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | |||||
