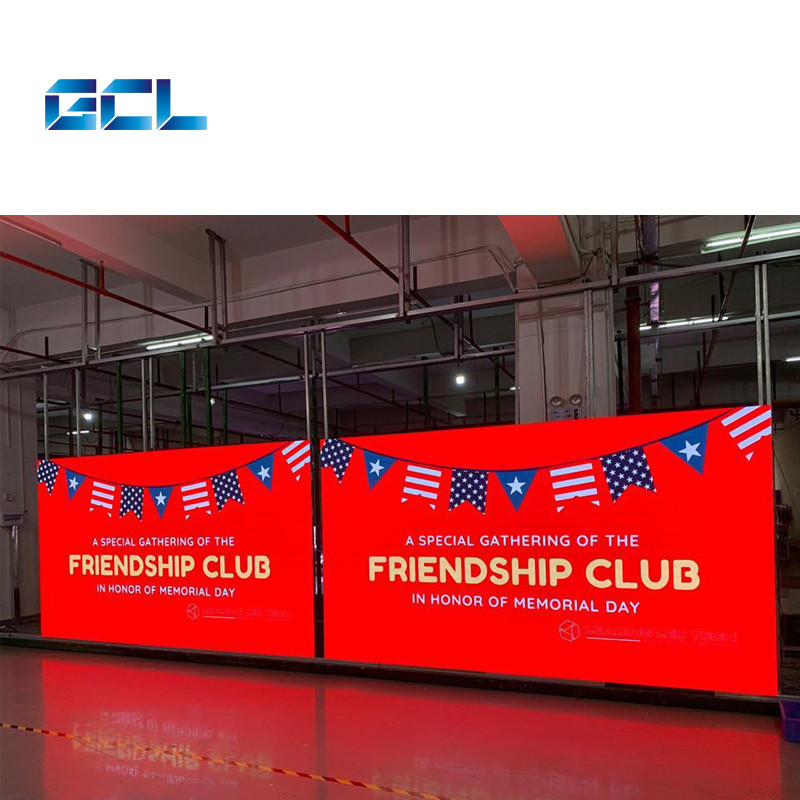

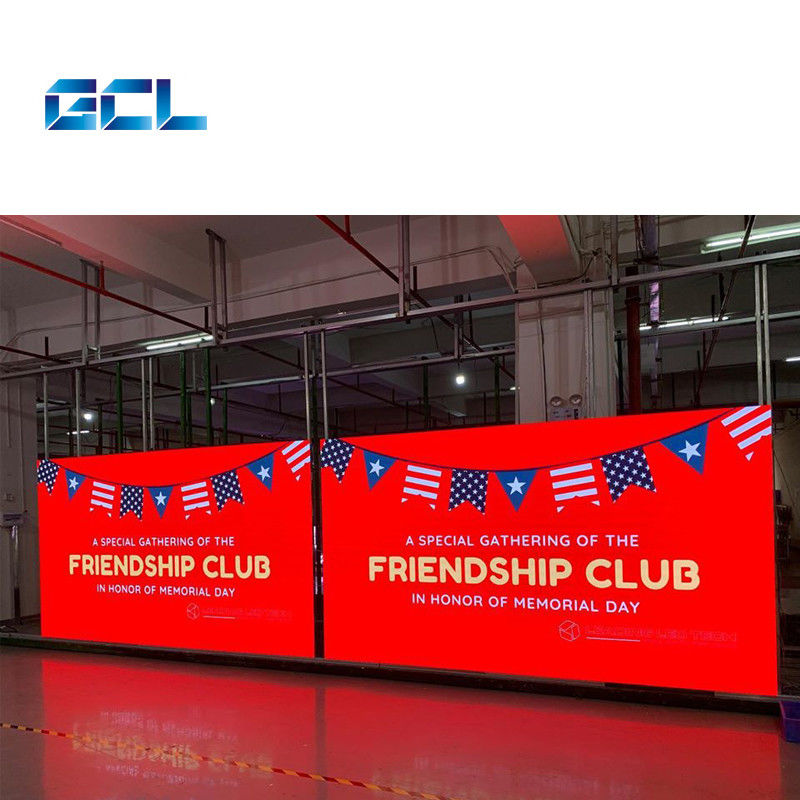

Fixed Installation P1.95mm Indoor LED Video Wall 500*1000mm 500*750mm High Definition
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gstar-II P1.953/P2.5/P2.604/P2.976 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Highlight: | Fixed Installation Indoor LED Video Wall,High Definition Indoor LED Video Wall,P1.95mm Indoor LED Video Wall |
||
|---|---|---|---|
Product Description
GCL LED Gstar II indoor500*1000mm P2.5mm high-definition indoor fixed installation LED video wall
Model Number: P1.95 P2.5 P2.6, P2.97,
Large Single Unit, Quick Installation

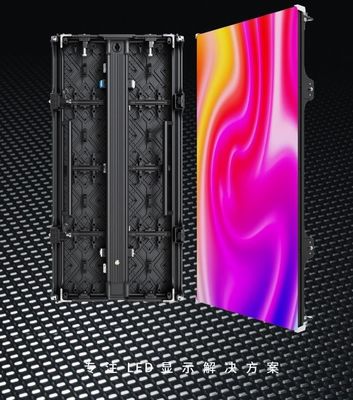

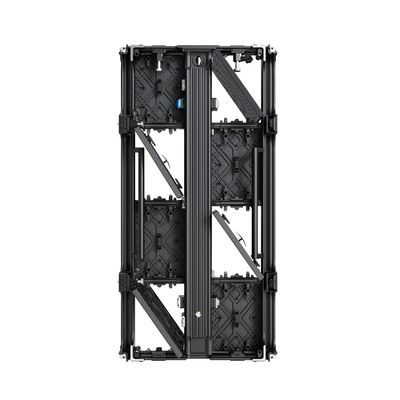

The large cabinets measuring 500×1000mm / 500×750mm reduce material costs while accelerating installation speed, resulting in lower operational costs.
Supports Full Front Maintenance
In narrow spaces or areas without designated maintenance passages, full front maintenance can be selected, allowing modules, power supplies, and HUBs to be maintained from the front.
If there is a maintenance passage, rear maintenance can be chosen for added convenience and speed.
Wall-Mountable Installation
With a lightweight design and front maintenance capability, wall-mounted installation significantly simplifies the traditional installation process, improving efficiency and effectively freeing up space for a clean and aesthetic appearance.
Stable Hard Connections for Modules
Modules are directly connected to the cabinets using HUB card instead of module cables, reducing cable constraints. The stable and secure plug-and-play connections enable quicker operations while maintaining a clean and aesthetic appearance.
Supports 90° Angle Screen Design
Supports 45° angle splicing, allowing for a 90° LED screen design.
Stable Hard Connections for Modules
Modules are directly connected to the cabinets using HUB card instead of module cables, reducing cable constraints. The stable and secure plug-and-play connections enable quicker operations while maintaining a clean and aesthetic appearance.
Product specifications:
| Gstar-II | ||||
| Parameter Name | P1.95 | P2.5 | P2.604 | P2.976 |
| Module | ||||
| LED Type | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Pitch(mm) | 1.953 | 2.5 | 2.604 | 2.976 |
| Module Resolution | 128×128 | 100×100 | 96×96 | 84×84 |
| Module Size(mm) | 250×250 | |||
| Scan Method | 1/32s | 1/25s | 1/32s | 1/28s |
| Cabinet | ||||
| Module Quantity | 2×4 | |||
| Cabinet Resolution | 256×512 | 200×400 | 192×384 | 168×336 |
| Cabinet Size(mm) | 500×1000×45 | |||
| Cabinet Area(m²) | 0.5 | |||

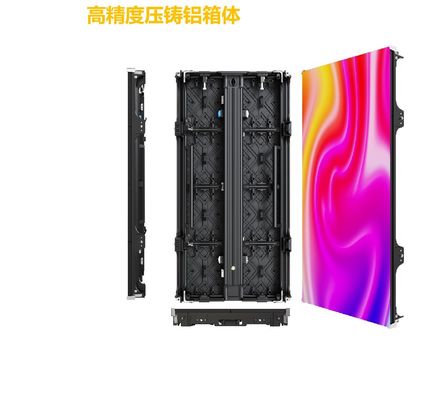

| Cabinet Material | Die-casting Aluminum | |||
| Cabinet Weight | 15kg | |||
| Density(pixels/㎡) | 262144 | 160000 | 147456 | 112896 |
| Protection Level | IP34 | |||
| Optics | ||||
| Brightness(nits) | 1000nits | 1000nits | 1200nits | 1200nits |
| Calibration | Support Single-dot Calibration | |||
| Color Temperature | 3000-9500K Manual Adjustment | |||
| Viewing Angle | H160,V140° | |||
| Light Decay Rate | 3% | |||
| Contrast | 6000:1 | |||
| Gray Scale | 13~16bit | |||
| Electric | ||||
| Max Power Consumption/㎡ | 450W | 550W | 550W | 550W |
| Average Power Consumption/㎡ | 150W | 180W | 180W | 180W |
| Cabinet Maintenance | Front&Rear Service | |||
| Input Voltage | AC100~240V(50-60Hz) | |||
| Performance | ||||
| Drive Mode | Constant Current Drive | |||
| Refresh Rate | 7680Hz | |||
| Frame Rate | 50Hz/60Hz | |||
