High Definition COB Video Wall 600*337.5mm P2.5mm P0.93mm for Indoor Display 4.2Kg/panel
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Ggalaxy |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case, Ply-wooden case |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||

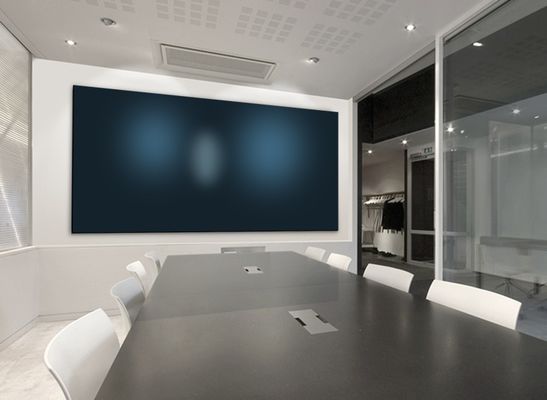

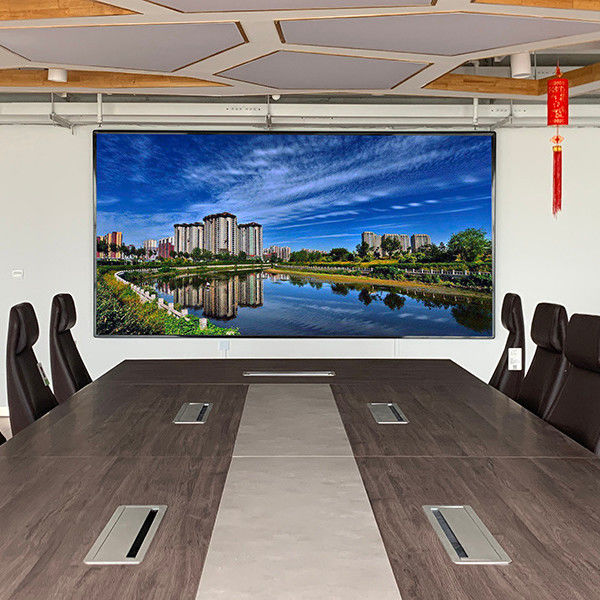

| Application: | Conference Room | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 600*337.5mm | Brightness: | 800cd/sqm |
| Module Size: | 150*168.75mm | Refresh Rate: | 3840Hz |
| Power Supply: | Meanwell | Viewing Angle: | 170H/170V |
| Cabinet Material: | Die-casting Alumium | Weight: | 4.2Kg/panel |
| IP Rate: | IP43/IP43 | Pixel Pitch: | P0.93mm P2.5mm |
| Port: | Shenzhen Port | ||
| Highlight: | Indoor Display COB Video Wall,P0.93mm COB Video Wall,P2.5mm COB Video Wall |
||
Product Description
600*337.5mm P0.9 P.125 1.5mm Indoor COB HD Video Wall
Product features:

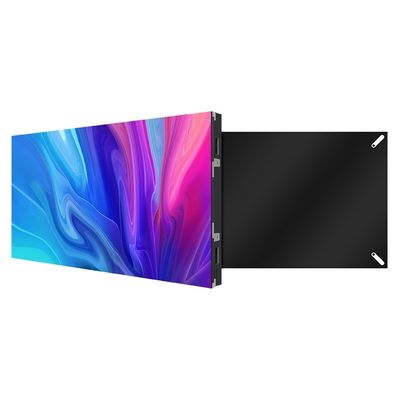

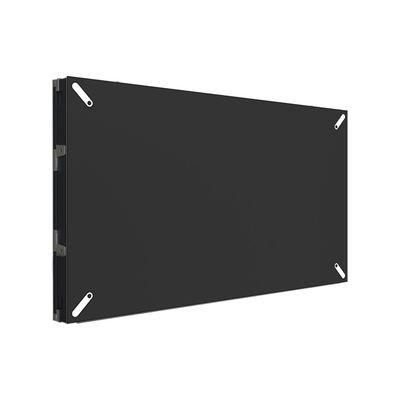

Ultra-thin, ultra-light casing:
the Box Size:600*337.5*29.2mm; Module Size:150mmX168.75mm; Single box 4.2/kg;
RGB full flip chipRGB:
Excellent hardware protection (anti-knock, waterproof, anti-static, scrubbing)；
The surface of the panel features a matte finish.Ultra-high brightness, contrast, gamut, and ink at one time；
The extinguishing screen mirror black and bright, comparable to the appearance of the LCD screen ；
Design scheme for common cathode circuits, more energy-efficient.
Supports dual power and dual card backup display.
RoHS compliant
Power consumption of 225W per square metre.
Large individual size, ultra-high resolution:
Full size layout from 75 inches to 220 inches, covering 2K, 4K, and 8K ultra high definition resolutions；
Excellent display effect:
The black field is darker and brighter, presenting a clear difference between dark black and bright white. It is 16 bits and has ultra-high contrast,
Enhance image clarity and detail；
Application scenarios:
Commercial display ,Special consumer display ,General use
Parameters of GCL COB Series:
|
Name |
P0.9 |
P1.25 |
P1.56 |
|
Module |
|
||
|
Packaging type |
Inverted COB |
||
|
Surface technology of lamp panel |
Matte matte finish |
||
|
Pixel Pitch(mm) |
0.9375 |
1.25 |
P1.5625 |
|
Module Size(mm) |
150×168.75 |
||
|
Module Resolution |
160×180 |
120×135 |
96×108 |
|
Cabinet |
|
||
|
Cabinet Resolution |
640×360 |
480×270 |
384×216 |
|
Cabinet Size(mm) |
600×337.5×29.2 |
||
|
Cabinet Area(㎡) |
0.202 |
||
|
Cabinet Material |
Profile Aluminum |
||
|
CabinetWeight |
4.2kg |
||
|
Densiy (pixels/m²) |
1137777 |
640000 |
409600 |
|
Protection Level |
IP50 |
||
|
Optics |
|
||
|
Brightness(nits) |
0-800nits |
||
|
Calibration |
Support Single-dot Calibration |
||
|
Color Temperature |
3000-10000K Adjustable |
||
|
Viewing Angle |
H170°,V170° |
||
|
ContrastRatio |
20000:1 |
||
|
Grey Scale |
16bit |
||
|
Electric |
|||
|
Max Power Consumption/㎡ |
400W |
||
|
Average Power Consumption/㎡ |
120W |
||
|
Cabinet Maintenance |
Full Front Service |
||
|
Input Voltage |
AC100~240V(50-60Hz) |
||
|
Performance |
|||
|
Drive Mode |
Constant Current Drive |
||
|
Refresh Rate |
3840Hz |
||
|
Frame Rate |
50Hz/60Hz |
||
