Outdoor 3D L-Shaped Curved Corner&Right Angle Solution P4 P5.7mm Led Display Screen Aluminum Waterproof IP65 960*960mm Outdoor Advertising Led Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | GA |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:101X116X13 cm |
| Delivery Time: | 15-20Days |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Panel Size: | 960*960 Mm | Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment |
| Function: | SDK | Pixel Pitch: | 8mm, 10mm |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 6000-10000nits | Lifespan (hours): | 100000 |
| Resolution: | 3840Hz | View Angle（H/V）: | H120°,V120° |
| Module Size: | 480*320mm | Cabinet Weight: | 29.48KG |
| Maintenance: | Front & Rear Service | Grey Scale: | 13-16 Bit |
Product Description
Outdoor 3D L-Shaped Curved Corner&Right Angle Solution P4 P5.7mm Led Display Screen Aluminum Waterproof IP65 960*960mm Outdoor Advertising Led Screen
Product Features:

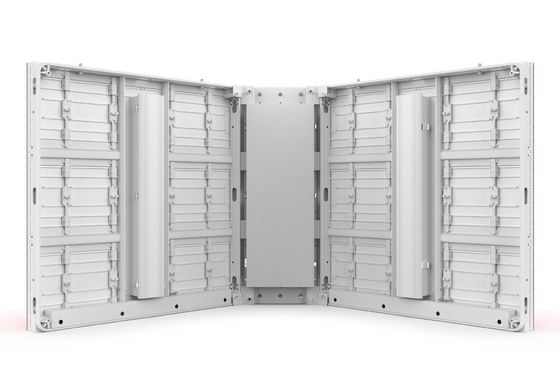

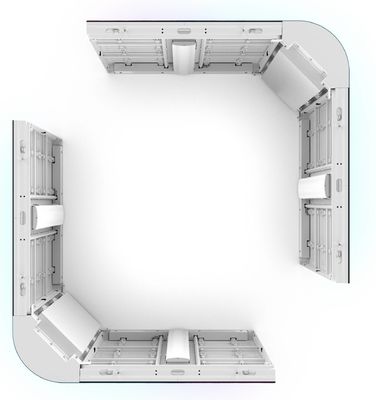

Right Angle & Radian

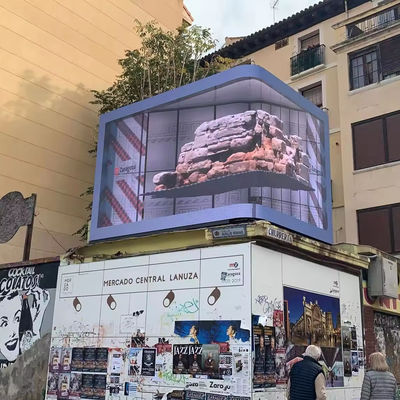

Utilizing 960960mm profile aluminum cabinets in combination with 320160mm small modules, it enables seamless L-shaped splicing to form corner configurations. Widely employed in outdoor naked-eye 3D large-screen displays.
Enhanced Energy Efficiency
The product incorporates dual-voltage power supply technology, resulting in superior energy and electricity savings. Equipped with branded gold wire lamps featuring a brightness of 10,000 nits and a power consumption of ≤330W/㎡, it helps reduce electricity costs.
Fully Enclosed Modules & Totally Waterproof Aluminum Bottom Shell Design
Boasting high-quality dust and water resistance, it ensures safety and a prolonged service life.
Customizable for Outdoor Advertising Machines
Suitable for small-scale outdoor applications such as shopping malls, gas stations, and retail outlets.
Parameters of GA P4 Series
| Product | P4 |
| Pitch | 4mm |
| Density(pixels/m²) | 62500 |
| LED Type | SMD 1921 |
| Brightness | 6000nits |
| Scan Method | 1/7 |
| Panel Size | 960×960mm |
| Module Size | 480×320mm |
| Panel Material | Profile Aluminum |
| Panel Weight | 30kg |
| Protection Level | IP65 |
| Maintenance | Front&Rear Service |
| Max Power Consumption | 650W/㎡ |
| Average Power Consumption | 210W/㎡ |
| Refresh Rate | 3840Hz |
| Grey Scale | 13-16Bit |
| Viewing Angle | H140°,V120° |
| Voltage | AC100~240V(50-60Hz) |
