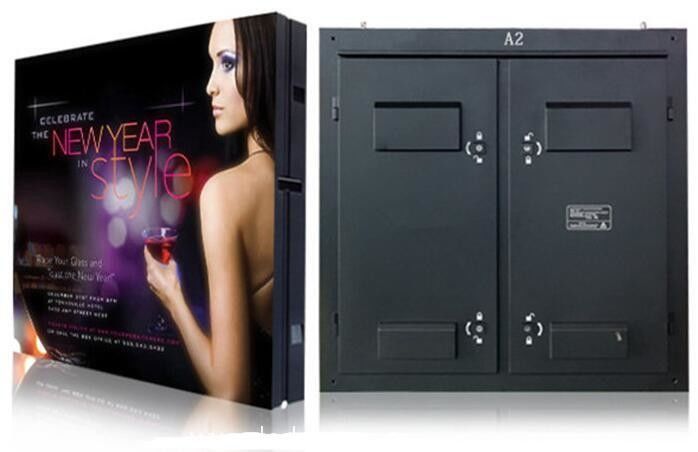

Iron Cabinet Full Color Outdoor Fixed LED Display SMD P6 Screen Naked Eye 3D Viewing
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsurface-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-22Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 256*128mm | Supplier Type: | ODM, OEM |
| Media Available: | Other | Use: | Advertising Publish |
| Function: | SDK | Specification: | Digital Poster, Video Wall |
| LED Chip: | Nationstar | Cabinet Size: | Customize |
| Brightness: | 6500nits | Scan Mode: | 1/4scan |
| Usage: | Advertising | Refresh Rate: | 1920Hz-3840Hz |
| Viewing Angle: | H120 V120 | Cabinet Material: | Iron |
| Certificate: | CE ROHS FCC | Input Voltage: | AC100~240V 50 /60 HZ |
| Pixel Pitch: | P3.91 P4.8 P5.2 P6 P8 P10 | Port: | Shenzhen |
| Highlight: | Iron Cabinet Outdoor Fixed LED Display,Full Color Outdoor Fixed LED Display,Iron Cabinet Fixed LED Screen |
||
Product Description
Iron Cabinet Full Color Outdoor SMD P3.91 P4.81P5.92 P6 LED Display for Naked-Eye 3D Viewing
Low Power Consumption
We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, the display saves 20% energy. The pixel pitches areP3.91 P4.81P5.92 P6
High Brightness
Gold bonding wire SMD LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.
High Refresh Rate
The image on the LED screen is formed perfectly. One of the reasons is that the refresh rate can reach 3,840Hz.
High Protective Grades

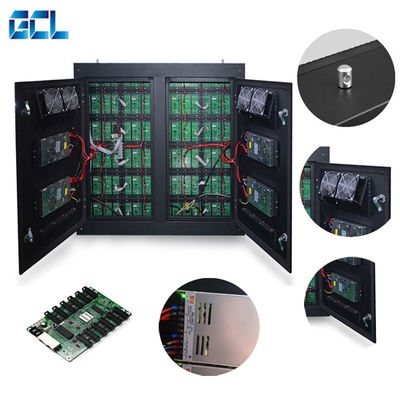

3 layers of high-quality conformal coating protects the driving IC and other electron components from dust and humidity. Strong signal cable brings more security and the cables look neat.
Great Gray Scale
Most LED screens from other suppliers have a low gray scale, so some of the colors can't be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 13bits ~ 16bits. It is very high so the image looks very vivid and perfect.
Stable Outdoor Fixed Installation
The LED display cabinet is made of steel material or aluminum material. We adopt the best materials and great crafts to manufacturing this LED display. Therefore, the LED screen functions are very stable in outdoor scenes.
Visual Performance
High Contrast: The contrast ratio of the LED screen gives sharp image quality.
High Brightness: The brightness of the LED display can be up to 10,000nits. Even if the screen is facing the direct sunlight, the image still looks clear.
Stable Performance, Reliable Quality
We have sold many LED screens to different countries and regions like America, Europe, Middle East, Africa, etc.
Many of our screens have been working for more than 5 years, and they are still working properly. Our LED screens are a great solution for outdoor advertising billboards.
Application Fields

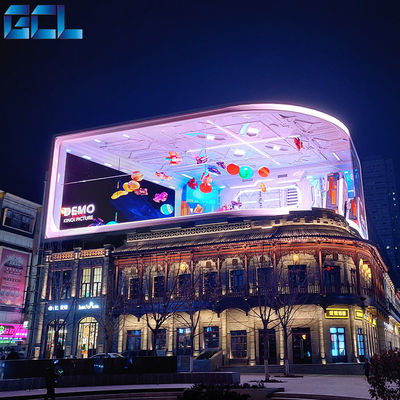

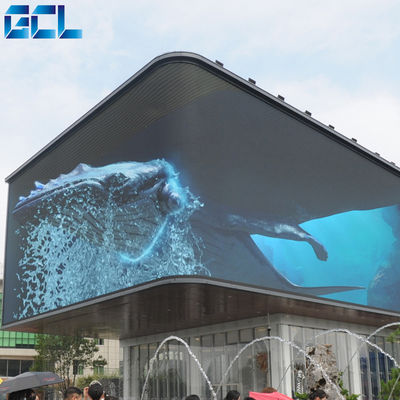

Naked-Eye 3D Advertising
Outdoor Advertising
DOOH
LED Truck
Parameters of Gsurface-II Series
| Name | P3.91 | P4.81 | P5.2 |
| Module | |||
| LED Type | SMD1921 | SMD1921 | SMD1921 |
| Pixel Pitch(mm) | 3.90625 | 4.8077 | 5.208 |
| Module Resolution | 64*64 | 52*52 | 48*48 |
| Module Size(mm) | 250*250 | 250*250 | 250*250 |
| Scan Method | 1/16s;1/8s | 1/7s | 1/8s |
| Cabinet | |||
| Module Quantity | 4*4 | 4*4 | 4*4 |
| Cabinet Resolution | 256*256 | 208*208 | 192*192 |
| Cabinet Size(mm) | 1000*1000*100;Customizable | ||
| Cabinet Area(㎡) | 1 | ||
| Cabinet Material | Profile Aluminum | ||
| Density(pixels/㎡) | 65536 | 43264 | 36864 |
| Protection Level | IP65 | ||
| Optics | |||
| Brightness(nits) | 5500; 6500 | 5500 | 5500 |
| Calibration | Support Single-dot Calibration | ||
| Color Temperature | 1700-9500K Adjustable | ||
| Viewing Angle | H140°,V140° | ||
| Light Decay Rate | <3% | ||
| Contrast Ratio | 9000:01:00 | ||
| Grey Scale | 13-16bit | ||
| Electric | |||
| Max Power Consumption/㎡ | 680W; 880W | 640W | 640W |
| Average Power Consumption/㎡ | 230W; 290W | 210W | 210W |
| Cabinet Maintenance | Front Service | ||
| Input Voltage | AC100~240V(50-60Hz) | ||
| Performance | |||
| Drive Mode | Constant Current Drive | ||
| Refresh Rate | ≥3840Hz | ||
| Frame Rate | 60Hz | ||
| Working Condition | |||
| Working Temperature/Working Humidity | -20℃~+60℃/ 10%-90%RH | ||
| Storage Temperature/Storage Humidity | -20℃~+60℃/ 10%-90%RH | ||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||
