High Quality Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsurface II |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | OUTDOOR | Type: | LED |
|---|---|---|---|
| Color: | FULL COLOR | Panel Size: | 1000*1000mm |
| Usage: | Outdoor Waterproof | Display Function: | Animation |
| Brightness: | 5500-6000nits | Protection Level: | IP65 |
| Viewing Angle: | 140/140 Degree | Refresh Rate: | 1920Hz-3840Hz |
| Cabinet Material: | Iron | Pixel Pitch: | P3.91\P4.81mm |
| Port: | Shenzhen | ||
Product Description

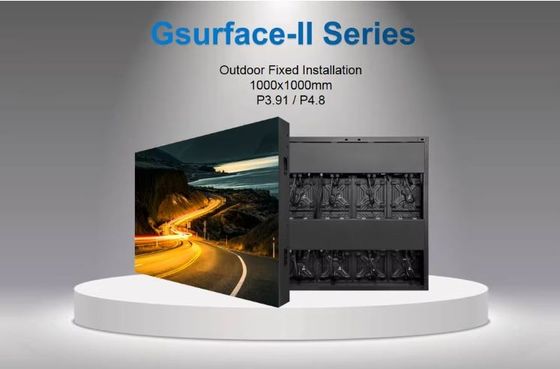

Gsurface-II Series Features:
Available in pixel pitches of P2.976 / P3.91 / P4.81 / P5.2mm, The default material is sheet metal and iron cabinets, making it the top choice for cost-effective outdoor LED displays!

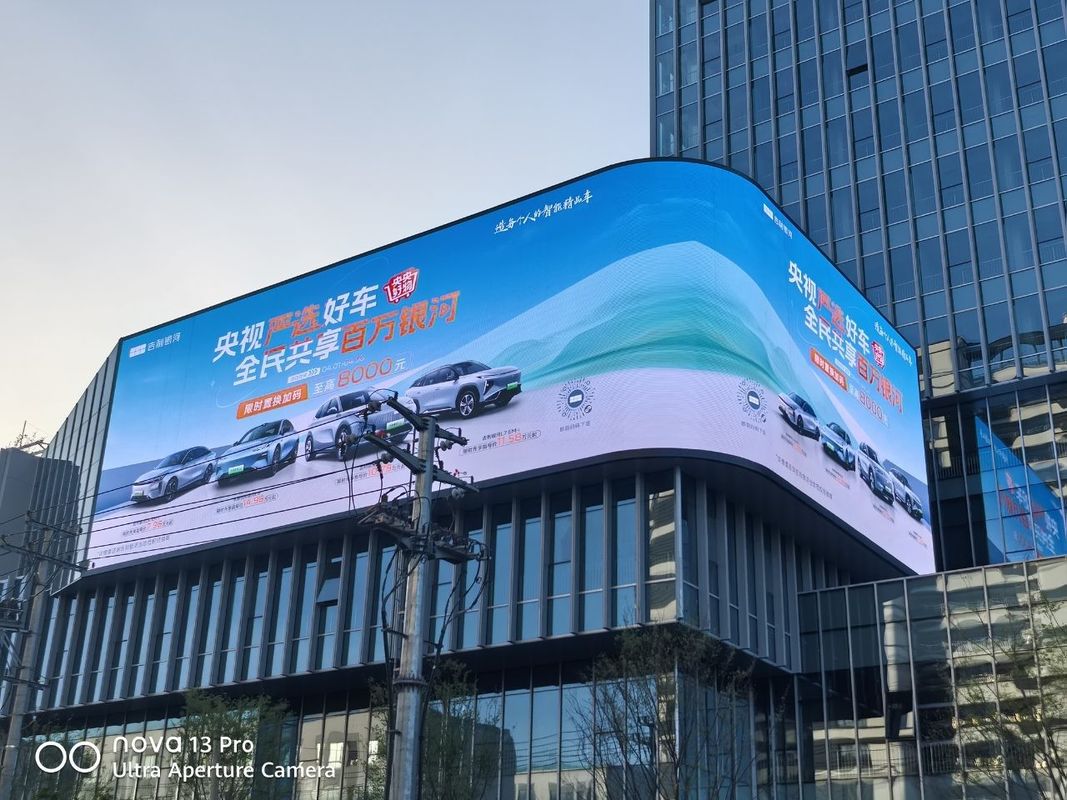

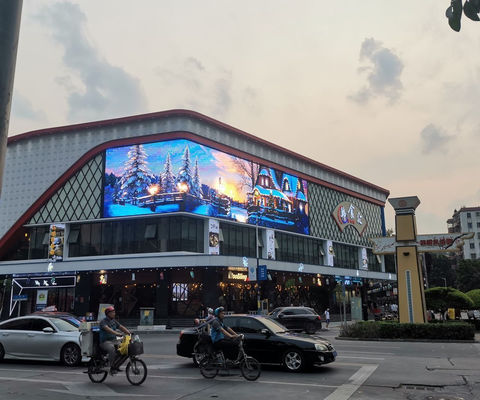

Supports 90° curved screen design, widely used in outdoor billboards, airport highway advertisements, and commercial district naked-eye 3D displays.
Supports 90° Angle & Curved Screen Design:
45°edge module, right angle splicing,Curve shaped frame splicing supported,Joint gap<0.01mm；
Dual Protection Design:
Front waterproof mask and rear waterproof back cover provide dual protection, achieving IP65 waterproof rating.

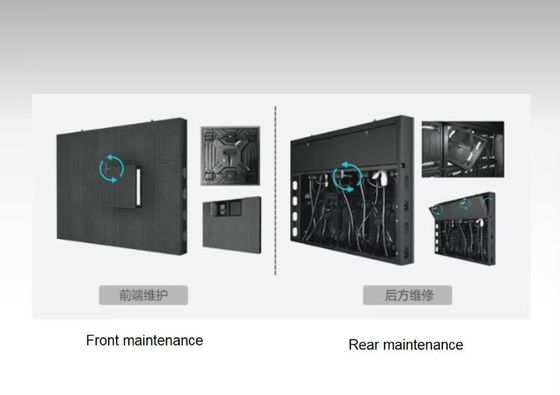

Front & Rear Maintenance:
Modules feature front maintenance holes and rear locking knobs. Easily replace modules from the front using the included hexagon screw tool.
Parameters of Gsurface-II Series:
| D/C | LED Screen |
| Package | SMD, DIP |
| Type | LED Screen Manufacturer |
| Pitch | P3.91mm4.8mm |
| Place of Origin | Shenzhen |
| Product name | Gsurface-II Series |
| Application | Outdoor Advertisement |
| Panel Size | 1000x1000mm |
| Module Size | 250x250mm |
| Panel Weight | 32kg |
| Protection Level | IP65 |
| Brightness | 5500nits-6000nits |
| Average Power Consumption | 200W/㎡ |
| Viewing Angle | H: 140° V: 120° |
| Panel material | Profile Aluminum |
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |
