Transparent 60% P7.9-10.4\P15.625mm LED Advertising Screen With See Through Glass For Shopping Mall

Brand Name:	GCL
Model Number:	Gmesh
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	plywood,flight case,paper board

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

Color:

Full Color

Panel Size:

500*1000 Mm

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:

Photo, Other, Video

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment, Advertising Media, Real Estate,

Pixel Pitch:

P8.3-10.4

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

6000nits, 6,000nits

Pixel Density:

11,520

Contrast Ratio:

500:1

Color Depth:

Lifespan (hours):

100,000

IP Rating:

HS Code:

8528591090

Resolution:

2k-4k

View Angle（H/V）:

H120°/V120°

Module Size:

250*500mm

Material:

Die-casting Aluminum

LED Type:

SMD2727

Warranty:

3 Years

Scan Method:

Refresh Rate:

3840 HZ

Weight:

Grey Scale:

16 Bits

Maintenance:

Front & Rear Service

Supply Ability:

2000 Square Meter/Square Meters per Month

Highlight:

Transparent LED Advertising Screen

See Through Glass LED Advertising Screen

Shopping Mall Outdoor Advertising LED Display

Product Description

Transparent 60% P7.9-10.4P15.625mm LED Advertising Screen With See Through Glass For Shopping Mall

Product Description

Outdoor GmeshP8.3-10.4P15.625, using full die cast aluminum box, box size 500 * 1000 * 45mm, module size 250 * 500mm;

The refresh rate is as high as 3840Hz, and the white balance brightness is ≥ 8000cd/㎡;

Support single point correction, color temperature 6500-9500K manually adjustable;
The minimum average power consumption is 220W;

Visual angles H140 °, V120 °;
Can be fully maintained before/after.
The product has a protection level of IP65 before and after, suitable for various weather conditions

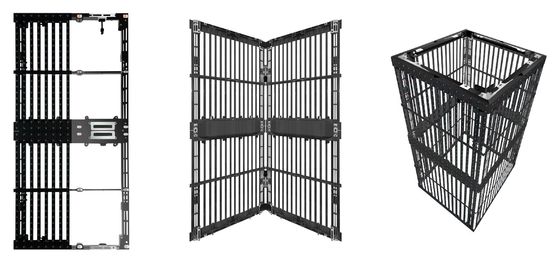

Seamless 90 Degree Splicing

curve cabinet is fixed to the body frame fixed firmware process is simple, smart lock system,easy to operate.

IP65 Protection Level

High quality Seetronic, Reunion, Neutric brand aviation plug are available.Waterproof protection IP65 apply to both outdoor fixed and rental projects.

Front&Back Maintenance

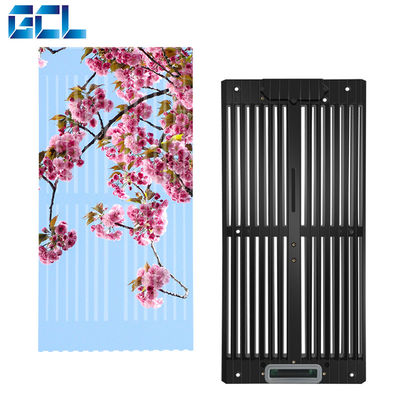

9KG Die-casting aluminum material cabinet 500*1000mm,ultra light and slim.The whole cabinet can be removed easily from the wall.

Product Presentation:

Product	P7.8-3.9	P10	P16-A	P16-B	P16-C
Pitch	7.8-3.9mm	10.4mm	15.625mm	15.625mm	15.625-31.25mm
Density(pixels/m²)	32768	9216	4096	4096	2048
LED Type	SMD1921	SMD2727	SMD3535	DIP346	DIP346
Brightness	5500nits	5500nits	6000nits	10000nits	10000nits
Scan Method	1/8	1/3	Static	Static	Static
Panel Size	500×1000mm
Module Size	250×500mm
Panel Material	Die-casting Aluminum
Panel Weight	9kg	9kg	9kg	10.5kg	10.5kg
Protection Level	IP65
Maintenance	Front&Rear Service
Max Power Consumption	680W/㎡	680W/㎡	680W/㎡	350W/㎡	350W/㎡
Average Power Consumption	220W/㎡	220W/㎡	220W/㎡	110W/㎡	110W/㎡
Refresh Rate	3840Hz
Grey Scale	16bit
Viewing Angle	H140°,V120°	H140°,V120°	H140°,V120°	H100°,V50°	H100°,V50°
Voltage	AC100~240V(50-60Hz)
Working Temperature	‘-30℃ to 60℃
Working Humidity	10%-90%RH
Color Temperature	3000-9500K
Certifications	CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
