Waterproof Outdoor Advertising LED Display with Customizable P16 LED Panel Size 640*960mm
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gpro P2.5/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:120X980X50 cm |
| Delivery Time: | 15-22Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| LED Trpe: | SMD 1415 | Brightness: | 6000nits |
|---|---|---|---|
| Panel Weight: | 23.5Kg | Protection Level: | IP 65 |
| Panel Size: | 640*960mm | Module Size: | 320*320mm |
| Highlight: | Customizable Outdoor Advertising LED Display,P16 Outdoor Advertising LED Display,Waterproof Outdoor Advertising LED Display |
||
Product Description
Outdoor HD Small-Pitch Advertising Display & Naked-Eye 3D Screen: Why Gpro P2.5mm is Your Top Choice
When it comes to outdoor high-definition advertising displays or captivating naked-eye 3D screens, the Gpro P2.5mm LED display stands out as a game-changer. As the first domestically developed outdoor small-pitch LED product with a die-cast aluminum base and large modular design, Gpro redefines reliability, clarity, and flexibility for outdoor applications.
Why Choose Gpro P2.5mm?
Innovative Large-Module Design:
The die-cast aluminum cabinet (640×960mm) combines ruggedness with ultra-lightweight portability—only 17kg per panel. This simplifies installation, reduces structural load, and ensures long-term stability.
Pioneering Small-Pitch Performance:
As China’s first outdoor P2.5mm small-pitch LED display, Gpro delivers razor-sharp visuals perfect for close-up viewing. With pixel pitches ranging from P2.5mm to P16mm, customize your screen for any scenario—from detailed ads to large-scale billboards.
Unmatched Brightness & Clarity:
Equipped with premium LED beads, Gpro achieves 6,000 nits (SMD) or 10,000 nits (DIP) brightness, ensuring vibrant visuals even in direct sunlight. Whether showcasing dynamic ads or immersive 3D content, every detail pops.
Energy Efficiency & Silent Operation:
Say goodbye to bulky AC systems! Gpro’s advanced natural heat dissipation (thanks to its full aluminum structure) cuts energy costs by up to 40% and operates silently—ideal for noise-sensitive areas.
Built for the Outdoors:
With IP65 protection, Gpro withstands rain, dust, and extreme temperatures. Its corrosion-resistant design guarantees year-round performance with minimal maintenance.

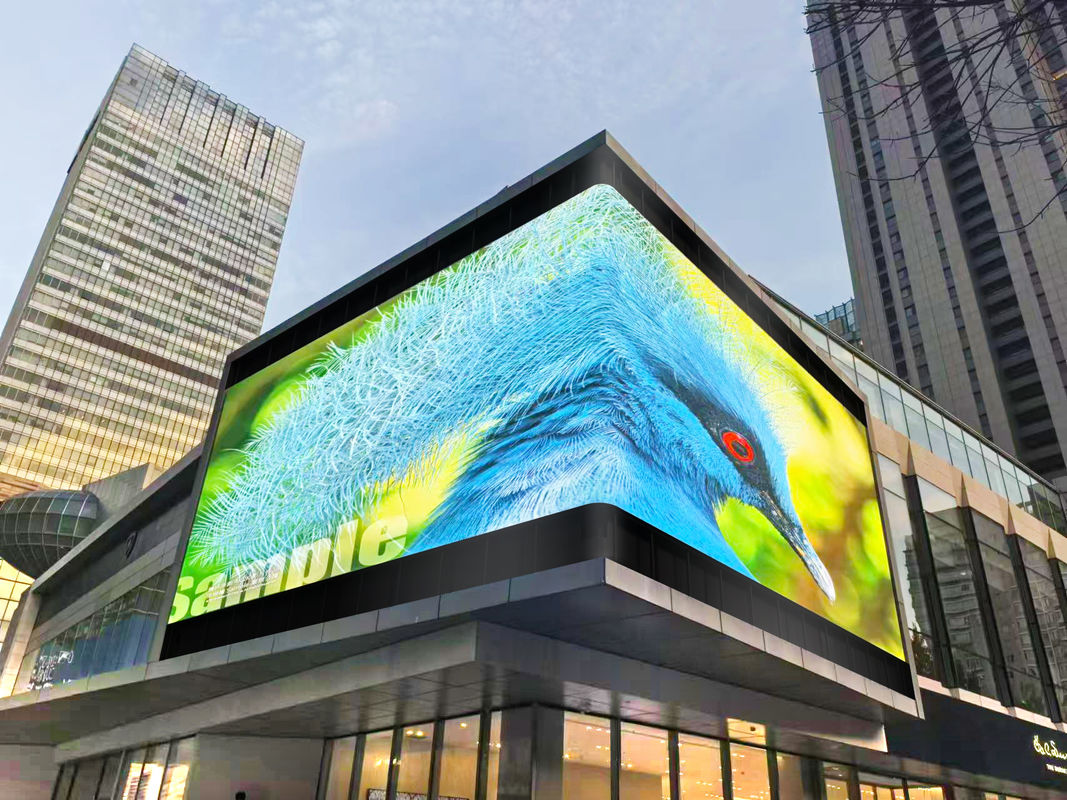

Perfect for: Outdoor advertising, retail hubs, stadiums, transportation terminals, and immersive 3D campaigns.
Gpro P2.5mm isn’t just a display—it’s a future-ready investment. Elevate your outdoor visuals with unmatched durability, flexibility, and eye-catching brilliance.
| Product | P2.5 | P4 | P5.9 | P8 | P10 | P10D | P16 |
| Pitch | 2.5mm | 4mm | 5.92mm | 8mm | 10mm | 10mm | 16mm |
| Density(pixels/m²) | 160000 | 62500 | 28476 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 |
| Brightness | 6000nits | 6000nits | 7000nits | 7000nits | 7000nits | 8000nits | 8000nits |
| Scan Method | 1/16 | 1/10 | 1/6 | 1/4 | 1/2 | 1/4 | 静态 |
| Panel Size | 640×960mm | ||||||
| Module Size | 320×320mm | ||||||
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight | 23.5Kg | 23.5Kg | 19Kg | 19Kg | 19Kg | 21Kg | 21Kg |
| Protection Level | IP65 | ||||||
| Maintenance | Front/Rear Service | ||||||
| Max Power Consumption | 650W/㎡ | 720W/㎡ | 720W/㎡ | 720W/㎡ | 720W/㎡ | 350W/㎡ | 350W/㎡ |
| Average Power Consumption | 210W/㎡ | 240W/㎡ | 240W/㎡ | 240W/㎡ | 240W/㎡ | 110W/㎡ | 110W/㎡ |
| Refresh Rate | 3840Hz | ||||||
| Grey Scale | 13-16bit | ||||||
| Viewing Angle | H160°,V140° | H100°,V50° | |||||
| Voltage | AC100~240V(50-60Hz) | ||||||
| Working Temperature | -30℃ to 60℃ | ||||||
| Working Humidity | 10%-90%RH | ||||||
| Color Temperature | 3000-9500K | ||||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||||
