GCL Customized Outdoor Mobile Advertising Truck Van Trailer P6 6500nits Brightness
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsurface-III |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 1280*960mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other, Video |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Restaurant & Hotel Supplies, Education, Medical Treatment | Pixel Pitch: | 10mm, P10 |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 6000nits, 6500nits | Pixel Density: | 10000 |
| Contrast Ratio: | 5000:1 | Color Depth: | 256 |
| Lifespan (hours): | 100,000 | IP Rating: | IP65 |
| HS Code: | 8528591090 | Resolution: | 2K-4K |
| View Angle（H/V）: | H160°/V120° | Name: | P10 Outdoor Truck Led Display |
| Display Function: | Animation | Protection Level: | IP65 |
| Warranty: | 3 Years | Control System: | Novastar |
| Refresh Rate: | 3840Hz | Panel Material: | Profile Aluminum |
| Maintenance: | Front&Rear Service | Port: | Shenzhen |
| Highlight: | Customized Mobile Advertising Truck,Outdoor Mobile Advertising Truck,6500nits Brightness Outdoor Advertising Screen |
||
Product Description
Product Details

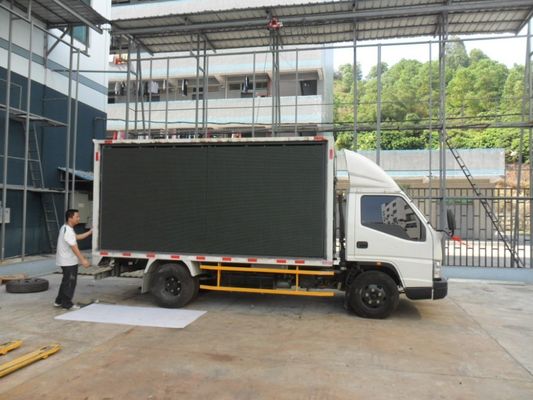

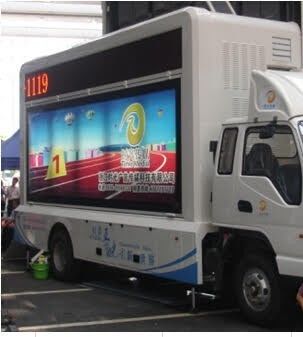

GCL Customized P10 Outdoor Truck Led Display
| Product | P5.92 | P6.67 | P8 | P10 |
| Pitch | 5.92mm | 6.67mm | 8mm | 10mm |
| Density (pixels/㎡) | 28476 | 22477 | 15625 | 10000 |
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Brightness | 6000nits | 6000nits | 6000nits | 6500 nits |
| Scan Method | 1/6 | 1/6 | 1/4 | 1/2 |
| Cabinet Size | W1280*H960*T100mm (Standard) W1280*H640*T100mm W640*H960*T100mm W640*H640*T100mm |
|||
| Module Size | 320*320mm | |||
| Cabinet Material | Profile Aluminum | |||
| Cabinet Weight | 35.5kg | 35.5kg | 35.5kg | 35.5kg |
| Protection Level | IP65 | |||
| Cabinet Maintenance | 100% Front & Rear | |||
| Max Power Consumption | 750 w/㎡ | 750 w/㎡ | 750 w/㎡ | 750 w/㎡ |
| Average Power Consumption | 260 w/㎡ | 260 w/㎡ | 260 w/㎡ | 260 w/㎡ |
| Refresh Rate(Hz) | 2880Hz | 3840Hz | 3840Hz | 3840Hz |
| Grey Scale | 65536 | |||
| Viewing Angle | H140°, V140° | |||
| Voltage | AC100-240V (50-63HZ) | |||
Why Choose Us?
Shenzhen GCL Electronics CO.,Ltd, founded in 1999 with the registered capital of 10 million dollars, has been a professional manufacturer of LED screen for more than 21 years. GCL is a high-tech enterprise which integrates researching, development,manufacturing, engineering, installation, sales and aftersales services. Headquartered in Shenzhen, China.GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 30 high-speed production machines with high accuracy and more than 10 modern assembly lines. The annual capacity of GCL is over two hundred millions USD and it has been granted with more than ten LED application products-related patents and certifications in compliance with the ISO9001, ISO1400 and ISO18001 standards. Our products have also been certified with multiple standards, including EMC, CE, ROHS, CCC, FCC, ISO. GCL has finished more than 10,000 led screen and led lighting projects all over the world, including the international government projects in 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc.
Want to Know more details about this product
