Outdoor Fixed LED Advertising Screen High Resolution LED Billboard Sign
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gpro |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-22Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor, Outdoor Fixed Led Display | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 640*960mm | Brightness: | 10000nit |
| Module Size: | 320mm*320mm | Warranty: | 3years |
| Certificate: | CE ROHS FCC CCC ISO9001 | Scan Mode: | 1/3 |
| Pixel Pitch: | P4 P5.9 P8 P10 | Port: | Shenzhen |
| Highlight: | Outdoor LED Advertising Screen,Fixed LED Advertising Screen,High Resolution Outdoor Advertising Screen |
||
Product Description
Outdoor Fixed Led Display P2 P4 P6 P8 P10 P16 Panel for Outdoor Advertising Solutions
Products Description
Gpro series - Outdoor led screenF ixed Led display:
-1. Highly customized for outdoor IP65 fixed installation projects;

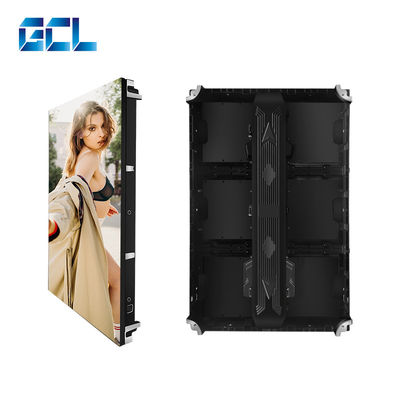

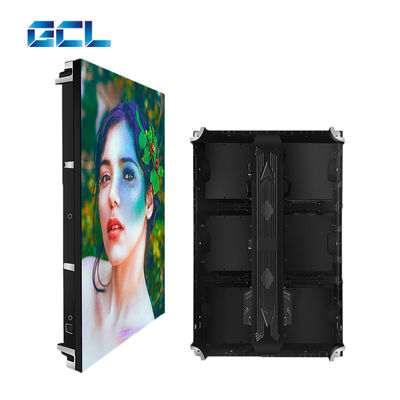

-2. Front & Back maintenance cabinet, 640x960mm die-casting aluminum cabinet ;
-3. Good heat dissipation of aluminum sealed modules, fan-less & noiseless ;
-4. Very weight light of about 16kg/cabinet, save 47% weight than normal steel case ;
-5. Energy saving environment friendly, SMD save 30%, DIP save 50% ;
-6. Design is stable and simple, No Hub card, more stable.
IP65 front Water proof
High protection grade of IP65 guarantees,Durability, Reliability, Anti-ultraviolet and Steady.
Super light weight
Die-casting Aluminum case, save 47% weight than normal case, it means saving your transportation and labor installation cost greatly ;
Super wide angle
Wide Viewing Angle can achieve to Vertical viewing 150 Horizontal viewing 120.
High Resolution
Fine pixel pitches form high resolution, which can capture and hold the attention of passerby.
Visual Performance
High contrast: The contrast ratio of the LED screen gives a sharp image quality.
High brightness: The brightness of the LED Display can be up to 10,000 nits. Even the screen is facing directly sunlight, the image still looks clear.
Parameters of Gpro Series
| Product | P4 | P8 | P10 | P10D |
| Pitch | 4mm | 8mm | 10mm | 10mm |
| Density(pixels/m²) | 62500 | 15625 | 10000 | 10000 |
| LED Type | SMD1921 | SMD2727 | SMD2727 | DIP346 |
| Brightness | 6000nits | 7000nits | 7000nits | 8000nits |
| Scan Method | 1/10 | 1/4 | 1/2 | 1/4 |
| Panel Size | 640×960mm | |||
| Module Size | 320×320mm | |||
| Panel Material | Die-casting Aluminum | |||
| Panel Weight | 23.5Kg | 19Kg | 19Kg | 21Kg |
| Protection Level | IP65 | |||
| Maintenance | Front/Rear Service | |||
| Max Power Consumption | 720W/㎡ | 720W/㎡ | 720W/㎡ | 350W/㎡ |
| Average Power Consumption | 240W/㎡ | 240W/㎡ | 240W/㎡ | 110W/㎡ |
| Refresh Rate | 3840Hz | |||
| Grey Scale | 13-16bit | |||
| Viewing Angle | H160°,V140° | H100°,V50° | ||
| Voltage | AC100~240V(50-60Hz) | |||
| Working Temperature | -30℃ to 60℃ | |||
| Working Humidity | 10%-90%RH | |||
| Color Temperature | 3000-9500K | |||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | |||
