High Performance Gsurface V P3.9 P4.81 P6.25 P7.81 P10.4 Outdoor Digital Advertising Board For Commercial Use
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsurface V |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Delivery Time: | 7-20 days |
|
Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 1000*1000 Mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Datasheet, Photo, EDA/CAD Models, Other, Video |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment | Pixel Pitch: | 3.91mm, 4.81mm,6.25mm,7.81mm,10mm, |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 6000-10000nits | Pixel Density: | 10000 |
| Contrast Ratio: | 9000:1 | Color Depth: | 256 |
| Lifespan (hours): | 100000 | IP Rating: | IP65 |
| HS Code: | 8528591090 | Resolution: | 3840Hz |
| View Angle（H/V）: | H120°,V120° | Module Size: | 480*320mm |
| Cabinet Material: | Alumium | LED Type: | SMD1921 ,SMD2727 |
| After-sales Service Provided: | 3 Years | Scan Method: | 1/2 |
| Cabinet Weight: | 29.48KG | Maintenance: | Front & Rear Service |
| Grey Scale: | 13-16 Bit | ||
| Highlight: | P4.81 Outdoor Digital Advertising Board,P6.25 Outdoor Digital Advertising Board,P3.9 Outdoor Digital Advertising Board |
||
Product Description

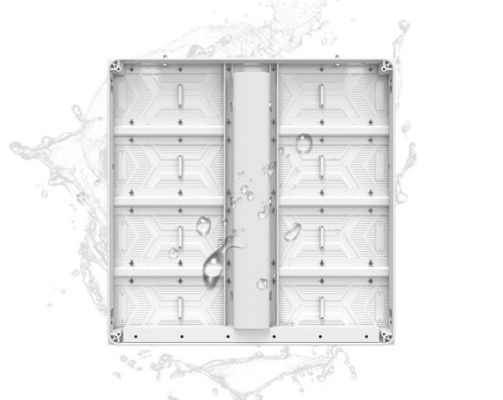

Fully enclosed module with excellent waterproofing:
It matches professional waterproof enclosures, waterproof modules, and waterproof power boxes, with an IP65 protection rating, suitable for installation in various outdoor weather conditions.
Low power consumption, high performance:
Minimum power consumption of 200W, stable operation 24 hours a day, with a module lifespan of up to 100,000 hours.

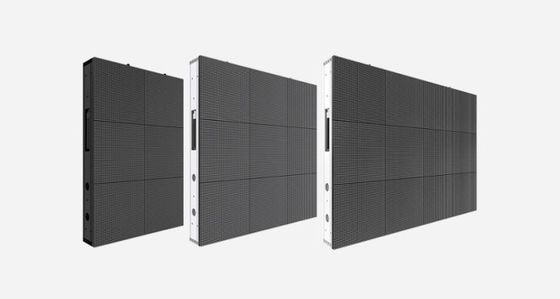

Multiple box options are available:
The aluminium profile box is lightweight, weighing 29kg. The standard box measures 1000×1000mm, with custom sizes available for 1000×750mm and 1000×500mm boxes.
Different boxes can be installed in a mixed arrangement:
Products can be flexibly matched according to project size requirements, suitable for various installation spaces, saving on inventory costs.
Supports front and rear maintenance for quick installation:
Convenient maintenance and installation without complete disassembly; modules can be removed in just 2 seconds and can be installed or taken out from both the front and rear, making bi-directional maintenance easier.
Corner and Right Angle Assembly:
Designed with a 45-degree sloping base, it can be assembled at angles; the P6.67 to P10 models can be paired with seamless corner designs to create a naked-eye 3D large screen.
Parameters of GsurfaceV Series:
| Name | P3.91 | P4.81 | P6.25 | P7.81 | P10.4 |
| Module | |||||
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 3.91 | 4.81 | 6.25 | 7.81 | 10.4 |
| Module Resolution | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 |
| Module Size(mm) | 500*250 | 500*250 | 500*250 | 500*250 | 500*250 |
| Scan Method | 1/16s | 1/13s | 1/6s | 1/4s | 1/2s |
| Cabinet | |||||
| UnitResolution | 2*4 | 2*4 | 2*4 | 2*4 | 2*4 |
| Cabinet Resolution | 256*256 | 208*208 | 160*160 | 128*128 | 96*96 |
| Cabinet Size(mm) | 1000×1000×78 Customizable | ||||
| Cabinet Area(m²) | 1 | ||||
| Cabinet Material | Profile Aluminum | ||||
| Cabinet Weight | 29kg | ||||
| Density (pixels/m²) | 65536 | 43264 | 25600 | 16384 | 9216 |
| Protection Level | IP65 | ||||
| Optics | |||||
| Brightness(nits) | 5500 | 5500 | 6000 | 6500 | 6500 |
| Calibration | Support Single-dot Calibration | ||||
| Color Temperature | 1000-9500K Adjustable | ||||
| Viewing Angle | H120°,V120° | H120°,V120° | H120°,V120° | H120°,V120° | H100°,V50° |
| Light Decay Rate | <3% | ||||
| Contrast Ratio | ≥9000:1 | ||||
| Grey Scale | 13-16bit | ||||
| Electric | |||||
| Max Power Consumption/m² |  600W |
600W | 680W | 700W | 700W |
| Average Power Consumption/m² | 200w | 200W | 220W | 240W | 240W |
| Cabinet Maintenance | Full Front/Rear Service | ||||
| Input Voltage | AC96~264V(50-60Hz) | ||||
| Performance | |||||
| Drive Mode | Constant Current Drive | ||||
| Refresh Rate | ≥3840Hz | ||||
| FrameRate | 60Hz | ||||
