Full Color Outdoor Advertising Screen Waterproof High Strength Billboard

Full Color Outdoor Advertising Screen Waterproof High Strength Billboard

Product Details:

Place of Origin: China
Brand Name: GCL
Certification: EMC/CE/ROHS/CCC/FCC/BIS
Model Number: Gpro P2.5/P3.07/P4/P5.92/P8/P10(DIP)/P16(DIP)

Payment & Shipping Terms:

Minimum Order Quantity: Min. order: 20
Price: Negotiable
Packaging Details: Single package size:120X980X50 cm
Delivery Time: 15-22Days
Payment Terms: L/C, T/T
Supply Ability: 2000 Square Meter/Square Meters per Month
Get Best Price Contact Now

Detail Information

Highlight:

Full color Outdoor Advertising Screen

,

High Strength Outdoor Advertising Screen

,

Waterproof Outdoor LED Advertising Screen

Product Description

Outdoor P2.5 P4 P6 P8 P10 P16 DIP  Full color video wall waterproof Advertising Digital Signage Billboard front led display



Product Introduction:



Low Power Consumption
We use customized PCB and power supply, so average power consumption is less than 130W/㎡. Compared with the similar products in the market, the display saves 30% energy. The pixel pitches areP4,P5.57, P8,P10DIP, P16DIP.

High Brightness
Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.

Super light weight
Die-casting Aluminum case, save 47% weight than normal case, it means saving your transportation and labor installation cost greatly ;

IP65 front Water proof
High protection grade of IP65 guarantees,Durability, Reliability, Anti-ultraviolet and Steady.

High Refresh Rate
The image on the LED screen is formed perfectly. One of the reasons is that the refresh rate can reach 3,840Hz.

High Protective Grades
3 layers of high-quality conformal coating protects the driving IC and other electron components from dust and humidity. Strong signal cable brings more security and the cables look neat.

Great Gray Scale
Most LED screens from other suppliers have a low gray scale, so some of the colors can't be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 13bits ~ 16bits. It is very high so the image looks very vivid and perfect.

Visual Performance
High Contrast: The contrast ratio of the LED screen gives sharp image quality.
High Brightness: The brightness of the LED display can be up to 10,000nits. Even if the screen is facing the direct sunlight, the image still looks clear.



Parameters of Gpro Series:

Product P2.5 P4 P5.9 P8 P10 P10D P16
Pitch 2.5mm 4mm 5.92mm 8mm 10mm 10mm 16mm
Density(pixels/m²) 160000 62500 28476 15625 10000 10000 3906
LED Type SMD1415 SMD1921 SMD2727 SMD2727 SMD2727 DIP346 DIP346
Brightness 6000nits 6000nits 7000nits 7000nits 7000nits 8000nits 8000nits
Scan Method 1/16 1/10 1/6 1/4 1/2 1/4 Static

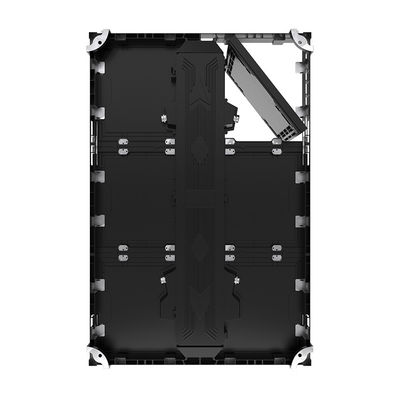

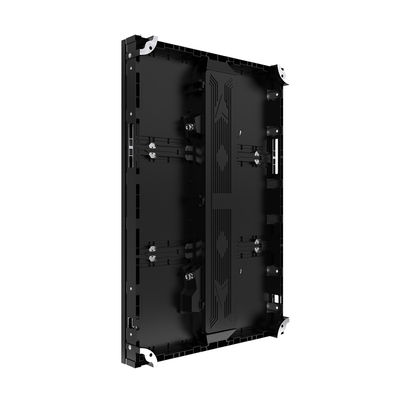

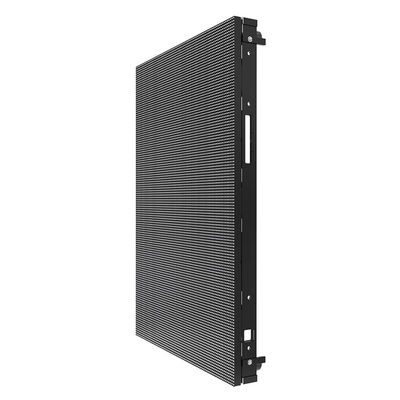

Panel Size 640×960mm

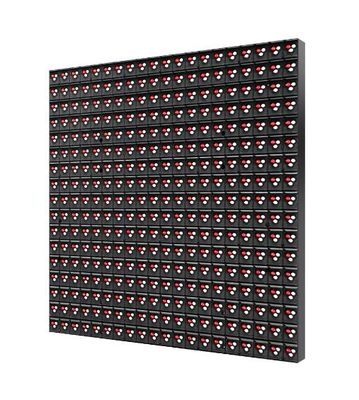

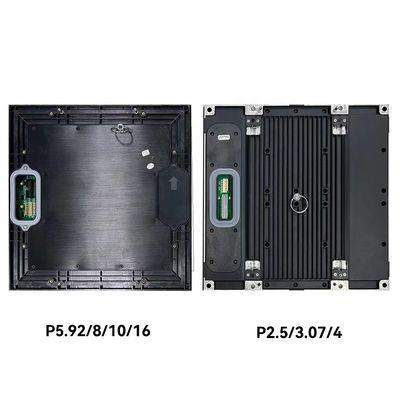

Module Size 320×320mm
Panel Material Die-casting Aluminum
Panel Weight 23.5Kg 23.5Kg 19Kg 19Kg 19Kg 21Kg 21Kg
Protection Level IP65
Maintenance Front/Rear Service
Max Power Consumption 650W/㎡ 720W/㎡ 720W/㎡ 720W/㎡ 720W/㎡ 350W/㎡ 350W/㎡
Average Power Consumption 210W/㎡ 240W/㎡ 240W/㎡ 240W/㎡ 240W/㎡ 110W/㎡ 110W/㎡
Refresh Rate 3840Hz
Grey Scale 13-16bit
Viewing Angle H160°,V140° H100°,V50°
Voltage AC100~240V(50-60Hz)
