Outdoor 8000Nits High Brightness Light Rate 75% Grille Display Screen, Customizable

Brand Name:	GCL
Model Number:	Gmesh
MOQ:	5
Price:	399
Packaging Details:	wooden case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO

Document:

Port:

SheKou Shenzhen China

Brightness Adjustment:

Manual/Automatic

Operating Humidity:

35% -75%

Tube Chip Color:

Full Color

SMD3535

Density Of Pixel:

32768

Gray Scale:

16bit

Control System:

Synchronous/Asynchronous

Materials:

Magnesium Alloy

Protection:

Supply Ability:

depend on quantity

Highlight:

Outdoor transparent LED display

8000Nits high brightness LED screen

Customizable grille display screen

Product Description

Outdoor High-Transmittance Waterproof Grille Screen DIP346

The Gmesh-T series is a high-performance outdoor grille LED display tailored for building facade and outdoor creative display scenarios. Boasting a maximum light transmittance of 75%, it allows ample natural light to penetrate when installed on building exteriors, avoiding light blockage and perfectly preserving the original architectural lighting and ventilation effect.

Equipped with high-brightness LED chips, the series features a brightness range of 8000-10000 nits, delivering ultra-clear, high-contrast and vivid display performance even under strong outdoor sunlight, ensuring stable and eye-catching visual effects in all weather conditions.

With an industry-grade IP65 waterproof and dustproof rating, the display achieves outstanding environmental adaptability. It can operate safely and stably in extreme temperatures ranging from -40℃ to 70℃, fully adapting to complex and harsh outdoor environments.

The product adopts an ultra-light aluminum alloy cabinet, which effectively reduces the overall weight of the outdoor display wall and greatly lowers the bearing pressure on building structures. It supports flexible horizontal and vertical installation, with customizable cabinet sizes and freely cuttable and combinable light strips, enabling diverse personalized and irregular display shapes.

Versatile and practical, the Gmesh-T series is widely applicable for large outdoor commercial advertising screens, architectural facade media displays, as well as stage creative background modeling displays, integrating aesthetics, practicality and durability perfectly.

Technical Specifications

Parameter	P16-A	P16-B	P25	P31.25
Pitch (mm)	15.625	31.25-15.625	31.25-25	31.25
Density (pixels/m²)	4096	2048	1280	1024
LED Type	DIP346	DIP346	DIP346	DIP346
Brightness (nits)	10000	10000	10000	8000
Scan Type	Static	Static	Static	Static
Cabinet Weight (kg/m²)	≤14	≤12.7	≤12	≤11.5
Max Power Consumption (W/m²)	350	350	350	350
Average Power Consumption (W/m²)	120	120	120	120

Protection Level: IP65

Maintenance: Front/Rear Access

Refresh Rate: ≥3840Hz

Grey Scale: 16Bit

Viewing Angle: H100°, V50°

Input Voltage: AC100-240V (50-63Hz)

Operating Temperature: -40℃ to +70℃

Storage Humidity: 10%-90% RH

Color Temperature: 6500-9500K

Certifications: CE/ROHS/CCC/FCC

Product Images

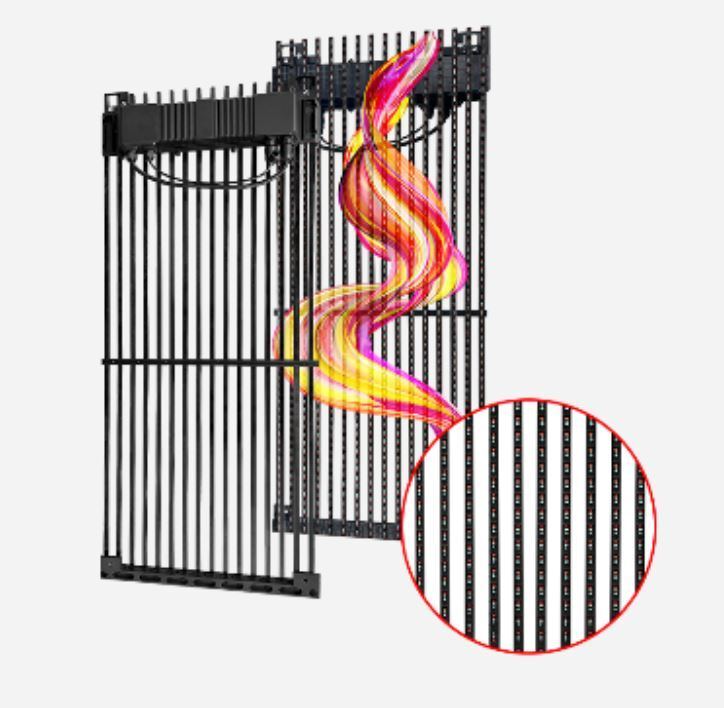

Outdoor 8000Nits High Brightness Light Rate 75% Grille Display Screen, Customizable 0

Outdoor 8000Nits High Brightness Light Rate 75% Grille Display Screen, Customizable 1
