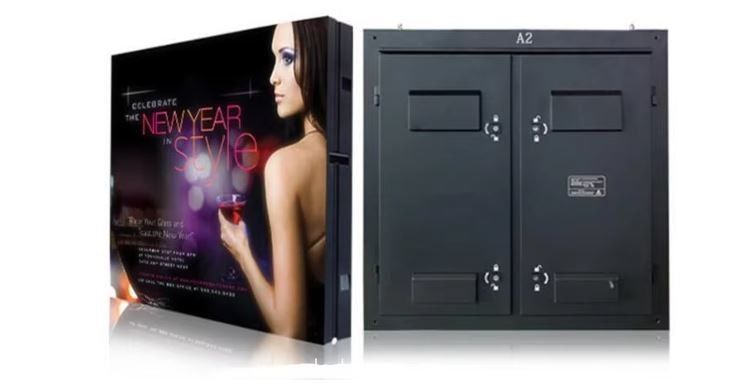

Customizable Outdoor P2.5mm-P10mm Large Waterproof LED Advertising Screen

Brand Name:	GCL
Model Number:	Grock
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	plywood,flight case,paper board

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

Color:

FULL COLOR

Panel Size:

976x976mm, 976x976mm

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:

Photo, Video

Advertising Publish, Shopping Mall, Display Of Dishes, Exhibition Hall, Airport, Restaurant & Hotel Supplies, Education, Medical Treatment

Pixel Pitch:

3.81mm, 3.81mm

Specification:

Digital Poster

Touch Screen Type:

Capacitive

Brightness:

600-1000nits, 600-1000nits, 5500nits

Pixel Density:

68798, 68798

Lifespan (hours):

100,000, 100,000

IP Rating:

IP34, IP34

HS Code:

Resolution:

2K-4K

Module Size:

244*122mm

Cabinet Material:

Steel(Aluminum Optional)

Scan Method:

Cabinet Weight:

45kg/m2

LED Type:

SMD1921

Life Span:

100000 Hours

Warranty:

3-5 Years

Refresh Rate:

1920Hz-3840Hz

Cabinet Maintenance:

Rear Service

Port:

Shenzhen

Supply Ability:

2000 Square Meter/Square Meters per Month

Highlight:

customizable outdoor LED advertising screen

waterproof P2.5mm-P10mm LED display

large outdoor fixed LED screen

Product Description

Product Features:

IP 65 high-level protection, dual waterproof box and module;
Sheet metal iron box has low cost and high cost-effectiveness
The cabinet is designed with double layered doors and locks, and the power supply of the board is independently partitioned;
Post maintenance design;
The cabinet is equipped with a fan inside for efficient heat dissipation;
Special customization available: cylindrical, curved, square cylindrical
Application scenarios: Large outdoor advertising, building facade advertising, highway roadside advertising screens, etc

Products Description:

Product	P2.5	P3	P3.81	P4
Pitch(mm)	2.5	3	3.81	4
Density(pixels/m²)	160000	111111	68798	62500
LED Type	SMD1415	SMD1921
Brightness(nits)	5000	5500	5500	5500
Scan Method	1/16	1/16	1/16	1/8
Cabinet Size(mm)	Customized
Cabinet Material	Steel
Cabinet Weight	45kg/m²
Protection Level	IP65
Cabinet Maintenance	100% Rear Service
Max Power Consumption	800w/m²	720w/m²	800w/m²
Average Power Consumption	270w/m2	240w/m²	270w/m²
Refresh Rate	2880-3840HZ
Grey Scale	16 bit
Viewing Angle	H160^o,V140^o
Voltage	AC100~240V(50-63Hz)
Working Temperature	-30 ^oC - + 65 ^oC
Working Humidity	10% -- 90%RH
Color Temperature	6500-9500K
Certificationa	EMC/CE/ROHS/CCC/FCC/ISO
