P1.953mm Versatile Outdoor Activity Rental Display Screen:

Brand Name: GCL
Model Number: Gstar-II P1.953/P2.5/P2.604/P2.976/P3.91/P4.81
MOQ: Min. order: 20
Price: Price to be discussed
Packaging Details: Single package size:60X60X30 cm
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
EMC/CE/ROHS/CCC/FCC/BIS
Application:
Indoor
Use:
Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Pixels:
P1.5\1.95\2mm
Specification:
Video Wall
Brightness:
1200nits
Module Size:
250*250mm
Scan Mode:
1/16-1/20S
Panel Weight:
7.45Kg
Supply Ability:
5000 Square Meter/Square Meters per Month
Highlight:

P1.953mm outdoor LED display

,

rental concert LED screen

,

versatile stage display screen

Product Description

P1.953mm versatile outdoor activity rental display screen:

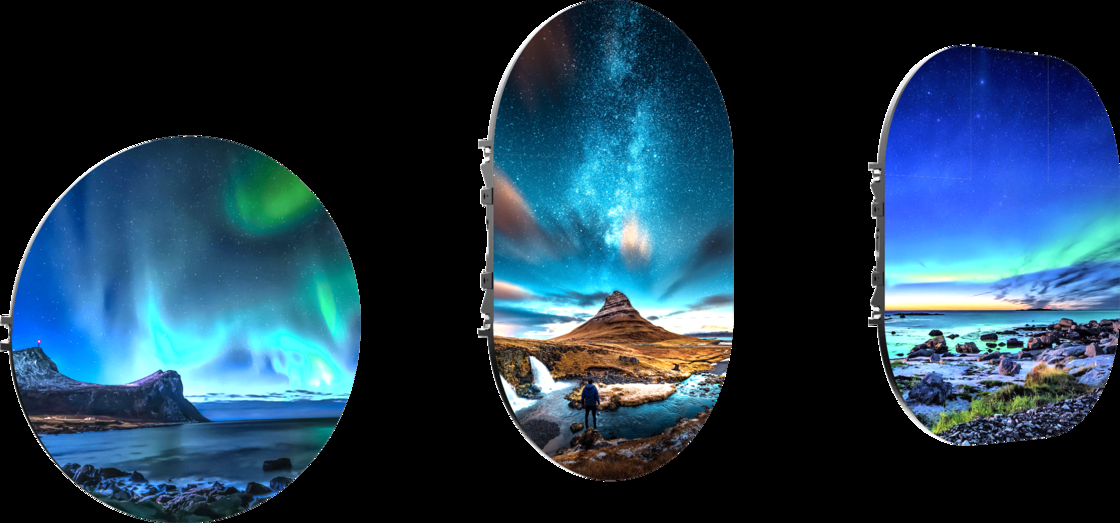

The newly developed 90 degree straight edge fan-shaped box, when used with a 500 * 500mm Gprime box set, can form a non face shaped design to adapt to more application scenarios;

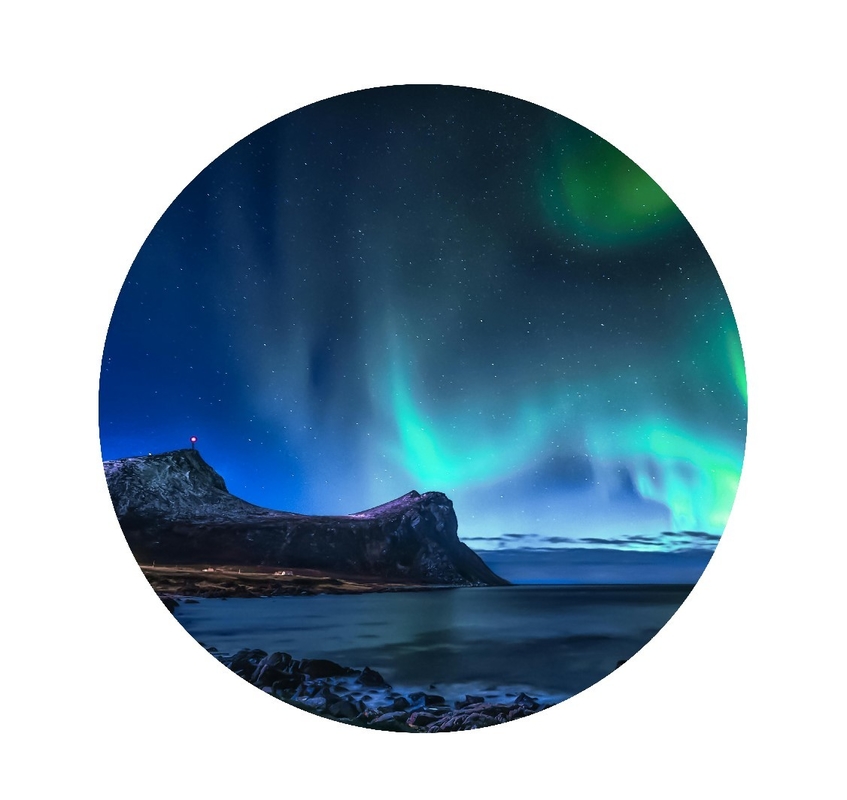

Four straight edge fan-shaped displays, perfectly assembled into a circular display screen with a diameter of 1000mm;

Two Gprime boxes in the middle, with two straight edge sectors at each end forming an elongated ellipse;

In the middle, five 500 * 500mm boxes are assembled into a cross shape, with four angles connected to a 90 degree straight edge fan-shaped shape, which can be assembled into a 1500 * 1500mm square with a large chamfered arc;

High refresh Switching without blinking:
Adopting a high refresh rate IC with a refresh rate of 7640Hz, the playback screen has no shaking, ghosting, or water ripple phenomenon!

Support simultaneous Front and rear maintenance methods
The module can be disassembled for front/back maintenance, making bidirectional maintenance and installation more convenient；

Name Gprime-1.5 Gprime-1.9 Gprime-2.6
Pixel Pitch (mm) P1.5625 P1.953 P2.604
Density pixels/㎡ 409600 262144 147456
LED Type SMD1010 outdoor SMD1010 outdoor SMD1415 outdoor
Brightness (cd/㎡) ≥4500cd/㎡ ≥4500cd/㎡ ≥4500cd/㎡
Scan Method 1/40S 1/32S 1/16S
Cabinet Size (mm) 500*500*75mm 500*500*75mm 500*500*75mm
Module Size (mm) 250*250*17mm 250*250*17mm 250*250*17mm
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight ≤7.5kg ≤7.5kg ≤7.5kg
Cabinet Maintenance Full Front/Rear Service Full Front/Rear Service Full Front/Rear Service
Max Power Consumption/㎡ 700W 700W 700W
Average Power Consumption/㎡ 180W 180W 180W
Refresh Rate 7680HZ 7680HZ 7680HZ
Grey Scale 14BIT 14BIT 16BIT
Viewing Angle H140°, V140°
Input Voltage AC100~240V(50-60Hz)
Working Temperature ﹣40℃－﹢70℃
Working Humidity 10%－90%RH
Protection Level IP65
Color Temperature 3000-9500K
Certifications EMC/CE/ROHS/CCC/FCC/BIS



P1.953mm Versatile Outdoor Activity Rental Display Screen: 0P1.953mm Versatile Outdoor Activity Rental Display Screen: 1P1.953mm Versatile Outdoor Activity Rental Display Screen: 2
