P1.25mm P1.538 mmGOB high-definition LED poster screen that can be folded up and down and quickly assembled left and right

Brand Name: GCL
Model Number: PH：P1.82mm/P2mm/P2.5mm/P3.07mm/P4mm
MOQ: 5
Price: Price to be discussed
Packaging Details: Single package size: 230X40X100 cm
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
EMC/CE/ROHS/CCC/FCC/BIS
Document:
Gposter-A.pdf
Supply Ability:
2000 Square Meter/Square Meters per Month
Product Description
P1.25mm GOB high-definition LED poster screen that can be folded up and down and quickly assembled left and right
Product Features:
Product size:
Overall dimensions: 655 * 1936mm; Display dimensions: 640 * 1920mmHigh Protection:
Using GOB modules, the product features multiple protections against dust, moisture, and scratches, making it more durableUltra-thin design, 100% Front Service
The thickness of the entire machine is only 30mm, featuring a die-cast aluminum body that is sturdy and durable. Module Front Service


Three assembly methods:
1. Hard connection between boxes, integrated and non foldable;
2. There is a loose leaf connecting piece in the middle of the box, which can be folded up and down to 173 degrees without disassembling the box and the edging strip, greatly compressing the packaging space and facilitating long-distance transportation, saving costs;

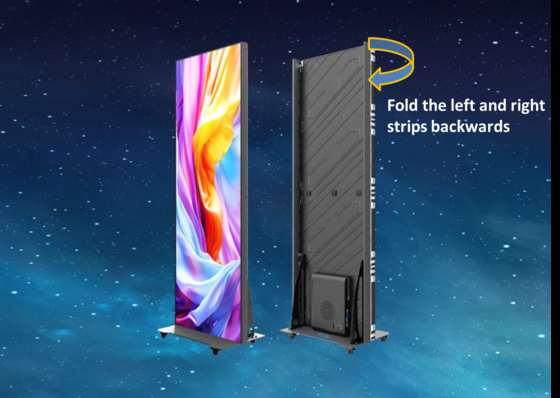

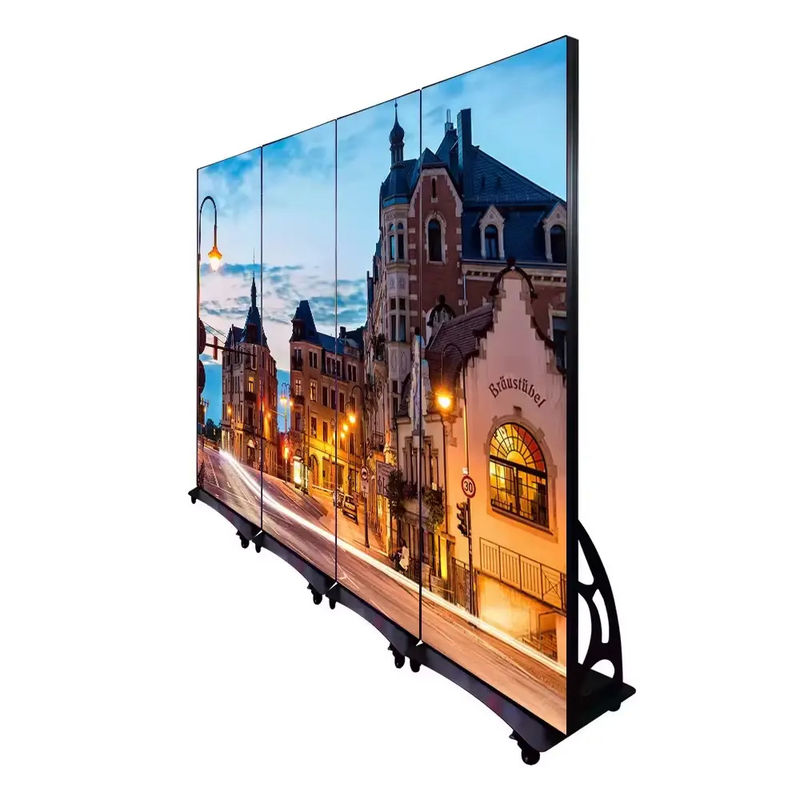

3. Up and down folding design+left and right edge banding can be folded back. For edge banding inns, several poster screens can be folded back to form a large and complete background wall display screen, increasing visual effects. It can also be used for small XR shooting background display screens;


Parameters:

Product P1.25 P1.5 P1.82 P2
Pitch 1.25 1.538mm 1.82mm 2mm
LED Type SMD1010 SMD1212 SMD1515 SMD1515
Brightness 600-1000nits
Module Size 320×160mm
Total Poster Size W×H×T655×1936×45mm
LED Display Size 640x1920mm
Material Acrylic+Aluminum
Weight 35kg/panel
Panel Material 4G/Wifi/Ethernet+Cloud Cluster Control+Mobile App
Protection Level IP34
Maintenance Front&Rear Service
Max Power Consumption 600W/pcs
AveragePower Consumption 350W/pcs
Refresh Rate 3840Hz
Grey Scale 16bit
Viewing Angle H160°,V160°
Voltage AC100~240V(50-60Hz
Working Temperature -20℃to 60℃


P1.25mm P1.538 mmGOB high-definition LED poster screen that can be folded up and down and quickly assembled left and right 0

P1.25mm P1.538 mmGOB high-definition LED poster screen that can be folded up and down and quickly assembled left and right 1

P1.25mm P1.538 mmGOB high-definition LED poster screen that can be folded up and down and quickly assembled left and right 2

P1.25mm P1.538 mmGOB high-definition LED poster screen that can be folded up and down and quickly assembled left and right 3

P1.25mm P1.538 mmGOB high-definition LED poster screen that can be folded up and down and quickly assembled left and right 4
