Newest Outdoor Rental LED Screen P1.5625 P1.953 P2.6 Mm 7680 Hz Panel Curved Shape Screen For Stage Show Event and Outdoor advertising machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gprime P1.56\P1.95\P2.604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Brand Name: | GCL | RODUCT MODEL: | Outdoor Rental Gprime Series |
|---|---|---|---|
| Panel Size: | 500*500mm | Module Size: | 250*250mm |
| Ip Rating: | IP65 | Certifications: | EMC/CE/ROHS/CCC/FCC/ISO |
| Panel Weight: | 7.4kg/panel | Color: | Full Color |
| Brightness: | 4500nits | Refresh: | 7680Hz |
| Ohthers: | Outdoor Advertising Machines | ||
Product Description
Newest Outdoor Rental LED Screen P1.5625 P1.953 P2.6 Mm 7680 Hz Panel Curved Shape Screen
Product Overview
High-performance outdoor rental LED screen designed for stage shows, events, and outdoor advertising. Available in three pixel pitch options (P1.5625, P1.953, P2.6mm) with 7680Hz refresh rate and 4500nits brightness.
Key Specifications
| Brand Name | GCL |
|---|---|
| Product Model | Outdoor rental Gprime series |
| Panel Size | 500×500mm |
| Module Size | 250×250mm |
| IP Rating | IP65 |
| Certifications | EMC/CE/ROHS/CCC/FCC/ISO |
| Panel Weight | 7.4kg/panel |
| Color | Full Color |
| Brightness | 4500nits |
| Refresh Rate | 7680Hz |
Product Features
- Three pixel pitch options available: P1.5625, P1.953, and P2.6mm
- Ideal for outdoor concerts, commercial press conferences, and roadshows
- One-hand operation with 3-second installation capability
- Front and rear maintenance accessible design
- 4500nits brightness with 7680Hz refresh rate for superior visual performance
- 90-degree corner design enables 360° vertical circular advertising applications
- Die-casting aluminum cabinet with IP65 protection rating
Technical Specifications
| Specification | Gprime-1.5 | Gprime-1.9 | Gprime-2.6 |
|---|---|---|---|
| Pixel Pitch (mm) | P1.5625 | P1.953 | P2.604 |
| Density pixels/㎡ | 409600 | 262144 | 147456 |
| LED Type | SMD1010 outdoor | SMD1010 outdoor | SMD1415 outdoor |
| Brightness (cd/㎡) | ≥4500 | ≥4500 | ≥4500 |
| Scan Method | 1/40S | 1/32S | 1/16S |
| Cabinet Size (mm) | 500×500×75 | 500×500×75 | 500×500×75 |
| Module Size (mm) | 250×250×17 | 250×250×17 | 250×250×17 |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | ≤7.5kg | ≤7.5kg | ≤7.5kg |
| Max Power Consumption/㎡ | 700W | 700W | 700W |
| Average Power Consumption/㎡ | 180W | 180W | 180W |
| Refresh Rate | 7680HZ | 7680HZ | 7680HZ |
| Viewing Angle | H140°, V140° | ||
| Working Temperature | ﹣40℃－﹢70℃ | ||
| Protection Level | IP65 | ||

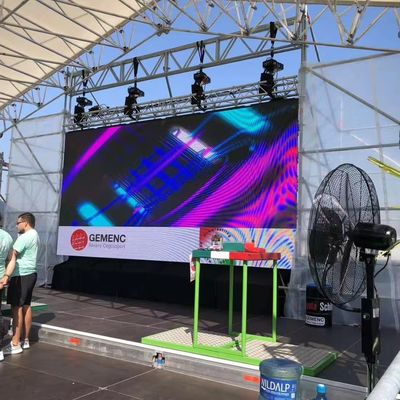

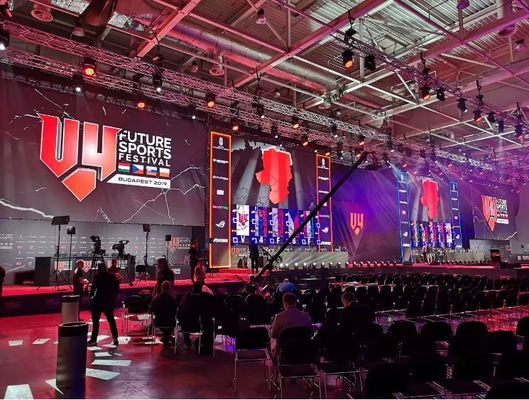

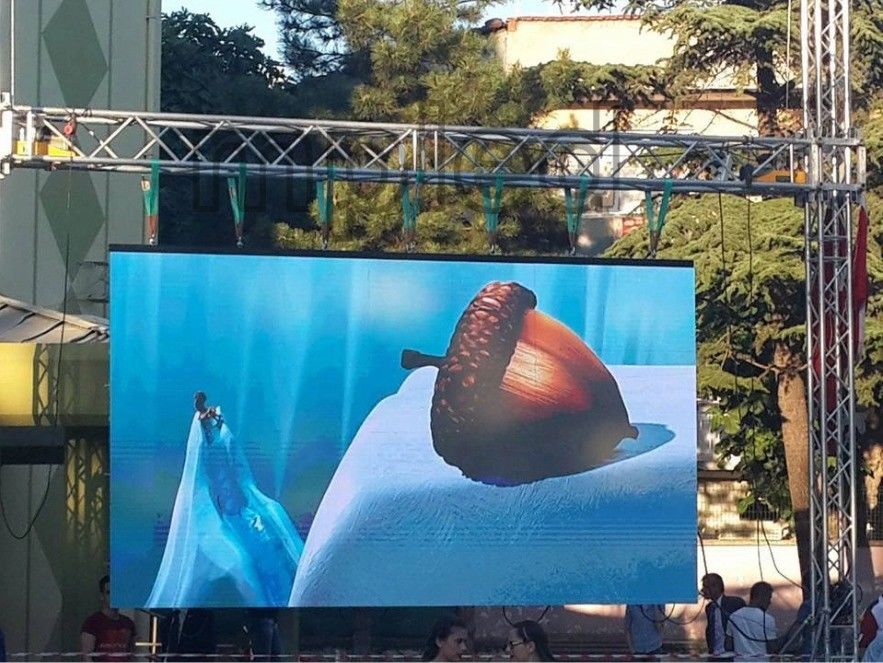

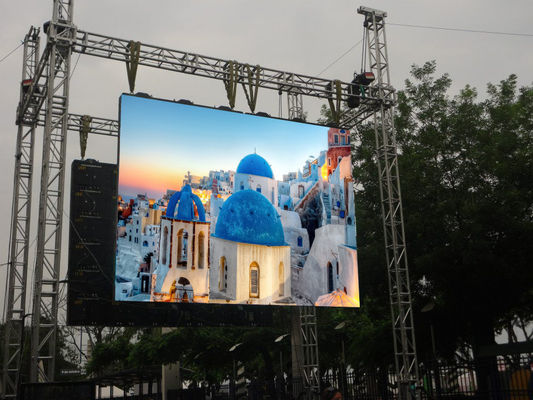

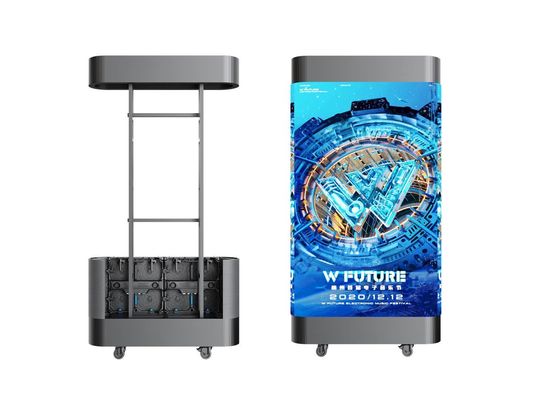

Product Gallery
