P1.25mm P1.52625mm GOB panel anti slip and wear-resistant floor display screen with a load-bearing capacity of 1.5 tons

Brand Name: GCL
Model Number: Gfloor
MOQ: 5
Price: Price to be discussed
Packaging Details: Packing with Flight case & Wooden box & Hard paper box
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
EMC/CE/ROHS/CCC/FCC/BIS
Application:
Led Poster Display
Color:
Full Color
Panel Size:
W500*H500mm
Use:
Advertising Publish, Medical Treatment
Pixel Pitch:
1.25mm\1.5625mm\1.953mm\2.6mm
Module Size:
250*250mm
Brightness:
Indoor 1000nits-outdoor 4000nits
Cabinet Maintenance:
Front Service
LED Chip:
Epistar
Port:
Shenzhen China
Supply Ability:
5000 Square Meter/Square Meters per Month
Product Description

Product size: 500 * 500mm
Product spacing: P1.25 P1.5625 P1.953mm

Product Features:

1. Installation without lifting the ground:
It can be built and used according to the simulated terrain on the project site, supporting multiple complex terrains, without lifting the ground, and can be quickly installed with a flatness error of less than 1mm;
2. Overall no color difference:
The tile screen and background vertical screen share a module to ensure consistent and color free overall display effect
3. Super high voltage resistance:

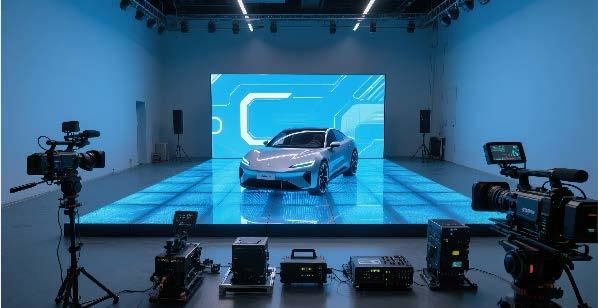

Can withstand 1.5 tons per square meter, with no pressure for use in car showrooms, stage performances, and other scenarios
4. GOB process:
The module adopts GOB technology, with a surface that is anti slip, friction resistant, dirt resistant, and easy to clean;
5. IP65 waterproof:
The module bottom shell, face mask, and cables are all specially designed with waterproof and moisture-proof materials, which have excellent waterproof and moisture-proof functions. The front and rear of the box can reach IP65 waterproof level

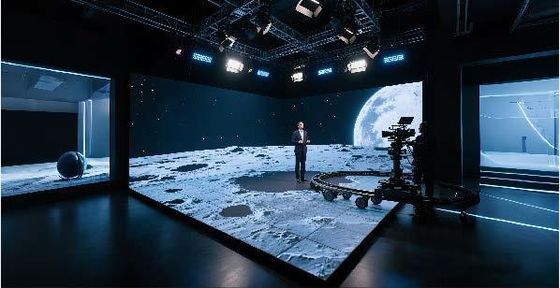

6. Commonly applicable to XR scenarios:
Can be customized according to the project site to quickly build XR virtual photography tile screens

P1.25mm P1.52625mm GOB panel anti slip and wear-resistant floor display screen with a load-bearing capacity of 1.5 tons 0

P1.25mm P1.52625mm GOB panel anti slip and wear-resistant floor display screen with a load-bearing capacity of 1.5 tons 1

P1.25mm P1.52625mm GOB panel anti slip and wear-resistant floor display screen with a load-bearing capacity of 1.5 tons 2

P1.25mm P1.52625mm GOB panel anti slip and wear-resistant floor display screen with a load-bearing capacity of 1.5 tons 3

Product P1.2 P1.5 P1.9 P2.6
Pitch 1.25mm 1.5625mm 1.953mm 2.604mm
Resolution(dots) 640000 409600 262144 147456
LEDType SMD1010 SMD1010 indoor:SMD1515
outdoor:SMD1010		 indoor:SMD1515
outdoor:SMD1415
Brightness indoor 1000nits,outdoor4000nits
Scan Method 1/50 1/40 1/32 1/16
Cabinet Size(mm) 500*500*90mm 500*500*90mm 500*500*90mm 500*500*90mm
Module Size(mm) 250*250*15mm 250*250*15mm 250*250*15mm 250*250*15mm
Cabinet Material Profile Aluminum Profile Aluminum Profile Aluminum Profile Aluminum
Weight ≤10kg ≤10kg ≤10kg ≤10kg
Cabinet Maintenance Module pre maintenance Module pre maintenance Module pre maintenance Module pre maintenance
Ultimate load-bearing capacity 1.5T/㎡
Protection Level frontIP65,backIP43
Cabinet evenness ≤1mm
Max Power Consumption/㎡ 750W 750W 750W 750W
Average Power Consumption 250W 250W 250W 250W
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Grey Scale ≥14Bit ≥14Bit ≥14Bit ≥14Bit
Viewing Angle H120°,  V120°
Voltage AC100~240V(50-60Hz)
Working Temperature ﹣20℃－﹢60℃
Working Humidity 10%－90%RH
Certifications CE/ROHS/CCC/FCC
