Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard

Brand Name: GCL
Model Number: Gsurface II
MOQ: Min. order: 20
Price: Negotiable
Packaging Details: Packing with Flight case & Wooden box & Hard paper box
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
EMC/CE/ROHS/CCC/FCC/BIS
Application:
OUTDOOR
Type:
LED
Color:
FULL COLOR
Panel Size:
1000*1000mm
Usage:
Outdoor Waterproof
Display Function:
Animation
Brightness:
5500-6000nits
Protection Level:
IP65
Viewing Angle:
140/140 Degree
Refresh Rate:
1920Hz-3840Hz
Cabinet Material:
Iron
Pixel Pitch:
P3.91\P4.81mm
Port:
Shenzhen
Supply Ability:
5000 Square Meter/Square Meters per Month
Highlight:

Nationstar Outdoor Led Display Screens

,

P3.91mm Outdoor Led Display Screens

,

P4.8mm Commercial Building Billboard

Product Description
High Quality Outdoor Big Led Display Screens with Nationstar Led and Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard

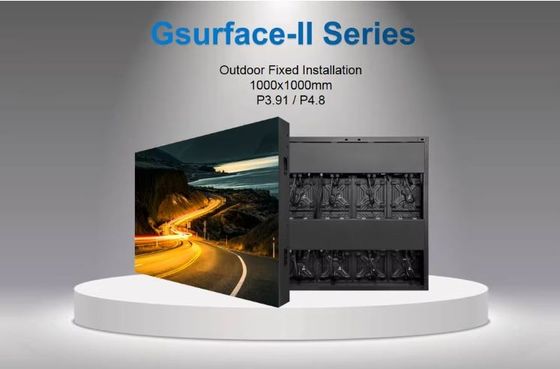

Gsurface-II Series Features:


Available in pixel pitches of P2.976 / P3.91 / P4.81 / P5.2mm, The default material is sheet metal and iron cabinets, making it the top choice for cost-effective outdoor LED displays!

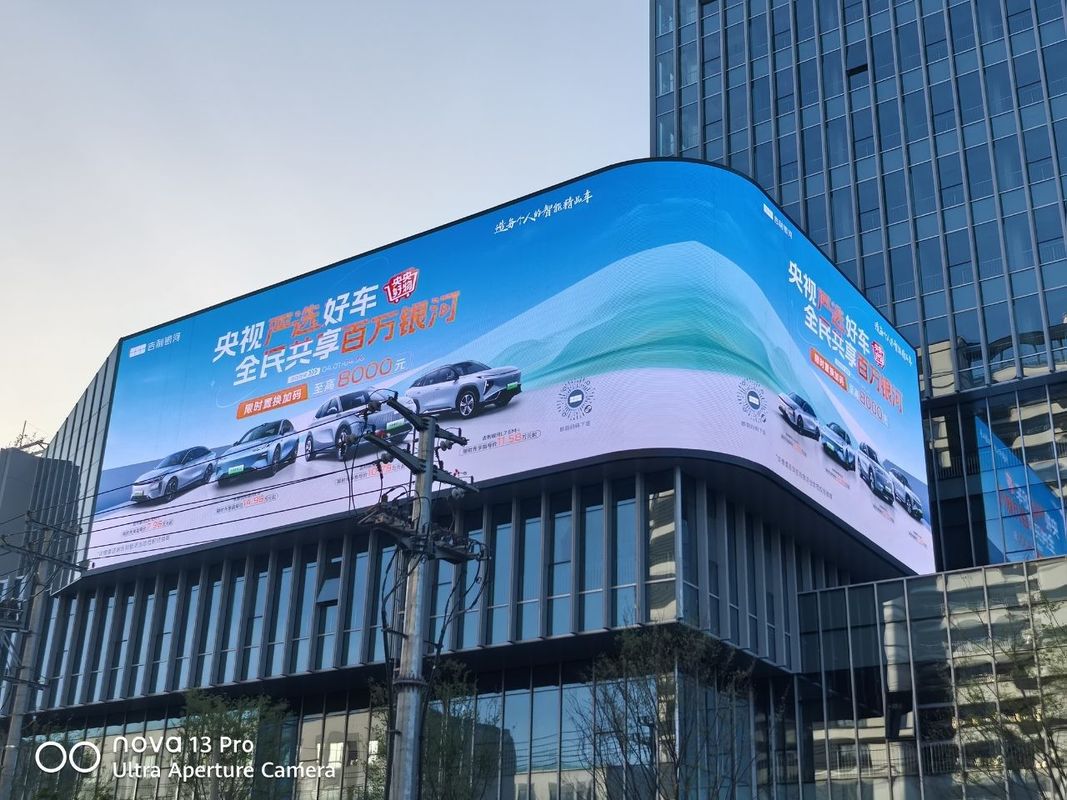

Supports 90° curved screen design, widely used in outdoor billboards, airport highway advertisements, and commercial district naked-eye 3D displays.

Supports 90° Angle & Curved Screen Design:
45°edge module, right angle splicing,Curve shaped frame splicing supported,Joint gap<0.01mm；



Dual Protection Design:
Front waterproof mask and rear waterproof back cover provide dual protection, achieving IP65 waterproof rating.

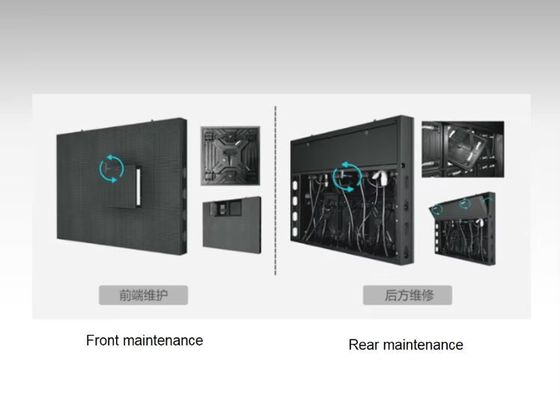

Front & Rear Maintenance:
Modules feature front maintenance holes and rear locking knobs. Easily replace modules from the front using the included hexagon screw tool.



Parameters of Gsurface-II  Series:



D/C LED Screen
Package SMD, DIP
Type LED Screen Manufacturer
Pitch P3.91mm4.8mm
Place of Origin Shenzhen
Product name Gsurface-II Series
Application Outdoor Advertisement
Panel Size 1000x1000mm
Module Size 250x250mm
Panel Weight 32kg
Protection Level IP65
Brightness 5500nits-6000nits
Average Power Consumption 200W/㎡
Viewing Angle H: 140° V: 120°
Panel material Profile Aluminum
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO



Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard 0

Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard 1

Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard 2Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard 3

Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard 4Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard 5Outdoor Big Led Display Screens With Nationstar Led And Nova Control Cards P3.91mm P4.8mm Commercial Building Billboard 6
