P25-31.25 Outdoor Led Display Transparent Led Video Wall Price In China
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | gcl |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmesh P25-31.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*1000mm | Warranty: | 3 Years |
| Pixel Pitch: | P25-31.25 | Port: | Shenzhen |
| Brightness: | 8500mm | IP Rating: | IP 65 |
Product Description
P25-31.25 mm Outdoor Led Display Transparent Led Video Wall Price In China
Products Description:
Diverse Pixel Pitch Options:
Our transparent grid products come in various specifications including P7.8-3.9 / P10 / P16 / P25 - P31.25 / Pmm, meeting different requirements for transparency and lighting.
Pixel Configuration for P25-31.25mm Products:
Pixel pitch: 25mm (horizontal) x 31.25mm (vertical).
Pixel composition: 1R1G1B arranged in a delta pattern to enhance color mixing and prevent color shift at different viewing angles.

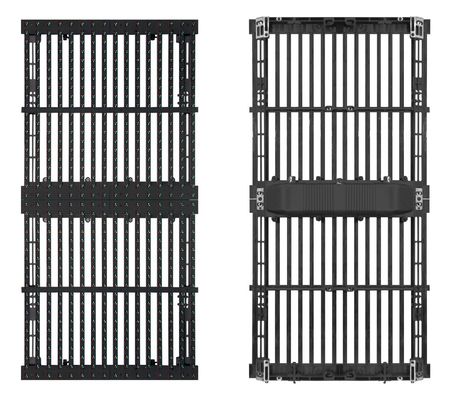

Module and Cabinet Dimensions:
Module size: 500mm (W) x 250mm (H).
Cabinet size: 1000mm (W) x 500mm (H).

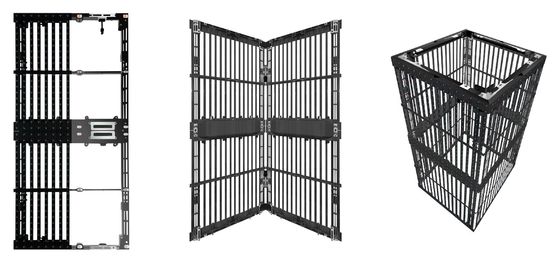

The cabinet can be trimmed at 45° on both sides for seamless right-angle.
High Light Transmittance:

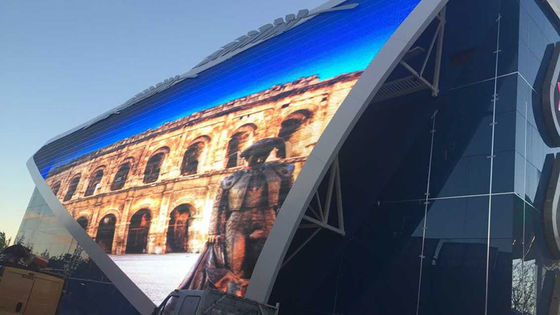

Achieves up to 60% light transmittance, making it ideal for building facades without obstructing natural light.
Passive Cooling Design:
Natural heat dissipation without the need for fans or air conditioning, featuring low wind resistance.
Comprehensive Safety and Protection Features:
Environmental Resistance: Moisture-proof, dust-proof, corrosion-resistant, anti-static, lightning-protected, and shock-resistant, suitable for harsh weather conditions.
Alarm Systems: Equipped with smoke and over-temperature alarms.
Electrical Protections: Overcurrent, short-circuit, overvoltage, and undervoltage protection.
Parameters of Gmesh Series:
| type | LED |
| model number | Gmesh |
| Pixel Pitch | 25-31.25mm |
| pixel density | 10,000 |
| Brightness | 8500nits |
| Application | Outdoor Fixed led Led Display |
| use | advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment |
| color | full color |
| Content Management System | Yes |
| Remote Device Management | Remote Content Management, Real-Time Status Monitoring |
| place of origin | Guangdong, China |
| Resolution | 3840×2160 (4K) |
| Viewing Angle | H140,V120 |
| Contrast Ratio | 5000:01:00 |
| Power Consumption | 200W/㎡ |
| Color Depth | 13-16bit |
| Refresh Rate | 3840Hz |
| Mounting options | wall mount, Custom Mount |
| Power Supply | 100-240V AC |
| Sunlight Readable | Yes |
| Color Gamut | sRGB 95% |
| HDR Support | HDR10+ |
| brand name | GCL |
