Outdoor Advertising Led Screen P4 P5.7mm Aluminum Waterproof IP65 960*960mm L-Shaped Curved Corner Right Angle Solution

Brand Name:	GCL
Model Number:	GA
MOQ:	Min. order: 20
Price:	Negotiable
Packaging Details:	Single package size:101X116X13 cm

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

LED

Panel Size:

960*960 Mm

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment

Function:

SDK

Pixel Pitch:

8mm, 10mm

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

6000-10000nits

Lifespan (hours):

100000

Resolution:

3840Hz

View Angle（H/V）:

H120°,V120°

Module Size:

480*320mm

Cabinet Weight:

29.48KG

Maintenance:

Front & Rear Service

Grey Scale:

13-16 Bit

Supply Ability:

2000 Square Meter/Square Meters per Month

Highlight:

IP65 Outdoor Advertising Led Screen

Waterproof Outdoor Advertising Led Screen

Aluminum Outdoor Advertising Led Screen

Product Description

Outdoor 3D L-Shaped Curved Corner&Right Angle Solution P4 P5.7mm Led Display Screen Aluminum Waterproof IP65 960*960mm Outdoor Advertising Led Screen

Product Features:

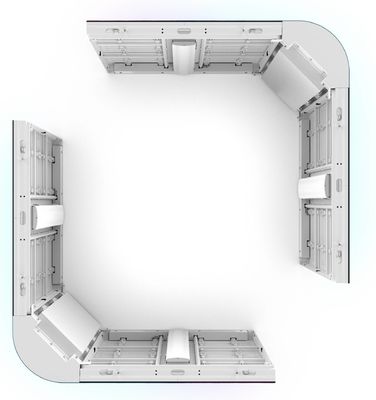

Right Angle & Radian
Utilizing 960960mm profile aluminum cabinets in combination with 320160mm small modules, it enables seamless L-shaped splicing to form corner configurations. Widely employed in outdoor naked-eye 3D large-screen displays.

Enhanced Energy Efficiency
The product incorporates dual-voltage power supply technology, resulting in superior energy and electricity savings. Equipped with branded gold wire lamps featuring a brightness of 10,000 nits and a power consumption of ≤330W/㎡, it helps reduce electricity costs.

Fully Enclosed Modules & Totally Waterproof Aluminum Bottom Shell Design
Boasting high-quality dust and water resistance, it ensures safety and a prolonged service life.

Customizable for Outdoor Advertising Machines
Suitable for small-scale outdoor applications such as shopping malls, gas stations, and retail outlets.

Parameters of GA P4 Series

Product	P4
Pitch	4mm
Density(pixels/m²)	62500
LED Type	SMD 1921
Brightness	6000nits
Scan Method	1/7
Panel Size	960×960mm
Module Size	480×320mm
Panel Material	Profile Aluminum
Panel Weight	30kg
Protection Level	IP65
Maintenance	Front&Rear Service
Max Power Consumption	650W/㎡
Average Power Consumption	210W/㎡
Refresh Rate	3840Hz
Grey Scale	13-16Bit
Viewing Angle	H140°,V120°
Voltage	AC100~240V(50-60Hz)
