Waterproof Outdoor LED Display Screen Video Wall Full Color P6 P8 P10 Giant Stadium Panel
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsurface-V |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:101X116X13 cm |
| Delivery Time: | 15-20Days |
|
Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 960*960 Mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment |
| Pixel Pitch: | 6mm,8mm,10mm | Brightness: | 6000-6500nits |
| IP Rating: | IP65 | Resolution: | 3840Hz |
| View Angle（H/V）: | H140°,V140° | Module Size: | 320*160mm |
| After-sales Service Provided: | 3 Years | Cabinet Weight: | 35KG |
| Maintenance: | Rear Service | ||
| Highlight: | Outdoor LED Display Screen Video Wall,Waterproof Full Color LED Display Screen,Giant Stadium Panel LED Display Screen |
||
Product Description
Waterproof Outdoor LED Display Screen Video Wall Full Color P6 P8 P10 Giant Stadium Panel
Product Attributes
| Attribute | Value |
|---|---|
| Application | Outdoor |
| Type | LED |
| Color | Full color |
| Panel Size | 960*960 mm |
| Supplier Type | Original manufacturer, ODM, OEM |
| Use | Advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment |
| Pixel Pitch | 6mm, 8mm, 10mm |
| Brightness | 6000-6500nits |
| IP Rating | IP65 |
| Resolution | 3840Hz |
| View Angle（H/V） | H140°, V140° |
| Module size | 320*160mm |
| After-sales Service | 3 Years |
| Cabinet Weight | 35KG |
| Maintenance | Rear Service |
Product Description
GCL Waterproof Full Color P6 P8 P10 mm Giant Stadium Panel Video Wall Outdoor LED Display Screen
Product Features

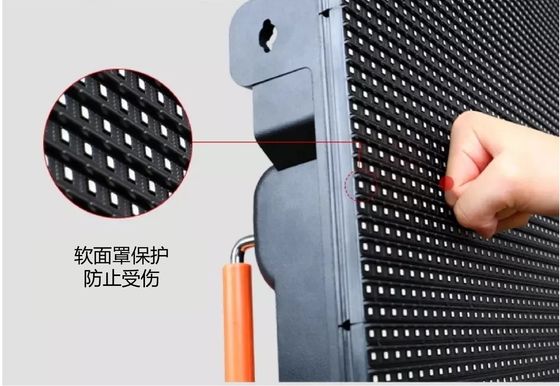

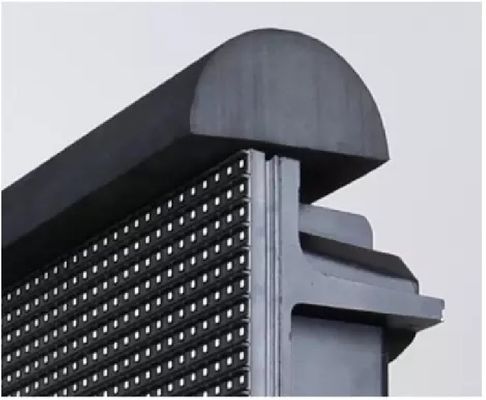

High Protection Performance: High quality cotton on top to reduce impact with polymer soft cover to prevent collision injuries
Easy Installation: Two fast locks on both sides and the top for easy installation
Multiple Usages: The cabinet without the protection pad and supporting leg can be used in either outdoor rental use or fixed installation

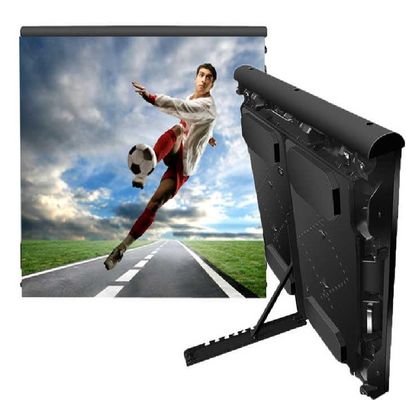

Adjustable Support Frame: Support frame can be adjusted to different angles
Technical Parameters
| Product | P6 | P8 | P10 |
|---|---|---|---|
| Pitch(mm) | 6 | 8 | 10 |
| Density(pixels/m2) | 27777 | 15625 | 10000 |
| LED Type | SMD2727 | ||
| Brightness(nits) | 6000 | 6000 | 6500 |
| Cabinet Size(mm) | Customized | ||
| Cabinet Material | Magnesium Diecasting | ||
| Cabinet Weight | 35kg/m2 | ||
| Protection Level | IP65 | ||
| Cabinet Maintenance | Rear Service | ||
| Max Power Consumption | 750w/㎡ | 800w/㎡ | 720w/㎡ |
| Average Power Consumption | 250w/㎡ | 300w/㎡ | 240w/㎡ |
| Refresh Rate | 2880-3840Hz | ||
| Grey Scale | 16 bit | ||
| Viewing Angle | H140°, V140° | ||
| Voltage | AC100~240V(50-63Hz) | ||
| Working Humidity | 10% -- 90%RH | ||
| Color Temperature | 6500-9500K | ||
| Certification | EMC/CE/ROHS/CCC/FCC/ISO | ||
