Curved Exterior Building 3D Billboard Big Screen Video Led Image Display P3.9 Fixed Advertising Screen Display Outdoor
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsurface-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor Fixed Installation | Color: | Full Color |
|---|---|---|---|
| Panel Size: | Customized | Module Size: | 192x192mm |
| LED Type: | SMD1921 | Maintenance: | Front Service |
| Protection Level: | IP65 | LED Chip: | Epistar |
| Weight: | 32kg/sqm | Pixel Pitch: | 6.0mm |
| Port: | Shenzhen | Refresh Rate: | 3840Hz |
| View Angle（h/v）: | H140°,V120° | ||
Product Description
:

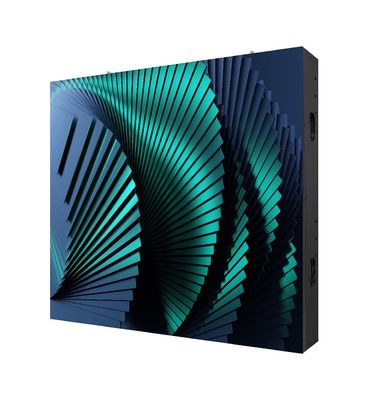

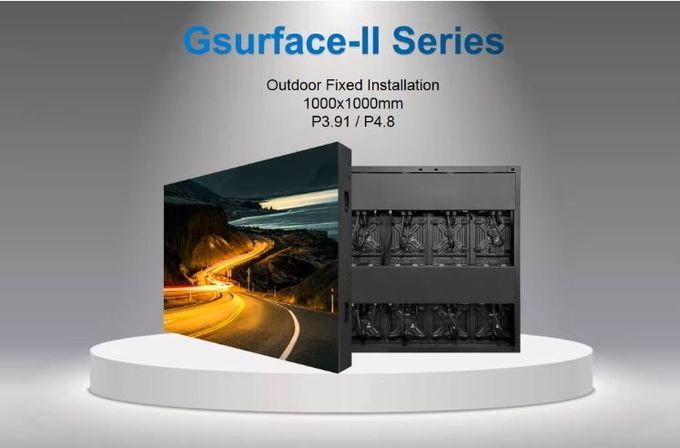

Gsurface-Ⅱ Series outdoor Fixed Installation Product
Features:

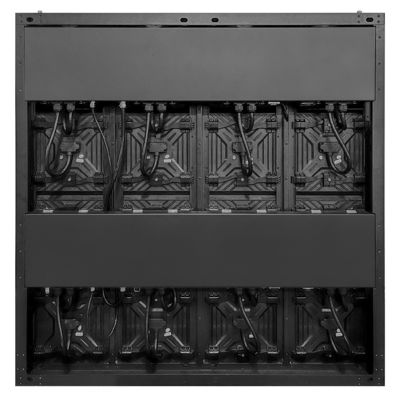

Full front maintenance,designed for wall-mounting projects.
Independently waterproof modules.
90°angle design.
High-end profile aluminum panel design.
Usage scenario:

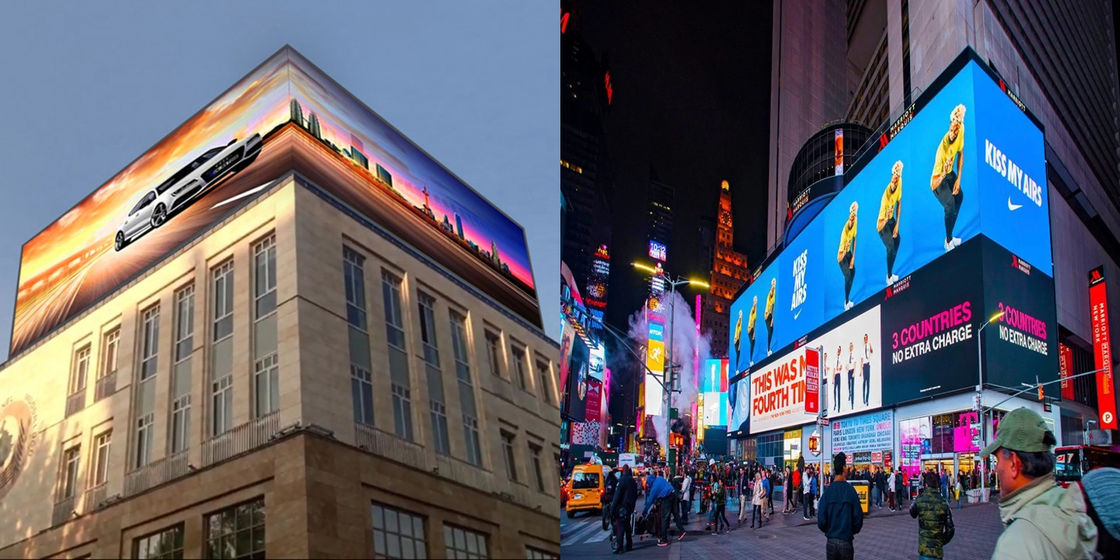

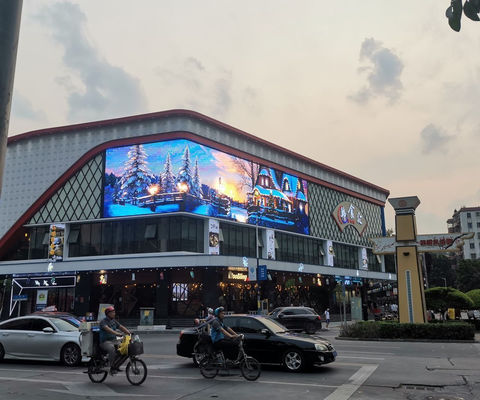

Sports center, outdoor advertising, airport highway advertising, large commercial complex wall advertising, naked eye 3D
Parameters of Gsurface-Ⅱ Series:
| Product | P3.9 | P4.8 | ||
| Pitch | 3.9mm | 4.8mm | ||
| Density(pixels/m²) | 65536 | 43264 | ||
| LED Type | SMD1921 | SMD1921 | ||
| Brightness | 5500nits | |||
| Scan Method | 1/8 | 1/7 | ||
| Panel Size | 1000x1000mm | |||
| Module Size | 250x250mm | |||
| Panel Material | Profile Aluminum | |||
| Panel Weight | 32kg | |||
| Protection Level | IP65 | |||
| Maintenance | Front Service | |||
| Max Power Consumption | 600W/m² | |||
| Average Power Consumption | 200W/m² | |||
| Refresh Rate | 3840Hz | |||
| Grey Scale | 13-16bit | |||
| Viewing Angle | H140°,V120° | |||
| Voltage | AC100~240V(50-60Hz) | |||
| Working Temperature | -30°C to 60°C | |||
| Working Humidity | 10%-90%RH | |||
| Color Temperature | 3000-9500K | |||
| Certifications | CE/ROHD/EMC/TUV/UL/CCC/FCC/ISO | |||
