P2.0mm LED Spherical Screen Series 360 Degree Full View Display Sizes Customized
Product Details:
| Place of Origin: | Shenzheng, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | LED Spherical Screen Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flightcase |
| Delivery Time: | 15-20Days |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | Sizes Can Be Customized |
| Supplier Type: | Original Manufacturer, ODM | Media Available: | Datasheet, Photo, EDA/CAD Models, Other |
| Pixel Pitch: | 1.8mm、2mm | Specification: | Circular Column |
| Touch Screen Type: | Capacitive | Brightness: | 800nits |
| Contrast Ratio: | 5000:1 | Color Depth: | 256 |
| IP Rating: | 34 | View Angle（H/V）: | H160°/V140° |
| Highlight: | Full View LED Spherical Screen,P2.0mm LED Spherical Screen,360 Degree LED Spherical Screen |
||
Product Description
P2.0mm LED Spherical Screen Series 360 Degree Full View Display Sizes Customized
Product Attributes
| Application | Indoor |
| Type | LED |
| Color | Full color |
| Panel Size | Sizes Can Be Customized |
| Supplier Type | Original manufacturer, ODM |
| Pixel Pitch | 1.8mm, 2mm |
| Specification | Circular Column |
| Touch Screen Type | Capacitive |
| Brightness | 800nits |
| Contrast Ratio | 5000:1 |
| Color Depth | 256 |
| IP Rating | 34 |
| View Angle (H/V) | H160°/V140° |
Product Description
P2.0 LED Spherical Screen Series 360 Degree Full View Display
- Ultimate HD Display: High contrast ratio for prominent brightness and darkness, high refresh rate for clearer images, and fine grayscale for delicate image effects.
- Wide Viewing Angle: 1,232,450 pixels per square meter delivers finer picture details with extremely high display clarity.

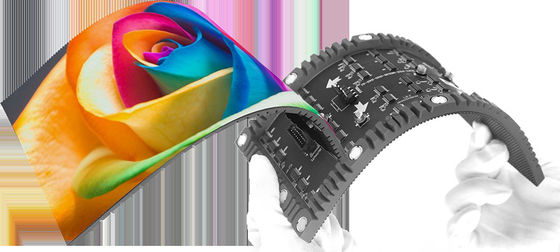

- Strong Flexibility: Flexible screen body with super bending angle allows free shaping. Lightweight design at 6kg/m² and thin 1.8mm profile enables minimalist, fast installation.
- Diverse Configurations: Available in columns, elliptical columns, inner/outer arcs, stripes, watermelon skin ball screens, triangular ball screens, six-sided panoramic ball screens, S-shapes, and spirals to meet all project requirements.
- Custom Spherical Screen: LED ball-shaped displays can be manufactured in any mode from indoor P1.8 to outdoor P20, with customizable diameter sizes.
Product Parameters
| Name | P1.25 | P1.5 | P2 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.25 | 1.5 | 2 |
| Density (pixels/m) | 5,049,120 | 2,190,324 | 1,232,450 |
| LED Type | SMD1212 | SMD1212 | SMD1212 |
| Brightness/m² | 800nits | 800nits | 800nits |
| Resolution (px) | 2512×2010 | 2094×1046 | 1570×785 |
| Cabinet Size (mm) | 1000×1000mm Customizable | ||
| Module Size (mm) | Customized | ||
| Cabinet Material | Sheet metal box | ||
| Cabinet Weight | 120Kg | ||
| Protection Level | IP43 | ||
| Viewing Distance | ≥1.25m | ≥1.5m | ≥2m |
| Display Color | 439.8 billion species | ||
| Max Power Consumption/m² | 1000W | ||
| Average Power Consumption/m² | 350W | ||
| Refresh Rate | 3840Hz | ||
| Grey Scale | 13-16bit | ||
| Viewing Angle | H140°, V140° | ||
| Input Voltage | AC100~240V (50-60Hz) | ||

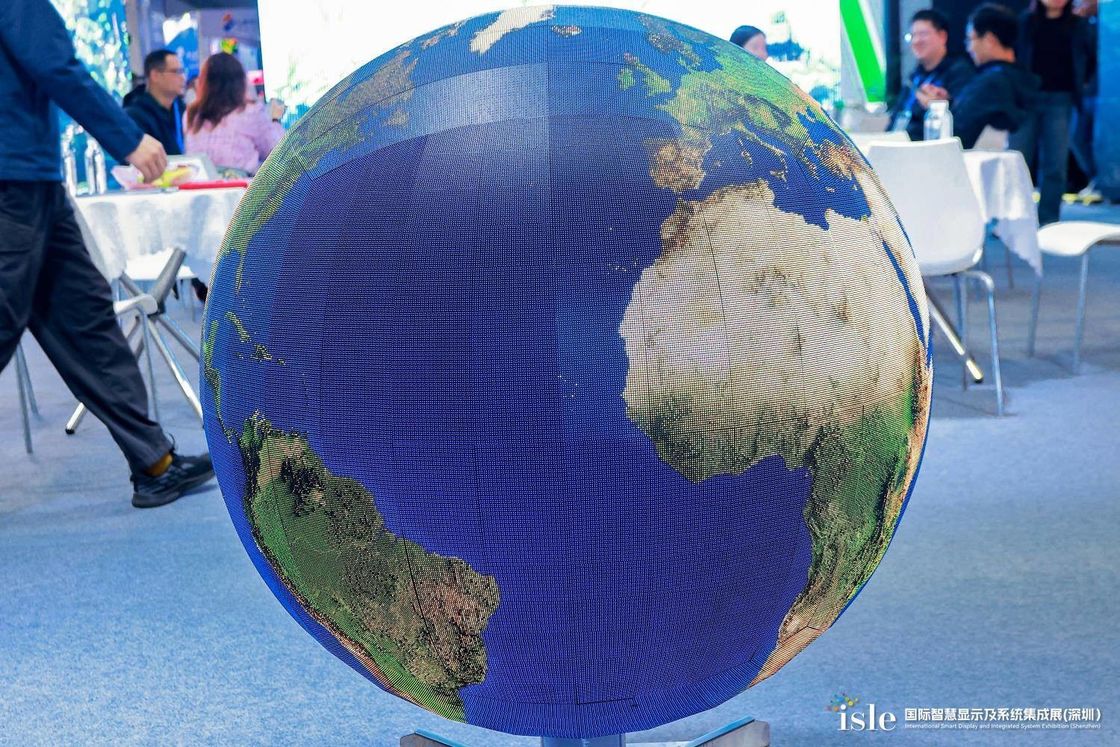

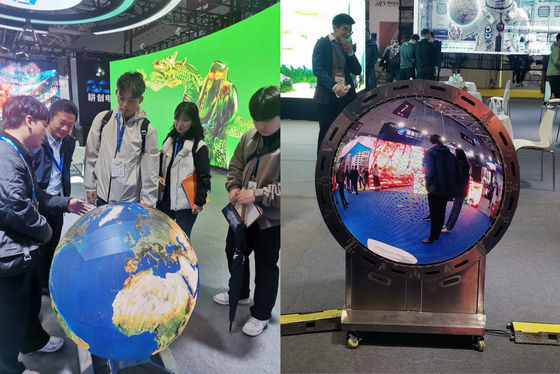

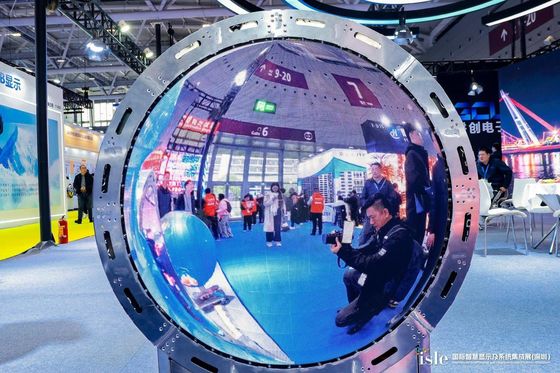

Product Images
