Conference Room Large Led Display Screen Full Front Service Matte Black Screen COB P0.9mm P1.2mm Definition
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | GTV-COB |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood,flight case,paper board |
| Delivery Time: | 15-20Days |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 600*337.5mm, |
| Pixel Pitch: | P0.9mm,1.25mm, 1.5625mm | Specification: | Digital Poster, Video Wall |
| Touch Screen Type: | Capacitive | Brightness: | ≥600nits, |
| Resolution: | 2k-8k | View Angle（H/V）: | H160°/V160°, |
| Pixels: | 284444 | LED Type: | COB |
| Module Size: | 300*168.5mm | Weight: | 4.2kg |
| Material: | Die-Casting Aluminum | Cabinet Maintenance: | Full Front Service |
| Highlight: | Full Front Service Led Display Screen,P0.9mm Led Display Screen,Matte Black Led Display Screen |
||
Product Description

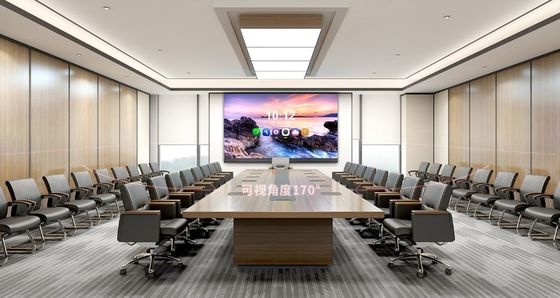

Matte black screen COB P0.9mm P1.2mm high-definition conference room large screen Led Display Screen
Product features:
Higher Pixel Pitch
With the innovation technology and years of experience, now we could produce the world’s finest pixel pitch: P0.9 and P1.25.P1.56;
Flip-chip Technology
The flip-chip structure improves luminous efficiency, has low thermal resistance and good heat dissipation, extends chip lifespan, and allows for smaller spacing.
Ultra-thin Design:

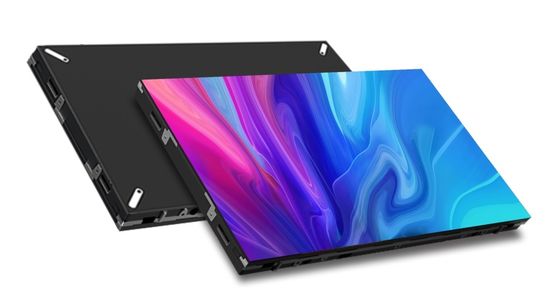

The casing features a die-cast aluminum design, making it very lightweight and as thin as 32mm. There’s no need for a steel structure, allowing for easy wall-mounted installation in a variety of settings.
Ultra-high Resolution

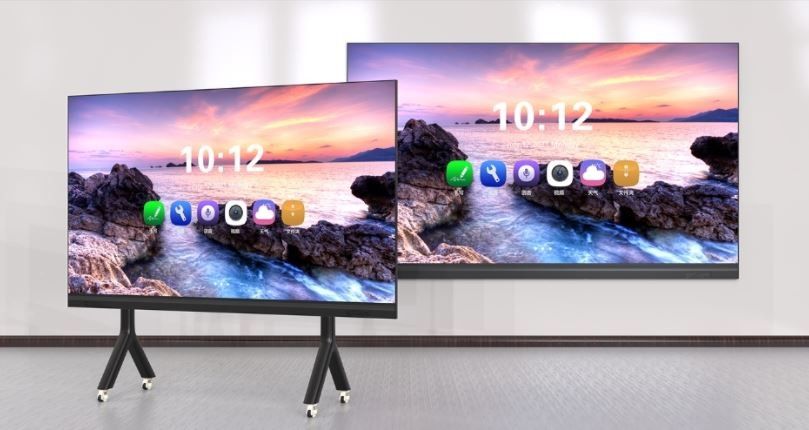

Full size layout from 75 inches to 220 inches, covering all ultra-high definitions of 2K, 4K, and 8K.
All-front Maintenance Design
Modules, power supplies, and all other accessories can be removed from the front, making front maintenance and installation more convenient.

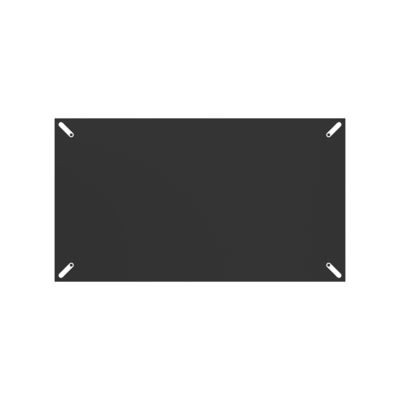

The modular magnetic design allows for quick and easy maintenance.
Parameters of COB Series:
| Product | P0.9 | P1.2 | P1.5 |
| Pitch | 0.9375mm | 1.25mm | 1.5625mm |
| Density(pixels/m²) | 1137777 | 640000 | 409600 |
| LED Type | Flip Chip COB | ||
| Brightness | 600nits | ||
| Scan Method | 1/40 | 1/40 | 1/48 |
| Panel Size | 600×337.5×29.2mm | ||
| Module Size | 150×168.5mm | ||
| Panel Material | Die-casting Aluminum | ||
| Panel Weight | 4.2kg | ||

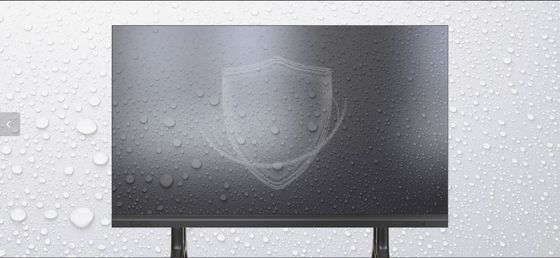

| Protection Level | IP50 | ||
| Maintenance | Full Front Service | ||
| Max Power Consumption | 275W/㎡ | 245W/㎡ | 205W/㎡ |
| Average PowerConsumption | 90W/㎡ | 80W/㎡ | 70W/㎡ |
