Private Custom Gstar-II P1.95 mm 7680Hz High Refresh Rate HD Display Screen For Indoor Fixed Installation Die-Cast Aluminum
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gstar-II P1.56.P1.953/P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Brand Name: | GCL | Product Name: | Gstar-II Series |
|---|---|---|---|
| Usage: | Indoor Rental | Panel Size: | 500x750x78mm/ 500x1000x78mm |
| Module Size: | 250*250mm | Viewing Angle: | H160°,V140° |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS | Average Power Consumption: | 150-180W |
| Refresh: | 7680Hz | Package:: | GOB |
| Material: | Die-Cast Aluminum | ||
| Highlight: | 7680Hz HD Display Screen,Fixed Installation HD Display Screen |
||
Product Description
GCL LED Video Walls New Gstar II indoorP1.95 P2.6 P2.97 P3.91 P4.8 High-Definition Display Screen
Model Number: P1.95 P2.6, P2.97, P3.91,

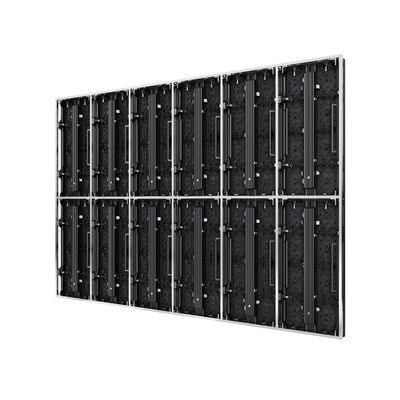

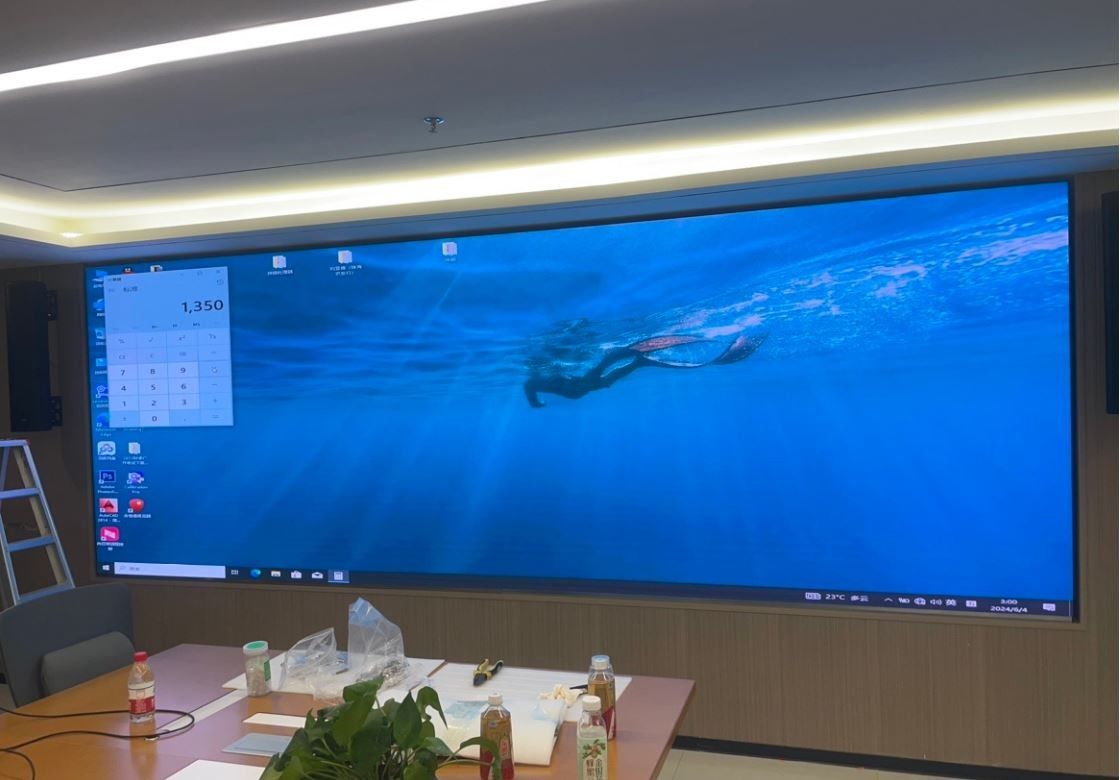

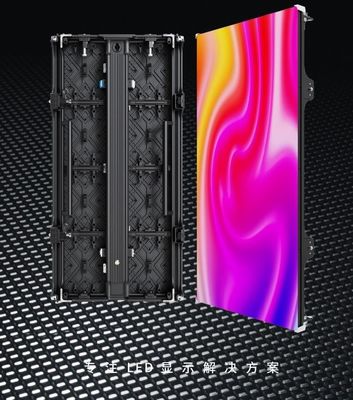

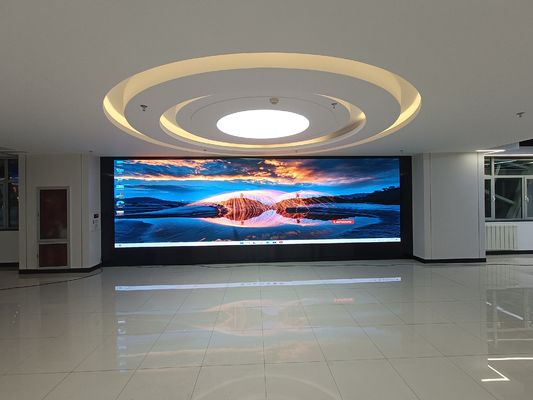

The Gstar-II series redefines flexibility and efficiency in indoor fixed installation LED displays. Crafted with die-cast aluminum cabinets, this cutting-edge product supports pixel pitches from P1.95 to P2.9 and features a standardized 500×1000mm cabinet size—ideal for seamless integration in both permanent installations and rental scenarios. Its adaptability makes it perfect for smart conference rooms, studios, commercial exhibitions, and immersive event spaces.
Product Features
Large cabinet Design: The 500×1000mm OR 500mm*750mm large cabinet reduces material usage and accelerates installation, slashing operational costs by up to 30%.
Full Front Maintenance: Modules, power supplies, and HUB boards can all be serviced from the front, minimizing downtime in high-traffic environments.
Space-Saving Installation: Ultra-slim profile (as thin as XXmm*) and front-access design enable flush wall mounting for sleek, unobtrusive visuals.
Creative Configurations: Supports 45° angle splicing and right-angle connections for curved displays or unique architectural integrations.
Enhanced Stability: Rigid module interlocking ensures vibration-resistant performance during transport or dynamic installations.
Premium Visuals: Low-gray-scale high-brightness technology delivers 20% higher contrast ratio, revealing crisp details in shadows and highlights.
Dual-Purpose Flexibility: Robust yet lightweight construction balances durability for rentals with refined aesthetics for permanent venues.
Combining industrial reliability with artistic precision, the Gstar-II empowers integrators to deliver stunning visuals while optimizing lifecycle costs
Product specifications:
| Product | P1.5 | P1.953 | P2.604 | P2.976 | P3.91 |
| Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Density(pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
| LED Type | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Brightness | 800nits | 800nits | 800nits | 800nits | 800nits |
| Scan Method | 1/32 | 1/16 | 1/24 | 1/21 | 1/16 |
| Panel Size | 500×750×78mm/500×1000×78mm | ||||
| Module Size | 250×250mm | ||||
| Panel Material | Die-casting Aluminum | ||||
| Panel Weight | 14kg | ||||
| Protection Level | IP31 | ||||
| Maintenance | Module Front Service &Rear Service | ||||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 550W/㎡ | 550W/㎡ | 550W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ |
| Refresh Rate | 3840Hz | ||||
| Grey Scale | 13-16bit | ||||
| Viewing Angle | H160°,V140° | ||||
| Voltage | AC100~240V(50-60Hz) | ||||
