High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | GA |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:101X116X13 cm |
| Delivery Time: | 15-20Days |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Panel Size: | 960*960 Mm | Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment |
| Function: | SDK | Pixel Pitch: | P4mm\P5mm\6mmm\8mm, 10mm |
| Brightness: | 6000-10000nits | Pixel Density: | 15625 |
| Contrast Ratio: | 9000:1 | Lifespan (hours): | 100000 |
| Resolution: | 3840Hz | View Angle（H/V）: | H140°,V120° |
| Module Size: | 480*320mm | Cabinet Material: | Alumium |
| LED Type: | SMD2727，DIP346 | After-sales Service Provided: | 3 Years |
| Cabinet Weight: | 29.48KG | Maintenance: | Front & Rear Service |
| Grey Scale: | 13-16 Bit | ||
| Highlight: | Outdoor LED Display 10000nits,Outdoor Advertising Screens LED Display,High Brightness Outdoor LED Display |
||
Product Description
GA Product Features Introduction:
Outdoor LED Display GA Series: Illuminate the Outdoors, Infinite Brilliance
Looking to create a stunning visual spectacle outdoors? The GA Series Outdoor LED Display makes it effortlessly achievable!

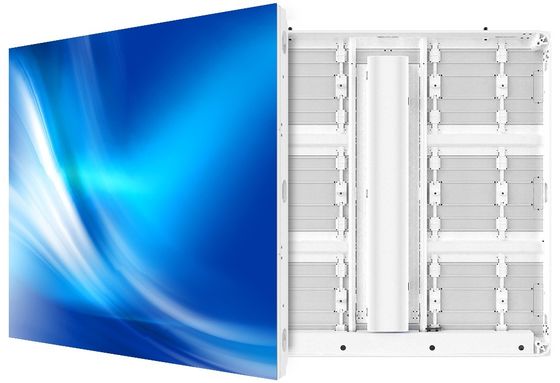

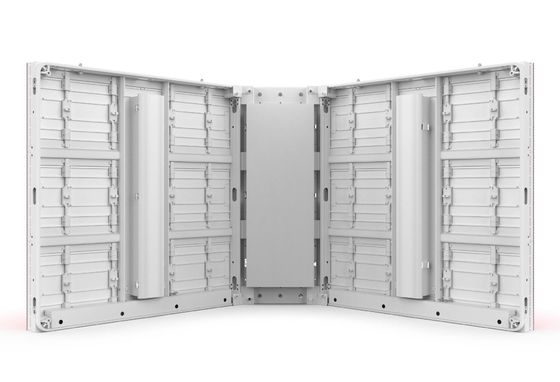

Featuring a standardized 960*960mm cabinet design, it encompasses a variety of pixel pitches including P4, P5.7, P6.67, P8, and P10DIP, catering to diverse scene requirements. The high compatibility between modules, back shells, and cabinets
ensures easier installation and maintenance.
With fully enclosed modules and dual IP65 waterproof rating, it stands fearless against wind and rain, offering peace of mind for outdoor use. Excellent thermal performance allows for space-saving installation, energy efficiency, and eco-friendliness.
The dual-pressure power supply design enhances energy efficiency. Equipped with brand gold wire LED beads, it boasts ten-thousand-level high brightness with a mere 335W power consumption, delivering clear, vibrant, and stable images.
The GA Series Outdoor LED Display, with its superior quality and outstanding performance, is your ideal choice for outdoor display!
Contact us now to embark on a new outdoor visual experience!
| Product | P5.71 | P6.67 | P8 | P10 | P10D |
| Pitch | 5.71mm | 6.67mm | 8mm | 10mm | 10mm |
| Density(pixels/m²) | 30625 | 22500 | 15625 | 10000 | 10000 |
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 | DIP346 |
| Brightness | 6500nits | 6500nits | 6500nits | 6500nits | 10000nits |
| Scan Method | 1/7 | 1/6 | 1/4 | 1/2 | 1/4 |
| Panel Size | 960×960mm | ||||
| Module Size | 480×320mm | ||||
| Panel Material | Profile Aluminum | ||||
| Panel Weight | 30kg | 29.5kg | 29.5kg | 29.5kg | 38.8kg |
| Protection Level | IP65 | ||||
| Maintenance | Front&Rear Service | ||||
| Max Power Consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 350W/㎡ |
| Average Power Consumption | 210W/㎡ | 210W/㎡ | 210W/㎡ | 210W/㎡ | 110W/㎡ |
| Refresh Rate | 3840Hz | ||||
| Grey Scale | 13-16bit | ||||
| Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H140°,V120° | H100°,V50° |
| Voltage | AC96~264V(50-60Hz) | ||||
| Working Temperature | -30℃ to 60℃ | ||||
| Working Humidity | 10%-90%RH | ||||
| Color Temperature | 3000-9500K | ||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||
