P1.5mm HD Indoor Event Rental Display Screen Stage Background Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gstar-II P1.953/P2.5/P2.604/P2.976/P3.91/P4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Highlight: | HD Stage Background Video Wall,P1.5mm Stage Background Video Wall,Indoor Event Rental Display Screen |
||
|---|---|---|---|
Product Description
GOB P1.5mm HD Indoor Event Rental Display Screen Stage Background Video Wall
Model Number: P1.5, P1.9, P2.6

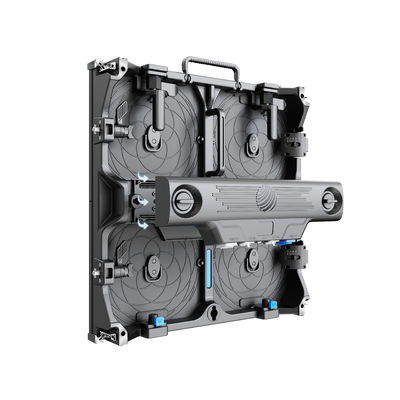

Double protection Thin and light design
Thickness 72mm, weight 7.4kg/ cabinet,Modules are made of GOB technology, touchable, anti-scratch
The four corners of the cabinet anti-collision design to prevent the collision of light beads in the process of transportation and disassembly
High compatibility Platform-based setup
The module is not divided into top and bottom, and can be installed at will, The module comes with a fool-proof design of the positioning post, which will never be plugged in reverse, which is easy to maintain and install
Platform-based setup, one hub for all point spacing
High-precision light steel material
The embedded module design makes the module thinner and lighter, The bottom shell is made of high-precision light steel material, which has the characteristics of light weight, high strength, corrosion resistance and no deformation
Professional Arc lock
Optional -7.5°~10° arc lock, can be combined with internal and external wave screen, easy to adjust
The rubber strip on the side of the cabinet can effectively prevent light leakage and ensure the arc effect
Front and rear maintenance
Module can be maintained front and rear
Gprime Series Parameters:
| Product | P1.5 | P1.9 | P2.6 |
| Pitch | 1.5625mm | 1.953mm | 2.604mm |
| Density(pixels/m²) | 409600 | 262144 | 147456 |
| LED Type | SMD1010 | SMD1515 | SMD2020 |
| Brightness | 1200nits | 1200nits | 1200nits |
| Scan Method | 1/20 | 1/16 | 1/16 |
| Panel Size | 500×500×72mm | ||
| Module Size | 250×250×13mm | ||
| Panel Material | Die-casting Aluminum | ||
| Panel Weight | 7.45kg | ||
| Protection Level | IP31 | ||
| Maintenance | Module Front Service &Rear Service | ||
| Max Power Consumption | 600W/㎡ | ||
| Average Power Consumption | 150W/㎡ | ||
| Refresh Rate | 7680Hz | ||
| Grey Scale | 13-16bit | ||
| Viewing Angle | H140°,V140° | ||
| CurveDegrees(Optional) | ﹣7.5°－﹢10° | ||
| Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | -20℃ to 60℃ | ||
| Working Humidity | 10%-90%RH | ||
| Color Temperature | 3000-9500K | ||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||
