SMD 1.5 P1.9 P2.6mm 3840Hz Intdoor Rental LED Display For Stage Background Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gstar-II P1.953/P2.5/P2.604/P2.976/P3.91/P4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor | Screen Type: | Capacitive |
|---|---|---|---|
| Pixels: | P1.5\1.95mm | Panel Size: | 500*500mm*72mm |
| Module Size: | 250*250813mm | Panel Weight: | 7.45Kg |
| Brightness: | 1200nits | CurveDegrees(Optional): | ﹣7.5°－﹢10° |
| Highlight: | SMD Intdoor Rental LED Display,Stage Background Intdoor Rental LED Display,LED Stage Background Video Wall |
||
Product Description
SMD 1.5 P1.9 P2.6mm 3840Hz Intdoor Rental LED Display For Stage Background Video Wall
Model Number: P1.5, P1.9, P2.6
1,Double protection:
Modules are made of GOB technology, touchable, anti-scratch;
The four corners of the cabinet anti-collision design to prevent the collision of light beads in the process of transportation and disassembly；
2,high compatibility:
The module is not divided into top and bottom, and can be installed at will；Platform-based setup, one hub for all point spacing；

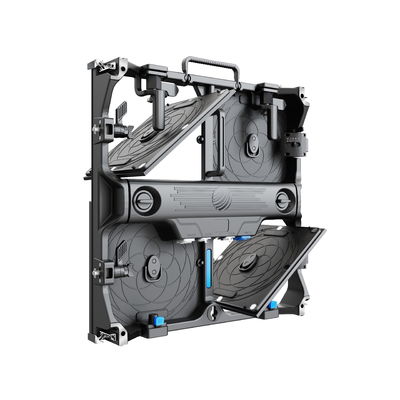

The embedded module design makes the module thinner and lighter；
The bottom shell is made of high-precision light steel material, which has the characteristics of light weight, high strength, corrosion resistance and no deformatio；
3,Extreme display effect
High quality lamp bead, 7680Hz high refresh rate, 1200nits high brightness, 16bit high contrast, can effectively reduce the flicker phenomenon of the screen, provide a more smooth visual effect, restore the best visual experience;

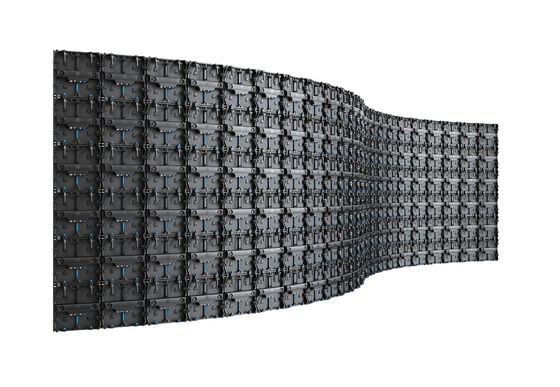

4,Professional Arc lock
Optional -7.5°~10° arc lock, can be combined with internal and external wave screen, easy to adjust;
The rubber strip on the side of the cabinet can effectively prevent light leakage and ensure the arc effect；

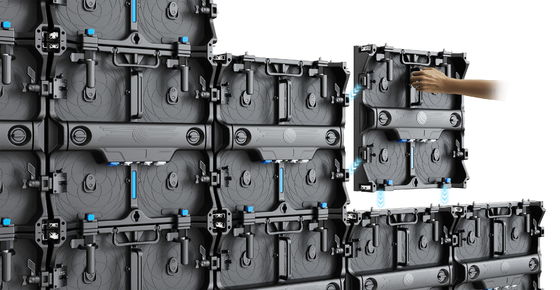

5,One hand operation, 3 seconds to complete the installation
The handle is located in the middle of the cabinet, convenient for one-hand operation;
The upper and lower lock can be operated with one hand, and it can be automatically inserted and installed quickly.
Gprime Series Parameters:
| Product | P1.5 | P1.9 | P2.6 |
| Pitch | 1.5625mm | 1.953mm | 2.604mm |
| Density(pixels/m²) | 409600 | 262144 | 147456 |
| LED Type | SMD1010 | SMD1515 | SMD2020 |
| Brightness | 1200nits | 1200nits | 1200nits |
| Scan Method | 1/20 | 1/16 | 1/16 |
| Panel Size | 500×500×72mm | ||
| Module Size | 250×250×13mm | ||
| Panel Material | Die-casting Aluminum | ||
| Panel Weight | 7.45kg | ||
| Protection Level | IP31 | ||
| Maintenance | Module Front Service &Rear Service | ||
| Max Power Consumption | 600W/㎡ | ||
| Average Power Consumption | 150W/㎡ | ||
| Refresh Rate | 7680Hz | ||
| Grey Scale | 13-16bit | ||
| Viewing Angle | H140°,V140° | ||
| CurveDegrees(Optional) | ﹣7.5°－﹢10° | ||
| Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | -20℃ to 60℃ | ||
| Working Humidity | 10%-90%RH | ||
| Color Temperature | 3000-9500K | ||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||
