Ggalaxy 500*500mm P1.95 P2.5 Indoor Wall Mounted LED Video Wall With 7680 Hz Refresh Rate
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Ggalaxy |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case, Ply-wooden case |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Conference Room | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*500mm | Brightness: | 1200cd/sqm |
| Module Size: | 250*250mm | Refresh Rate: | 3840Hz |
| LED Chip: | SMD1212 | Power Supply: | Meanwell |
| Viewing Angle: | 160H/140V | Scan Mode: | 1/20Scan |
| Cabinet Material: | Die-casting Alumium | Weight: | 7.5Kg/panel |
| IP Rate: | IP43/IP43 | Pixel Pitch: | P1.95mm P2.5mm |
| Port: | Shenzhen Port | ||
| Highlight: | Indoor Wall Mounted LED Video Wall,P2.5 Indoor LED Video Wall,500*500mm Indoor LED Video Wall |
||
Product Description
500*500mm Indoor Full Colour P1.95 P2.5 mm Video Wall Led Display Screen
Product features:
Easy Installation Without Steel Structure
The small-sized screens eliminate the need for a steel frame, featuring lightweight and convenient characteristics.
Effortless wall mounting, saving on project structural costs and installation space.
Wide Viewing Experience:
With a horizontal viewing angle of 160° and a vertical viewing angle of 140°, the display allows for a clear view of the content from multiple angles; the surface flatness of the display screen is within ≤1mm.
High Definition And High Refresh Rate
The 7680Hz high refresh rate display technology effectively reduces screen flicker, protecting viewers' eyes and providing a smoother visual experience for optimal viewing.

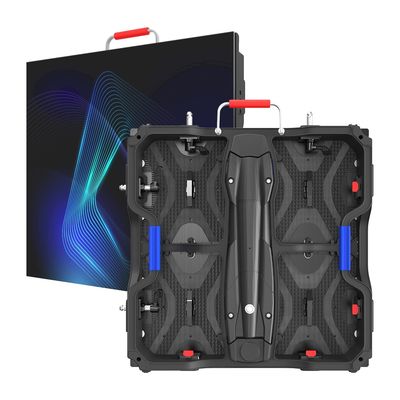

Lightweight and easy to install:
The lightweight die-cast aluminium casing is as thin as 8mm, and the internally curved handle design facilitates convenient installation.
Wall-Mount Installation:
The lightweight design of the unit allows small screens to be easily mounted on the wall without a heavy steel frame, saving both costs and installation space.
Modular design for easy maintenance:
specifically designed for wall-mounted projects, it eliminates the need for a dedicated maintenance passage. Maintenance can be easily performed by removing just two screws, allowing the power box to be detached effortlessly for servicing.
Parameters of Ggalaxy Series:
| Product | P1.953 | P2.5 | P2.604 | P2.976 | P3.91 |
| Pitch | 1.953mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm |
| Density(pixels/m²) | 262144 | 160000 | 147456 | 112896 | 65536 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Brightness | 700nits | 800nits | 800nits | 800nits | 800nits |
| Scan Method | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Panel Size | 500×500mm | ||||
| Module Size | 250×250mm | ||||
| Panel Material | Die-casting Aluminum | ||||
| Panel Weight | 8kg | ||||
| Protection Level | IP31 | ||||
| Maintenance | Module Front Service &Rear Service | ||||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 550W/㎡ | 550W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 180W/㎡ | 180W/㎡ |
| Refresh Rate | 3840Hz | ||||
| Grey Scale | 13-16bit | ||||
| Viewing Angle | H160°,V140° | ||||
| Voltage | AC100~240V(50-60Hz) | ||||
| Working Temperature | -20℃ to 60℃ | ||||
| Working Humidity | 10%-90%RH | ||||
| Color Temperature | 3000-9500K | ||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||
