P2.5mm P0.93mm COB LED Video Wall 600*337.5mm for Indoor Display 4.2Kg/panel
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gtv COB |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case, Ply-wooden case |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Conference Room | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 600*337.5mm | Brightness: | 800cd/sqm |
| Module Size: | 150*168.75mm | Refresh Rate: | 3840Hz |
| Power Supply: | Meanwell | Viewing Angle: | 170H/170V |
| Cabinet Material: | Die-casting Alumium | Weight: | 4.2Kg/panel |
| IP Rate: | IP43/IP43 | Pixel Pitch: | P0.93mm P2.5mm |
| Port: | Shenzhen Port | ||
| Highlight: | Indoor Display COB LED Video Wall,600*337.5mm COB LED Video Wall,P2.5mm COB LED Video Wall |
||
Product Description
600*337.5mm P0.9 P.125 1.5mm Indoor COB HD Video Wall
Product features:
Excellent Display Effect:
Blacker blacks and brighter whites present a distinct difference between deep black and bright white, with 16-bit color depth, ultra-high contrast, enhancing the clarity and detail of the image.

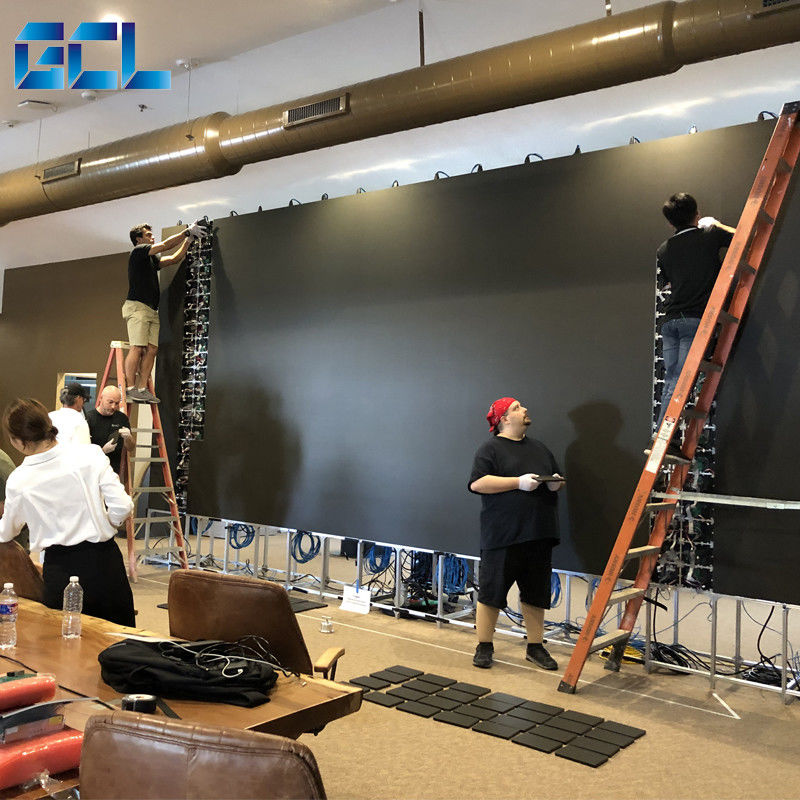

Lightweight Design, Quick Installation
Fully die-cast aluminum housing design, weighing 4.2 kg, features a lightweight and convenient characteristic, providing very favorable conditions for installation with low load requirements on the steel structure
Screen Off Black Glossy
The screen-off mirror black glossy finish achieves ultra-high consistency in ink color and brightness, providing excellent display effects. The single-module calibration technology can rival the appearance of LCD screens.
Flip-chip Technology
The flip-chip structure improves luminous efficiency, has low thermal resistance and good heat dissipation, extends chip lifespan, and allows for smaller spacing.
Parameters of GCL GTV COB Series:
| Product | P0.9 | P1.2 | P1.5 |
| Pitch | 0.9375mm | 1.25mm | 1.5625mm |
| Density(pixels/m²) | 1137777 | 640000 | 409600 |
| LED Type | Flip Chip COB | ||
| Brightness | 600nits | ||
| Scan Method | 1/40 | 1/40 | 1/48 |
| Panel Size | 600×337.5×29.2mm | ||
| Module Size | 150×168.5mm | ||
| Panel Material | Die-casting Aluminum | ||
| Panel Weight | 4.2kg | ||
| Protection Level | IP50 | ||
| Maintenance | Full Front Service | ||
| Max Power Consumption | 275W/㎡ | 245W/㎡ | 205W/㎡ |
| Average PowerConsumption | 90W/㎡ | 80W/㎡ | 70W/㎡ |
| Refresh Rate | ≥3840Hz | ||
| Grey Scale | 13-16bit | ||
| Viewing Angle | H170°,V170° | ||
| Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | -20℃to 60℃ | ||
| Working Humidity | 10%-90%RH | ||
| Color Temperature | 3000-9500K | ||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||
