High Definition Waterproof P10mm LED Display Screen Around Football Fields And Sports Venues
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsport |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | plywood,flight case,paper board |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | FULL COLOR |
|---|---|---|---|
| Panel Size: | Customized | Brightness: | 6500nits |
| Module Size: | 320*160mm | Cabinet Material: | Steel |
| Scan Method: | 3/S | Cabinet Weight: | 35kg/m2 |
| LED Type: | SMD3535 | Usage: | Sport |
| Protection Level: | IP65 | Cabinet Service: | Rear Service |
| Warranty: | 3 Years | Pixel Pitch: | P6 P8 P10mm |
| Port: | Shenzhen | ||
| Highlight: | Waterproof P10mm LED Display Screen,Sports Venues LED Display Screen,High Definition LED Display Screen |
||
Product Description

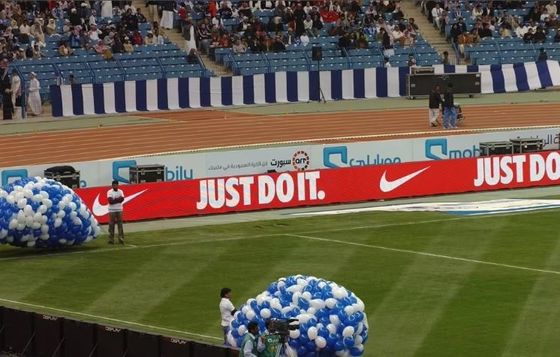

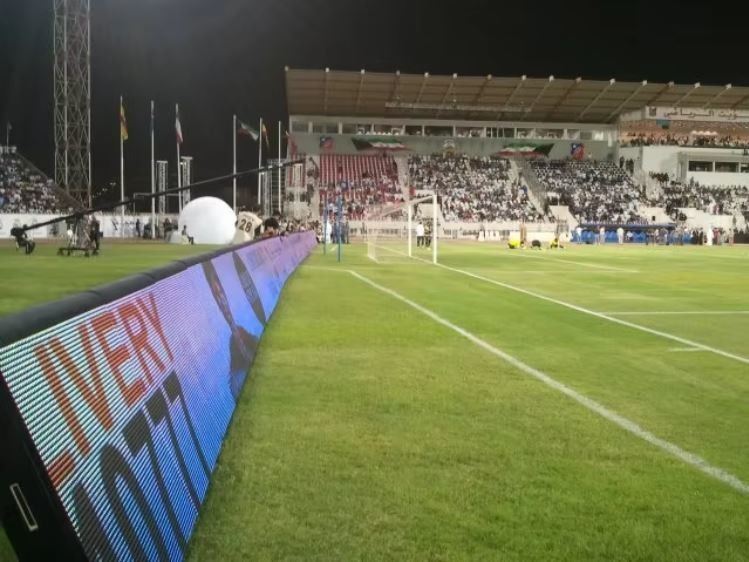

High definition waterproof P10mm LED display screen around football fields and sports venues
1. Seamless die-casting box body, seamless splicing
2. GCL's self-developed excellent cooling system:
Super strong and ultra fast heat dissipation, and the box is silent to ensure stable operation of the product.
3. One box with multiple uses:
Can be used for advertising fixation
Add suspension beams and aviation plugs to quickly transform into rental products
Add top cover and bracket to turn into LED screen for the stadium
4. High cost-effectiveness:
The price of the iron box, the corrosion resistance of the aluminum magnesium alloy material, and its non rusting properties;

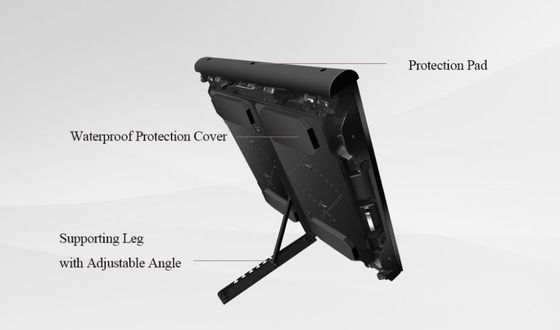

5. The stadium screen has an independent support structure and can be adjusted from multiple angles

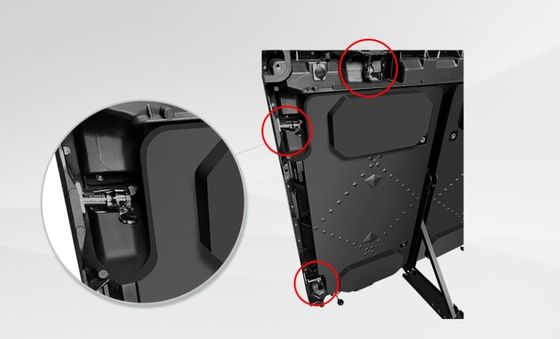

6. Easy maintenance
Front and rear maintenance design, allowing for quick replacement of power supplies and modules
7. Installation and disassembly, fast and convenient
8. 160 degree ultra wide viewing angle, unobstructed line of sight in any direction;
| Product | P6 | P8 | P10 |
| Pitch(mm) | 6 | 8 | 10 |
| Density(pixels/m2) | 27777 | 15625 | 10000 |
| LED Type | SMD3535 | ||
| Brightness(nits) | 60000 | 6000 | 6500 |
| Scan Method | 1/8 | 1/4 | 1/3 |
| Cabinet Size(mm) | Customized | ||
| Module Size | 192*192 | 256*128 | 320*160 |
| Cabinet Material | Magnesium Diecasting | ||
| Cabinet Weight | 35kg/㎡ | ||
| Protection Level | IP65 | ||
| Cabinet Maintenance | Rear Service | ||
| Max Power Consumption | 750w/㎡ | 800w/㎡ | 720w/㎡ |
| Average Power Consumption | 250w/㎡ | 300w/㎡ | 240w/㎡ |
| Refresh Rate | 2880-3840Hz | ||
| Grey Scale | 16 bit | ||
| Viewing Angle | H140°,V140° | ||
| Voltage | AC100~240V(50-63Hz) | ||
| Working Temperature | -30 ℃ - + 65 ℃ | ||
| Working Humidity | 10% -- 90%RH | ||
| Color Temperature | 6500-9500K | ||
| Certificationa | EMC/CE/ROHS/CCC/FCC/ISO | ||
