Indoor P3 LED Screen Display Module with IP65 Protection Level and Flexible Design
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Grock |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | High Brightness P3 SMD outdoor full color advertising outdoor led display<br>plywood,flight case,paper board |
| Delivery Time: | 15-20Days |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor | Color: | FULL COLOR |
|---|---|---|---|
| Panel Size: | Customized | LED Brand: | Nationstar |
| LED Configuration: | 1R1G1B | Control System: | Novastar/Colorlight |
| Warranty: | 3 Years | LED Chip: | Epistar |
| Lifespan: | 100,000 Hours | Protection Level: | IP65 |
| Power Supply: | G-Energy/Rong Electronic/Mean Well | Sample Available: | Yes |
| Pixel Pitch: | P1.875，P3 | Port: | Shenzhen |
| Highlight: | P3 Indoor LED Screen Display Module,LED Screen Display Module IP65,Flexible LED Screen Display Module |
||
Product Description
Curved led tv screen Full Color indoor module 3 flexible LED screen display P1.875 ,P3 Flex
High refresh rate high-definition display:
Ultra high refresh rate, truly achieving HDR dynamic restoration; The playback screen has no shaking, ghosting, or water ripples
Low gray high brightness technology:
·Even at low brightness levels of 100cd/㎡~300cd/㎡, it can perfectly present dark details, even when viewed up close
There may be graininess, blurriness, and distorted images
Support customization to meet diverse needs:

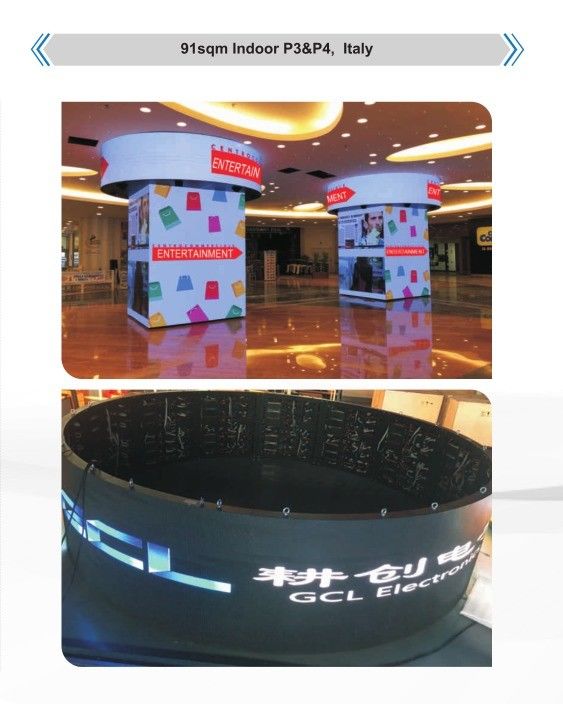

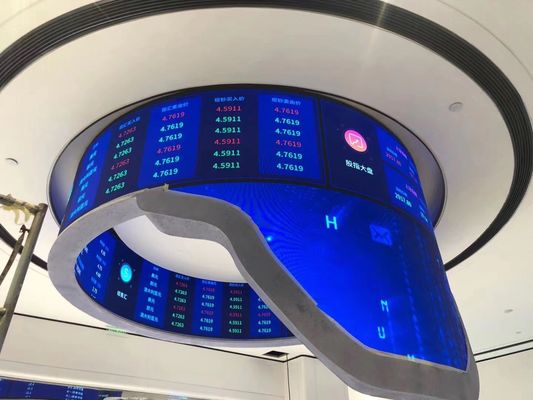

·Support customization: columns, elliptical columns, inner and outer arcs, strips, spheres, S-shapes, spiral installations, etc., to meet all project requirements And application scenarios；
Easy and fast installation and maintenance:
·Adopting a strong magnetic adsorption installation method, direct adsorption is convenient for both installation and maintenance
·Seamless frameless splicing, flatness ≥ 0.1mm, uniform color distribution；

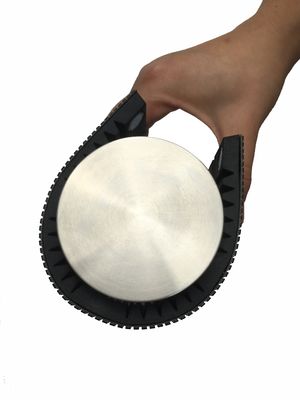

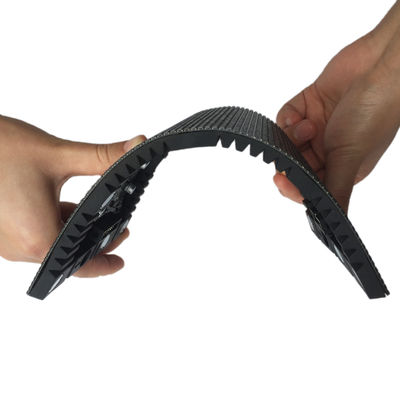

Lightweight and Soft:
·Silicone bottom shell makes the unit board softer, supports large angle display, is tough and durable, has a long service life, strong adhesion, does not peel off, and the lamp board does not curl；
1.Very flexible to shape any curve screens,and easy installation.
3.Size is customized,for detail quotation including the structure support please reach us!
| 3Pixel Pitch (mm) | 1.875 | 3 |
| Led Light | SMD 1515 | SMD2121 |
| Module Resolution (PX* PX) | 208*104 | 80*40 |
| Module Size(mm) | 240*120*28 | |
| Brightness (CD/㎡) | 900 | |
| Horizontal Viewing Angle (Deg) | 140 | |
| Vertical Viewing Angle (Deg) | 140 | |
| Refresh Rate (Hz) | 1920-3840 | |
| Input Voltage (V) | 110-240V | |
| Input Frequency (Hz) | 60 | |
| Storage Temperature (℃) | Storage:-30℃ ～80℃ | |
| Working Temperature(℃) | Working: -40℃ ～ 65℃ | |
| Working Humidity (RH) | 10%－90%RH | |
| With Bottom Shell | Yes | |
| Waterproof Level (Front/Rear) | IP34 | |
| Working Environment | Indoor | |
| Installation Type | Fixed | |
