Indoor Giant Led Screen P2 LED Advertising Video Wall Panel with Scan Method 1/20
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gspark |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Flight case, Ply-wooden case |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor, Conference Room | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 640*480mm, 640*480mm, 640x480mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other, Video |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies, Education, Hotel Lobby, School Classroom, Exhibition Centre Hallway | Pixel Pitch: | 1.5mm,1.8mm,2mm,2.5mm, |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 1000nits, 1000nits, 1000nits | Pixel Density: | 62500, 62500 |
| Lifespan (hours): | 100,000, 100,000 | IP Rating: | IP34, IP34 |
| Resolution: | 2k-4k | View Angle（H/V）: | H160°/V140°, H160°/V140° |
| Module Size: | 320*160mm | Refresh Rate: | 3840Hz |
| LED Chip: | SMD2121 | Viewing Angle: | H160°/V140° |
| Scan Method: | 1/20 | Cabinet Material: | Die-casting Alumium |
| Weight: | 8.5Kg/panel | IP Rate: | IP34 |
| Port: | Shenzhen | ||
| Highlight: | Indoor Giant Led Screen,P2 Led Advertising Video Wall Panel,Scan Method 1/20 Led Screen |
||
Product Description
Led Display Gspark P1.8 P2mm Led Advertising Video Wall Panel Indoor Giant Led Screen
Features:
1.100% front maintenance indoor led display;
2. Full redundancy:power supply,data,receiving card;

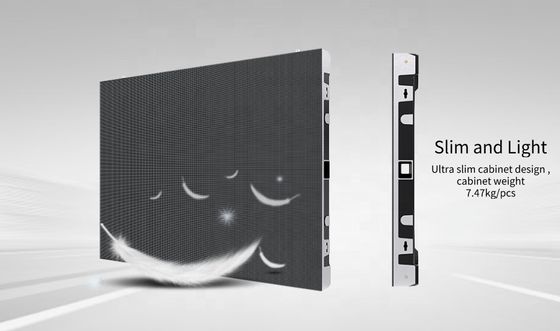

3. Ultra slim design,depth only 63mm;
4. HD led screen`s ratio is 16:9;
5. Connectors only,no cables,more stable;
6. 3840Hz high refresh rate,5000:1 high contrast ratio:
Parameters of Gspark Series
| Product | P1.5 | P1.86 | P2 | P2.5 | P3.07 | P4 |
| Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.07mm | 4mm |
| Density(pixels/m²) | 422500 | 288906 | 250000 | 160000 | 105625 | 62500 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Brightness | 600nits | 700nits | 700nits | 700nits | 700nits | 700nits |
| Scan Method | 1/52 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
| Panel Size | 640×480mm | |||||
| Module Size | 320×160mm | |||||
| Panel Material | Die-casting Aluminum | |||||
| Panel Weight | 7 kg | |||||
| Protection Level | IP31 | |||||
| Maintenance | Full Front Service | |||||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ |
| Refresh Rate | 3840Hz | |||||
| Grey Scale | 13~16bit | |||||
| Viewing Angle | H160°,V160° | |||||
| Voltage | AC100~240V(50-60Hz) | |||||
Want to Know more details about this product
