Waterproof Full Color LED Display P3.91 P4.8 P6.25 P7.81 P10mm for Outdoor Adverting

Brand Name: GCL
Model Number: Gsurface V
MOQ: Min. order: 20
Price: Price to be discussed
Packaging Details: Single package size:101X116X13 cm
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
EMC/CE/ROHS/CCC/FCC/BIS
Application:
Outdoor
Type:
LED
Color:
Full Color
Panel Size:
1000*1000mm
Supplier Type:
Original Manufacturer
Media Available:
Datasheet, Photo, EDA/CAD Models, Other
Use:
Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Pixel Pitch:
3.9mm,4.8mm,6.25mm,7.81mm,10mm.
Specification:
Digital Poster, Video Wall
Touch Screen Type:
Capacitive
Brightness:
6000-10000nits
Pixel Density:
22500 Dots/㎡
Contrast Ratio:
9000:1
Color Depth:
256
Lifespan (hours):
100,000
IP Rating:
IP65
HS Code:
8528591090
Resolution:
2k-4k
View Angle（H/V）:
H160°,V120°
Highlight:

Waterproof Full Color LED Display

,

P3.91 Full Color LED Display

,

P6.25 Full Color LED Display

Product Description

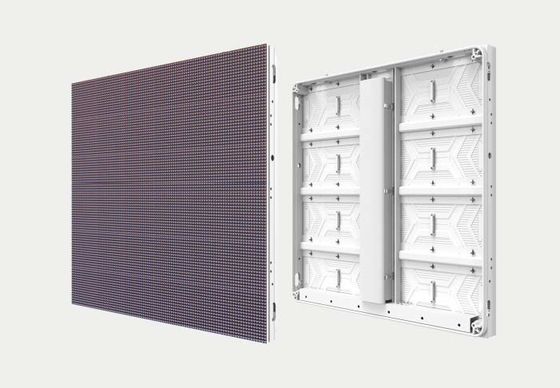

Gsurface V Outdoor P3.91 P4.8 P6.25 P7.81 P10mm Waterproof Full Color LED Display Adverting Billboard



Product Features:

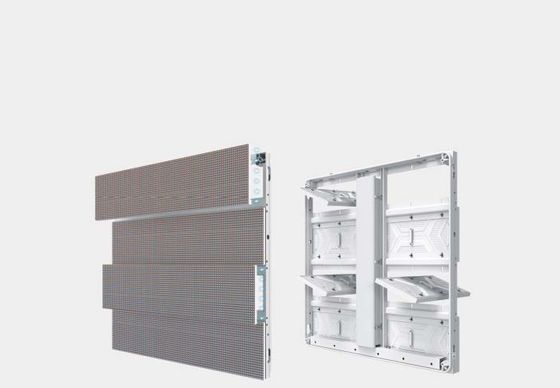

Supports both front and rear maintenance methods

- The module can be removed and maintained from both the front and rear, making installation and maintenance more convenient.
- The independent power box and module power and module signal adopt a modular design, meeting a wider range of installation environment requirements!



Efficient Self cooling performance:

The power box is equipped with a built-in fan for heat dissipation, and the box, module, and power back cover have excellent self cooling effect, eliminating the need for air conditioning to cool down and saving electricity



High refreshSwitching without blinking:

Adopting a high refresh rate IC with a refresh rate of 3840Hz, the playback screen has no shaking, ghosting, or water ripple phenomenon!



Multiple sizes available, supports mixed box combinations

- Various size specifications available: 1000×1000mm / 1000×750mm / 1000×500mm
- Supports mixing different specifications of cabinets, allowing flexible product matching, suitable for various installation spaces, and helps reduce inventory costs.

Waterproof Module；Support box mixing；Front and rear maintenance；Modules are left and right；Express Setup；High definition and brightness



Main parameters of Gsurface V:

Product P3.91 P4.81 P6.25 P7.81 P10.4
Pitch 3.91mm 4.81mm 6.25mm 7.81mm 10.4mm
Density(pixels/m²) 65536 43264 25600 16384 9216
LED Type SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Brightness 5500nits 5500nits 6500nits 6500nits 6500nits
Scan Method 1/8 1/13 1/6 1/4 1/2

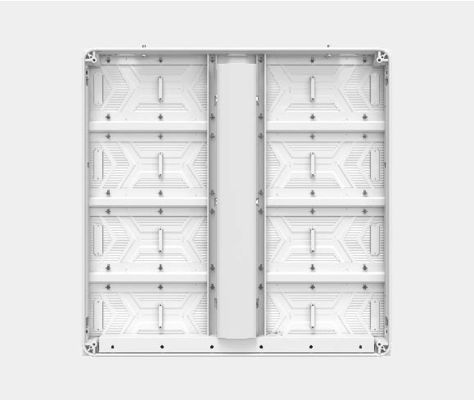

Panel Size 1000×1000×78mm

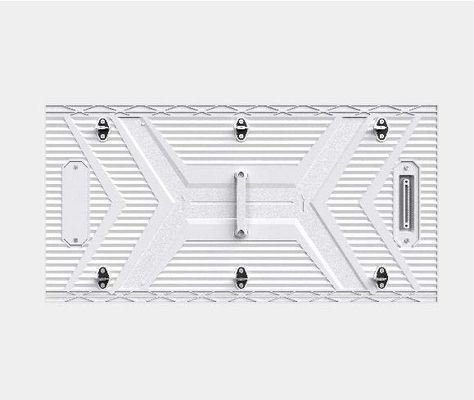

Module Size 500×250mm
Panel Material Profile Aluminum
Panel Weight 29kg
Protection Level IP65
Maintenance Front&Rear Service
Max Power Consumption 600W/㎡ 600W/㎡ 650W/㎡ 650W/㎡ 650W/㎡
Average Power Consumption 200W/㎡ 200W/㎡ 210W/㎡ 210W/㎡ 210W/㎡
Refresh Rate 3840Hz
Grey Scale 13-16bit
Viewing Angle H140°,V120° H140°,V120° H140°,V120° H140°,V120° H140°,V120°
Voltage AC100~240V(50-60Hz)
Working Temperature ’-30℃ to 60℃
Working Humidity 10%-90%RH
Color Temperature 3000-9500K
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO



Waterproof Full Color LED Display P3.91 P4.8 P6.25 P7.81 P10mm for Outdoor Adverting 0



Waterproof Full Color LED Display P3.91 P4.8 P6.25 P7.81 P10mm for Outdoor Adverting 1Waterproof Full Color LED Display P3.91 P4.8 P6.25 P7.81 P10mm for Outdoor Adverting 2

Waterproof Full Color LED Display P3.91 P4.8 P6.25 P7.81 P10mm for Outdoor Adverting 3
