Gsurface IV Outdoor DIP10 3D-Naked Eye Waterproof Full Color LED Display LED Adverting Billboard

Name: Gsurface IV Outdoor DIP10 3D-Naked Eye Waterproof Full Color LED Display LED Adverting Billboard
Brand: Shenzhen GCL Electronics Co., Ltd
SKU: Gsurface IV
Availability: InStock

Brand Name:	GCL
Model Number:	Gsurface IV
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	Single package size:101X116X13 cm

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

LED

Color:

Full Color

Panel Size:

960*960 Mm

Supplier Type:

Original Manufacturer

Media Available:

Datasheet, Photo, EDA/CAD Models, Other

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment

Pixel Pitch:

4mm,5.71mm,6.67mm,8mm,10mm.16mm

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

6000-10000nits

Pixel Density:

22500 Dots/㎡

Contrast Ratio:

9000:1

Color Depth:

256

Lifespan (hours):

100,000

IP Rating:

IP65

HS Code:

8528591090

Resolution:

2k-4k

View Angle（H/V）:

H160°,V120°

Highlight:

3D-Naked Eye LED Display

Waterproof Full Color LED Display

Outdoor LED Adverting Billboard

Product Description

Gsurface IV Outdoor DIP10 3D-Naked Eye Waterproof Full Color LED Display Adverting Billboard

Product Features:

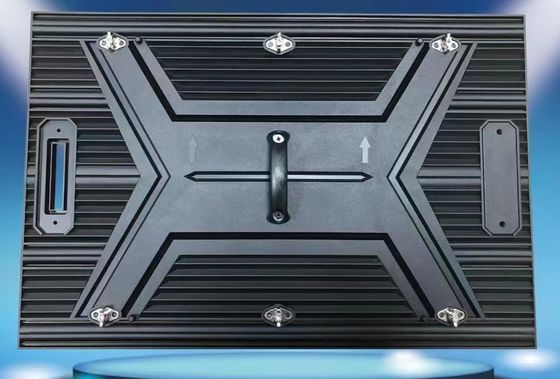

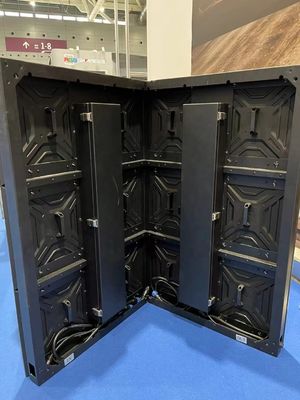

45°module, can be assembled into a right angle:
Customisable according to project requirements, widely used in outdoor naked-eye 3D commercial advertising design.

With a brightness of 10,000 nits:
the ultra-high-bright display excels in presenting stunning image quality. Even under direct sunlight, it can showcase visuals perfectly, demonstrating excellent colour and detail.

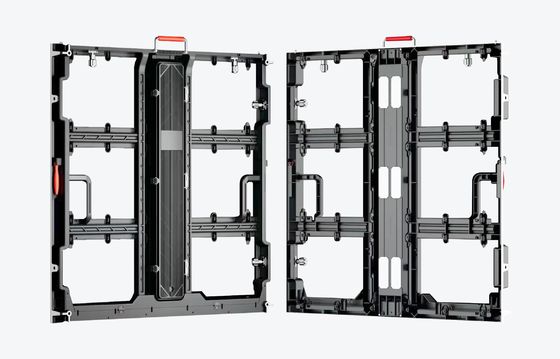

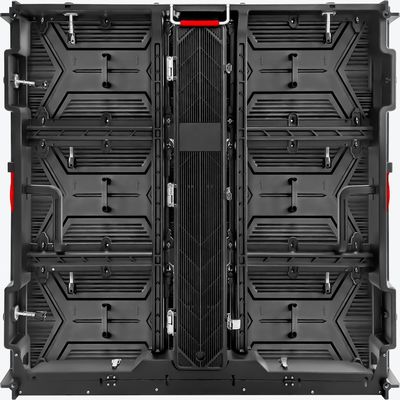

Modular design for easy maintenance:
The independent central control and power supply utilise a modular design, meeting a wider range of installation environment requirements!
Modules can be removed and maintained from the front or back, making two-way maintenance and installation more convenient.

Low power consumption, high performance:
Minimum power consumption of 120W enables stable operation 24 hours a day, with a module lifespan of up to 100,000 hours, delivering energy savings of up to 70% compared to traditional standard displays.

protection level up to IP65, dustproof, moisture-proof, corrosion-proof, etc.,

Fully enclosed module, good waterproof effect:

· Matching professional waterproof box and waterproof module,

· protection level up to IP65, dustproof, moisture-proof, corrosion-proof, etc.,

· suitable for use in all kinds of bad weather

Main parameters of Gsurface IV:

Product	P4	P5.71	P6.67	P8	P10	P10D	P16
Pitch	4mm	5.71mm	6.67mm	8mm	10mm	10mm	16mm
Density(pixels/m²)	62500	30625	22500	15625	10000	10000	3906
LED Type	SMD1921	SMD2727	SMD2727	SMD2727	SMD2727	DIP346	DIP346
Brightness	5500nits	6500nits	6500nits	6500nits	6500nits	8000nits	8000nits
Scan Method	1/8	1/7	1/6	1/4	1/2	1/4	Static
Panel Size	960×960mm
Module Size	480×320mm
Panel Material	Profile Aluminum
Panel Weight	30kg/sq.m	30kg/sq.m	29.5kg/sq.m	29.5kg/sq.m	29.5kg/sq.m	38.8kg/sq.m	38.8kg/sq.m
Protection Level	IP65
Maintenance	Front&Rear Service
Max Power Consumption	600W/㎡	650W/㎡	650W/㎡	650W/㎡	650W/㎡	350W/㎡	350W/㎡
Average PowerConsumption	200W/㎡	210W/㎡	210W/㎡	210W/㎡	210W/㎡	110W/㎡	110W/㎡
Refresh Rate	3840Hz
Grey Scale	13-16bit
Viewing Angle	H140°,V120°	H140°,V120°	H140°,V120°	H140°,V120°	H140°,V120°	H100°,V50°	H100°,V50°
Voltage	AC100~240V(50-60Hz)
WorkingTemperature	-20℃ to 60℃
WorkingHumidity	10%-90%RH
Color Temperature	3000-9500K
Certifications	CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
