Gsurface IV High Brightness Fixed P8 P10mm Outdoor Led Display for Airport IP Rating IP65

Brand Name:	GCL
Model Number:	Gsurface IV
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	Single package size:101X116X13 cm

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

Color:

Full Color

Panel Size:

960*960 Mm

Supplier Type:

Original Manufacturer

Media Available:

Datasheet, Photo, EDA/CAD Models, Other

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment

Pixel Pitch:

4mm,5.71mm,6.67mm,8mm,10mm

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

6000-10000nits

Pixel Density:

22500 Dots/㎡

Contrast Ratio:

9000:1

Color Depth:

Lifespan (hours):

100,000

IP Rating:

HS Code:

8528591090

Resolution:

2k-4k

View Angle（H/V）:

H160°,V120°

Highlight:

P10mm Outdoor Fixed LED Display

IP65 Outdoor Fixed LED Display

Airport Outdoor Fixed LED Display

Product Description

GCL High Brightness Billboard Advertising Fixed P6.67 P8 P10mm Screen Naked Eye 3d Waterproof Outdoor Led Display

Product Features:

45° module, can be assembled into right angles

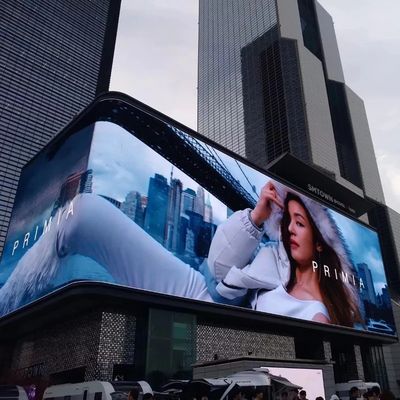

· Widely used in outdoor naked-eye 3D commercial advertising design

Low power consumption, high performance · Minimum power consumption 120W, · stable operation 24 hours a day,
· module life up to 100,000 hours,
· energy saving effect up to 70% than traditional ordinary screens
Fully enclosed module, good waterproof effect
· Matching professional waterproof box and waterproof module,
· protection level up to IP65, dustproof, moisture-proof, corrosion-proof, etc.,
· suitable for use in all kinds of bad weather

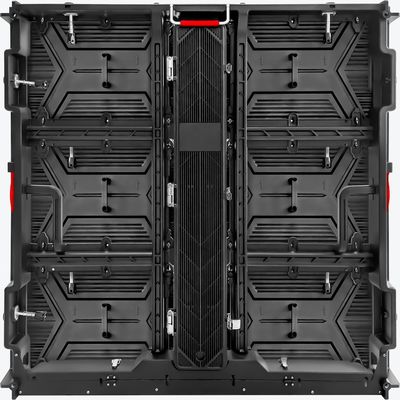

Efficient self-heat dissipation performance · The back of the power box is designed with all-aluminum material for more even heat dissipation.
· The power box has a built-in fan for heat dissipation, which enhances heat dissipation capacity and ensures stable operation 24 hours a day.






			Product
			P4
			P5.71
			P6.67
			P8
			P10


			Pitch
			4mm
			5.71mm
			6.67mm
			8mm
			10mm


			Density(pixels/m²)
			62500
			30625
			22500
			15625
			10000


			LED Type
			SMD1921
			SMD2727
			SMD2727
			SMD2727
			SMD2727


			Brightness
			5500nits
			6500nits
			6500nits
			6500nits
			6500nits


			Scan Method
			1/8
			1/7
			1/6
			1/4
			1/2


			Panel Size
			960×960mm


			Module Size
			480×320mm


			Panel Material
			Profile Aluminum


			Panel Weight
			30kg/sq.m
			30kg/sq.m
			29.5kg/sq.m
			29.5kg/sq.m
			29.5kg/sq.m


			Protection Level
			IP65


			Maintenance
			Front&Rear Service


			Max Power Consumption
			600W/㎡
			650W/㎡
			650W/㎡
			650W/㎡
			650W/㎡


			Average PowerConsumption
			200W/㎡
			210W/㎡
			210W/㎡
			210W/㎡
			210W/㎡


			Refresh Rate
			3840Hz


			Grey Scale
			13-16bit


			Viewing Angle
			H140°,V120°
			H140°,V120°
			H140°,V120°
			H140°,V120°
			H140°,V120°


			Voltage
			AC100~240V(50-60Hz)


Main parameters of Gsurface IV:

Gsurface IV High Brightness Fixed P8 P10mm Outdoor Led Display for Airport IP Rating IP65 0

Gsurface IV High Brightness Fixed P8 P10mm Outdoor Led Display for Airport IP Rating IP65 3

Tags:

Product	P4	P5.71	P6.67	P8	P10
Pitch	4mm	5.71mm	6.67mm	8mm	10mm
Density(pixels/m²)	62500	30625	22500	15625	10000
LED Type	SMD1921	SMD2727	SMD2727	SMD2727	SMD2727
Brightness	5500nits	6500nits	6500nits	6500nits	6500nits
Scan Method	1/8	1/7	1/6	1/4	1/2
Panel Size	960×960mm
Module Size	480×320mm
Panel Material	Profile Aluminum
Panel Weight	30kg/sq.m	30kg/sq.m	29.5kg/sq.m	29.5kg/sq.m	29.5kg/sq.m
Protection Level	IP65
Maintenance	Front&Rear Service
Max Power Consumption	600W/㎡	650W/㎡	650W/㎡	650W/㎡	650W/㎡
Average PowerConsumption	200W/㎡	210W/㎡	210W/㎡	210W/㎡	210W/㎡
Refresh Rate	3840Hz
Grey Scale	13-16bit
Viewing Angle	H140°,V120°	H140°,V120°	H140°,V120°	H140°,V120°	H140°,V120°
Voltage	AC100~240V(50-60Hz)
