Gmesh-R 500*500mm P3.9 Outdoor Transparent LED Display Curtain LED Video Mesh
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | gcl |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmesh- |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*500mm,500*1000mm | Warranty: | 3 Years |
| Pixel Pitch: | P3.9,P10.4 | Port: | Shenzhen |
| Highlight: | P3.9 Transparent LED Display,500*500mm Transparent LED Display,Outdoor Curtain LED Video Mesh |
||
Product Description

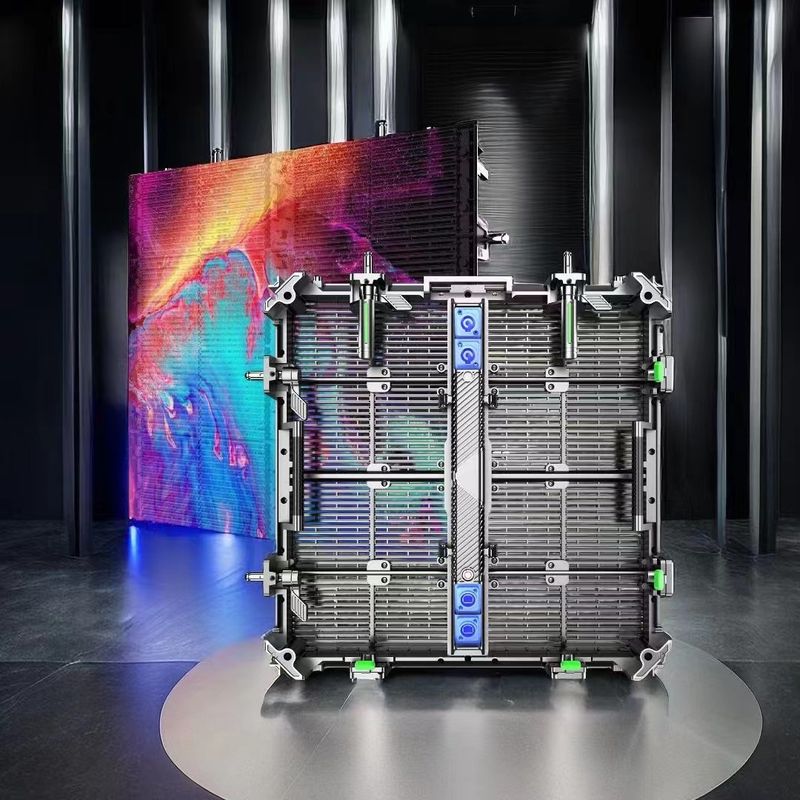

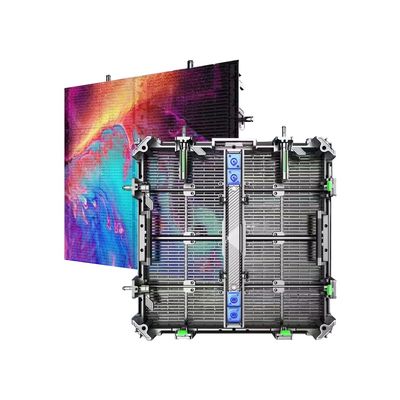

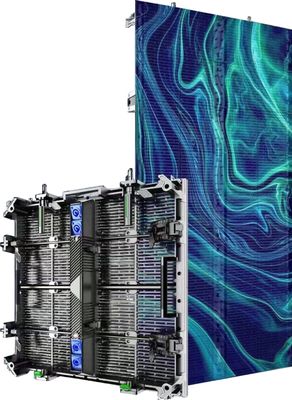

Gmesh-R 500*500mm 500*1000mm P3.9 Outdoor Transparent LED Display Curtain LED Video Mesh
Products Description:
Integrated Fixed and Rental Grid Product
High transparency:
With a translucency of up to 50%, it boasts excellent self-cooling properties, eliminating the need for air conditioning.
±15° Arc Installation Effect:
Supports a maximum 90-degree outer arc installation (right-angle installation), enabling creative displays such as inner and outer arcs. Suitable for both rental and permanent installations at any arc angle

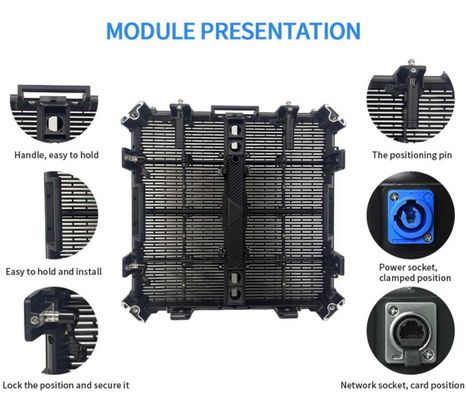

Functional Details:
Vertical positioning pins + horizontal quick locks, with power supply and network card connectors designed for easy and fast installation.
Two types of boxes can be assembled together:
The 500x1000mm and 500x500mm boxes can be mixed and matched flexibly, making them suitable for various installation spaces and helping to reduce stock costs
Lightweight Design:
The enclosure is made from die-cast aluminum, measuring only 75mm in thickness and weighing 18KG/㎡, eliminating structural stress; a single person can easily install and maintain it.

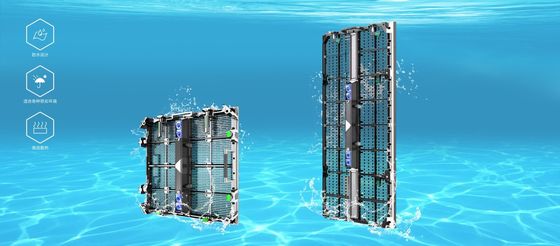

The IP65 waterproof design:
The enclosure has a protection rating of IP65, making it suitable for use in various harsh weather conditions.
| Name | Gmesh-R3.9 |
| Pixel Pitch(mm) | 3.9-7.8 |
| Densiy (pixels/㎡) | 32768 |
| LED Type | SMD1921 |
| Brightress (nits/㎡) | ≥5000cd/㎡ |
| Scan Method | 1/8S |
| Cabinet Size(mm) | 500*1000*75mm/500*500*75mm |
| Module Size(mm) | 500*125*12mm |
| Cabinet Material | Die-casting Aluminum |
| CabinetWeight | 500*500 6kg 500*1000 9kg |
| Protection Level | IP65 |
| Cabinet Maintenance | Rear Service |
| Max Power Consumption/㎡ | 700 W |
| Average Power Consumption/㎡ | 150W |
| Refresh Rate | 3840HZ |
| Transparency | 50% |
| Viewing Angle | H140°, V140° |
| Input Voltage | AC100~240V(50-60Hz) |
| Working Temperature | ﹣40℃－﹢70℃ |
| Woking Humidiy | 10%－90%RH |
| Color Temperature | 6500-9500K Adjustable |
| Installation Way | Rental &Fixed Installation &Hanging Installation |
| Support Radians | Fixed Installation:-45°-+45,Rental:-10°-+10° |
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS |
