Outdoor Advertising LED Display

Outdoor Waterproof Full-Colour Digital Poster GCL Gsurface V 1000*1000mm P3.9 P4.81 P6 P7 P10mm

All Category

Outdoor Advertising LED Display

Narrow Pixel Pitch LED Display

Stage Concert LED Display

Mr. Bill

gcl@gcled.com

+8615989317964

Contact Now

Outdoor Waterproof Full-Colour Digital Poster GCL Gsurface V 1000*1000mm P3.9 P4.81 P6 P7 P10mm

Brand Name:	GCL
Model Number:	Gsurface V
MOQ:	Min. order: 20
Price:	Price to be discussed

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

Color:

Full Color

Panel Size:

1000*1000 Mm

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:

Datasheet, Photo, EDA/CAD Models, Other, Video

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment

Pixel Pitch:

3.91mm, 4.81mm,6.25mm,7.81mm,10mm,

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

6000-10000nits

Pixel Density:

10000

Contrast Ratio:

9000:1

Lifespan (hours):

100000

IP Rating:

Resolution:

3840Hz

Module Size:

500*250mm

LED Type:

SMD1921 ,SMD2727

After-sales Service Provided:

3 Years

Cabinet Weight:

29.48KG

Maintenance:

Front & Rear Service

Grey Scale:

13-16 Bit

Highlight:

Waterproof Full-Colour Digital Poster

Outdoor Full-Colour Digital Poster

Product Description

GCL Gsurface V 1000*1000mm P3.9 P4.81 P6 P7 P10mm Outdoor Waterproof Full-Colour Advertising Display Screen

The Gsurface-V series is our company's main outdoor display product.

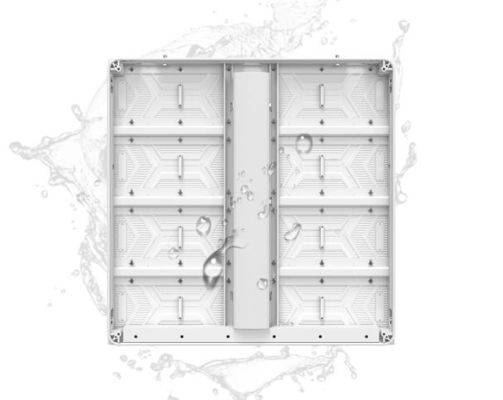

This model features an aluminium case with a double waterproof design, convenient maintenance from both front and back, excellent display effects, and stable performance. The standardised 1000*1000mm cabinet is compatible with various pixel pitches, and the overall waterproof rating of the product reaches IP65, allowing for outdoor installation without additional housing.

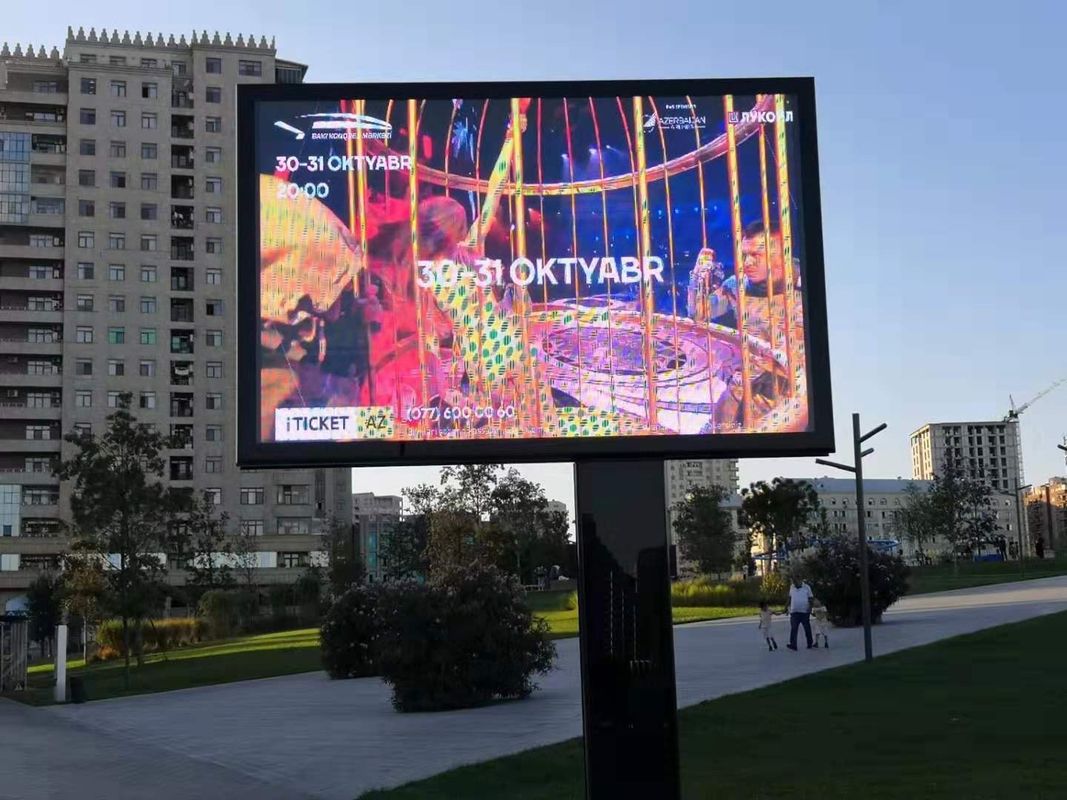

The modules are designed to prevent dust accumulation and water ingress. It is widely used in outdoor advertising media,

urban landmarks, naked-eye 3D displays, and highway advertisements.

Product Features:

Large module for easy maintenance
Supports dual voltage for energy efficiency
Exceptional heat dissipation design
Convenient installation with concealed wiring
Front and rear maintenance support
Customisable in various sizes

Parameters of GsurfaceV Series:

Product	P6.25	P7.81	P10.4
Pitch	6.25mm	7.81mm	10.4mm
Density(pixels/m²)	25600	16384	9216
LED Type	SMD2727	SMD2727	SMD2727
Brightness	6500nits	6500nits	6500nits
Scan Method	1/6	1/4	1/2
Panel Size	1000×1000×78mm
Module Size	500×250mm
Panel Material	Profile Aluminum
Panel Weight	29kg
Protection Level	IP65
Maintenance	Front&Rear Service
Max Power Consumption	650W/㎡	650W/㎡	650W/㎡
Average Power Consumption	210W/㎡	210W/㎡	210W/㎡
Refresh Rate	3840Hz
Grey Scale	13-16bit
Viewing Angle	H140°,V120°	H140°,V120°	H140°,V120°
Voltage	AC100~240V(50-60Hz)
