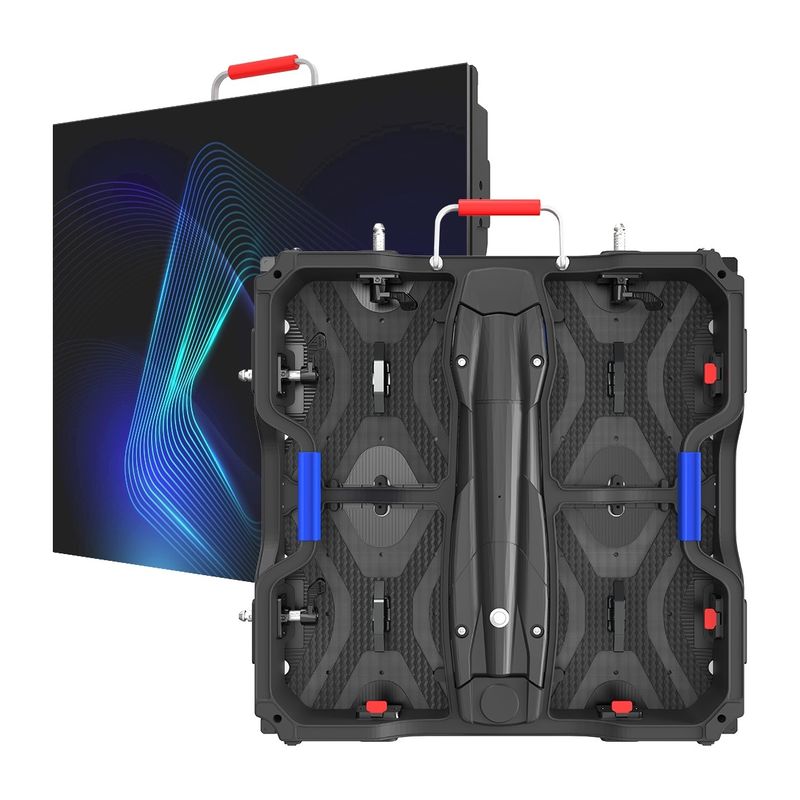

1200nits High Brightness LED Video Wall Flexible Screen P1.95 Indoor Use Ggalaxy Series
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Ggalaxy |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case, Ply-wooden case |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*500mm | Brightness: | 700-800cd/sqm |
| Module Size: | 250*250mm | Refresh Rate: | 3840Hz |
| LED Chip: | SMD1212,SMD1515,SMD2020 | Power Supply: | Meanwell |
| Viewing Angle: | 160H/140V | Scan Mode: | 1/26-1/32Scan |
| Cabinet Material: | Die-casting Alumium | Weight: | 8Kg/panel |
| IP Rate: | IP31/IP31 | Pixel Pitch: | P1.95\P2.5\P2.6\P2.97 |
| Port: | Shenzhen Port | ||
| Highlight: | 1200nits High brightness LED Video Wall,Flexible Screen LED Video Wall,Indoor Advertising LED Display Screen |
||
Product Description
1200nits High brightness Video Wall Flexible Screen P1.95 P 2.5 Indoor Led Display Ggalaxy Series
Product features:
Convenient installation
No structure needed for small sizes screens

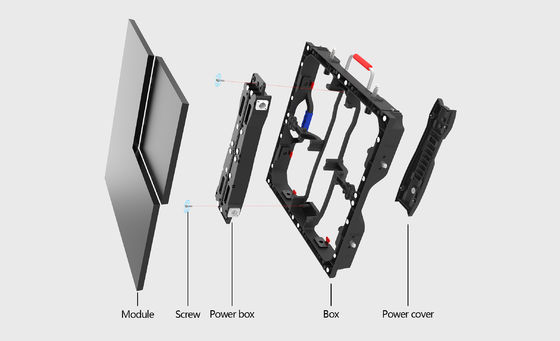

Easy to disassemble for front and rear maintenance
Specially designed for wall-mounted projects, no special maintenance access is required
Front maintenance only needs to remove 2 screws, and the power box can be easily disassembled for maintenance

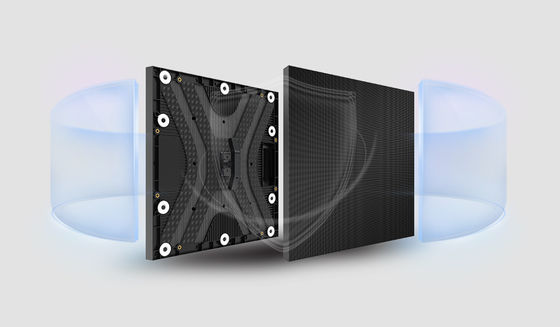

High-end module design
High-end and sturdy panel is beneficial to better protect the lamp grains from bumping and necrosis;
High definition and high refresh rate
3840Hz high refresh rate display technology can effectively reduce screen flicker, protect the audience's eyes, and provide more
Smooth visual effects, restoring the best visual experience
Using high pixel density LED beads, it can present more delicate picture details with extremely high display clarity
There is no difference between left and right modules and can be used interchangeably;

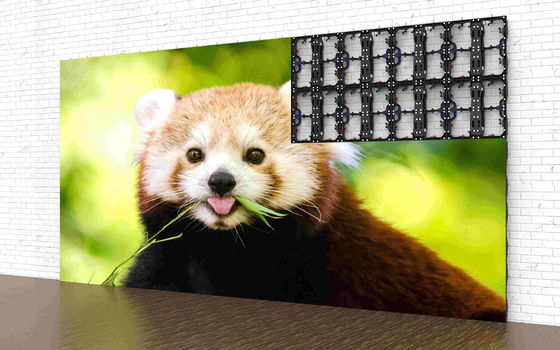

Easy to install without the need for steel structures
Small screen without steel frame structure, with lightweight and convenient characteristics, easy to achieve wall mounted installation, saving project structural costs This and the installation space environment；
Parameters of Ggalaxy Series:
| Product | P1.953 | P2.5 | P2.604 | P2.976 | P3.91 |
| Pitch | 1.953mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm |
| Density(pixels/m²) | 262144 | 160000 | 147456 | 112896 | 65536 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Brightness | 700nits | 800nits | 800nits | 800nits | 800nits |
| Scan Method | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Panel Size | 500×500mm | ||||
| Module Size | 250×250mm | ||||
| Panel Material | Die-casting Aluminum | ||||
| Panel Weight | 8kg | ||||
| Protection Level | IP31 | ||||
| Maintenance | Module Front Service &Rear Service | ||||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 550W/㎡ | 550W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 180W/㎡ | 180W/㎡ |
| Refresh Rate | 3840Hz | ||||
| Grey Scale | 13-16bit | ||||
| Viewing Angle | H160°,V140° | ||||
| Voltage | AC100~240V(50-60Hz) | ||||
