Outdoor Background Stage LED Display Fast Installation P3.9 Rental Outdoor LED display
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gstar P1.953/P2.5/P2.604/P2.976/P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:50X50X50 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Highlight: | Outdoor Stage LED Display,Background Stage LED Display,Fast Installation LED Stage Screen |
||
|---|---|---|---|
Product Description
HD P2.6 P2.9 P3.91 Indoor Outdoor Background Rental Stage Led Display Screen/Fast Installation Led Panel Display
Product Features

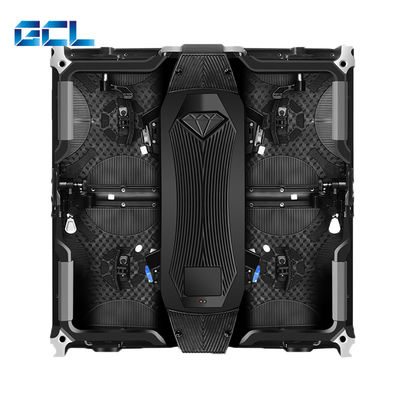

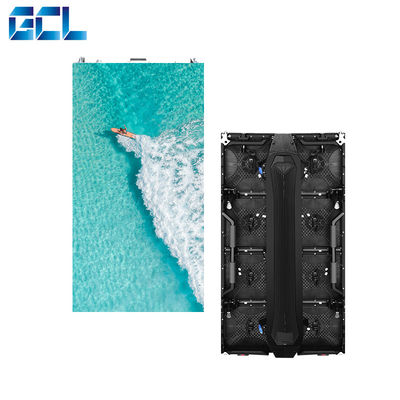

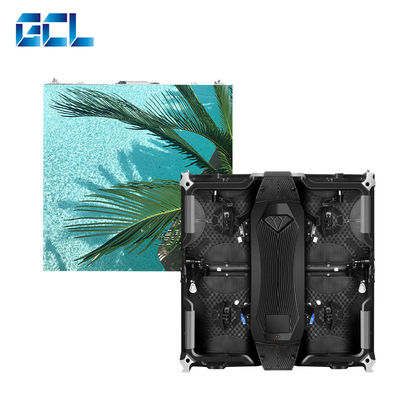

1.Special Design This Panel has both 500*500mm and 500*1000mm verstion,and the two verstion can be used togother.Has achieve Front and rear maintenance.
2.Exquisite Craft The curve lock it adopts is very easy to operate,both concave and convex is available,the manufacturing is precise amd accurate
3.Excellent Quality Our field-tested LED panel is a self-contained, modular unit made of die-casting aluminum to provide superior heat dissipation,durability, and a longer lifespan. Unlike most digital signs, ours have no fans. This unique product meets strict quality controland is backed by a three year warranty.
Parameters of Gstar Series:
| Parameter Name | Indoor | Outdoor | ||||
| P1.95 | P2.604 | P2.976 | P2.604 | P2.976 | P3.91 | |
| Module | ||||||
| LED Type | SMD1212 | SMD1515 | SMD2121 | SMD1415 | SMD1415 | SMD1921 |
| Pixel Pitch(mm) | 1.953 | 2.604 | 2.976 | 2.604 | 2.976 | 3.91 |
| Module Resolution | 128*128 | 96*96 | 84*84 | 96*96 | 84*84 | 64*64 |
| Module Size(mm) | 250*250 | |||||
| Scan Method | 1/325 | 1/32s | 1/285 | 1/24s | 1/215 | 1/16s |
| Cabinet | ||||||
| Module Quantity | 2*2 | |||||
| Cabinet Resolution | 256*256 | 192*192 | 168*168 | 192*192 | 168*168 | 128*128 |
| Cabinet Size(mm) | 500*500*75/500*1000*75 | |||||
| Cabinet Area(m²) | 0.25/0.5 | |||||
| Cabinet Material | Die-casting Aluminum | |||||
| Cabinet Weight | 7.6kg | 7.5kg | 7.5kg | 8.5kg | 8.5kg | 8.5kg |
| Density(pixels/㎡) | 262144 | 147456 | 112896 | 147456 | 112896 | 65536 |
| Protection Level | IP34 | IP65 | ||||
| Optics | ||||||
| Brightness(nits) | 800nits | 900nits | 800nits | 5000nits | 5000nits | 5000nits |
| Calibration | Support Single-dot Calibration | |||||
| Color Temperature | 3000-9500K Manual Adjustment | |||||
| Viewing Angle | H160°,V140° | |||||
| Light Decay Rate | <3% | |||||
| Contrast | ≥6000:1 | |||||
| Gray Scale | 13-16bit | |||||
| Electric | ||||||
| Max Power Consumption/㎡ | 400W | 450W | 450W | 800W | 800W | 700W |
| Average Power Consumption/㎡ | 136W | 150W | 150W | 270W | 270W | 230W |
| Cabinet Maintenance | Full Front Service | |||||
| Input Voltage | AC100~240V(50-60Hz) | |||||
| Performance | ||||||
| Drive Mode | Constant Current Drive | |||||
| Refresh Rate | ≥3840Hz | |||||
| Frame Rate | 50Hz/60Hz | |||||
