Customizable Electronic Outdoor Display Screen For Advertising Publish

Brand Name:	GCL
Model Number:	Gsurface V
MOQ:	Min. order: 20
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

LED

Color:

Full Color

Panel Size:

1000*1000mm

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:

Photo, Other

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment

Pixel Pitch:

10mm, 10mm

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

6000-10000nits

Pixel Density:

10000

Contrast Ratio:

9000:1

Color Depth:

256

Lifespan (hours):

100,000

IP Rating:

IP65

HS Code:

8528591090

Resolution:

3840Hz

View Angle（H/V）:

H120°,V120°

Module Size:

480*320mm

Cabinet Material:

960*960mm

LED Type:

DIP 346

After-sales Service Provided:

3 Years

Scan Method:

1/4s

Cabinet Weight:

25KG

Maintenance:

Front & Rear Service

Grey Scale:

13-16 Bit

Highlight:

Electronic Outdoor Display Screen

Customizable Outdoor Display Screen

Electronic Outdoor LED Display Screen

Product Description

Outdoor P3.91,P4.8,P6,DIP10 3D-Naked Eye Waterproof Full Color LED Display Adverting Billboard

Product Description:

Supports simultaneous maintenance

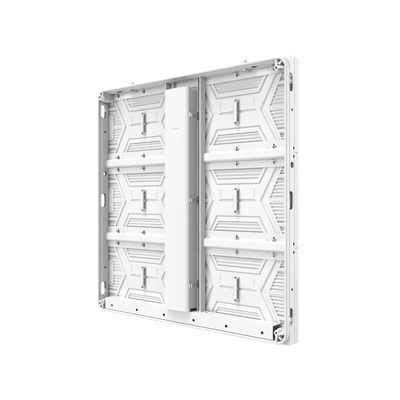

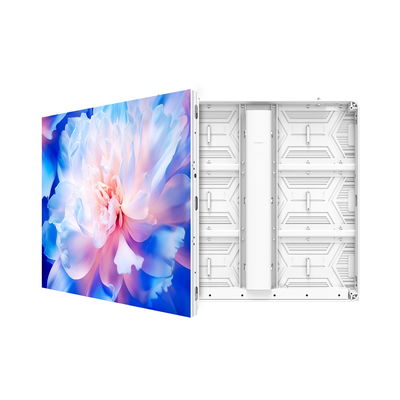

The module can be removed for front/rear maintenance, which is more convenient for two-way maintenance and installation

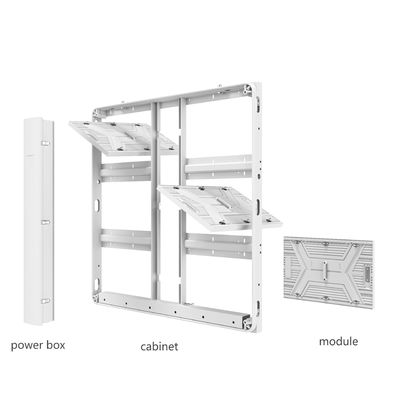

Independent central control and power supply adopt modular design to meet more installation environment requirements!

Fully enclosed closed module with good waterproof effect
Matched with professional waterproof box and waterproof module, with a protection level of up to IP65, it is dustproof, moisture-proof, corrosion-resistant, and suitable forSuitable for use in various adverse weather conditions

High refresh, switching without blinking
Adopting a high refresh rate IC, the refresh rate can reach 3840Hz, and the playback screen has no shaking, ghosting, or water ripple phenomenon!

Efficient heat dissipation performance
the power box is equipped with a built-in cooling fan, and the back is designed with all aluminum material, making heat dissipation more uniform and ensuring all-day protection Stable operation for 24 hours;

Multiple sizes available, supporting mixed box assembly
Multiple size specifications available: 1000 x 1000mm/1000 x 750mm/1000 x 500mm
Supporting mixed assembly of different specifications of boxes, flexible matching of products, suitable for multiple installation spaces, saving stocking costs；

45 ° module, can be assembled into right angles;
Customizable according to project requirements, widely used in outdoor naked eye 3D commercial advertising design；

Low power consumption, high performance
Minimum power consumption of 200W, stable operation 24 hours a day, module lifespan up to 100000 hours

Parameters of GsurfaceV Series:

Name	P3.91	P4.81	P6.25	P7.81	P10.4
Module
LED Type	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Pixel Pitch(mm)	3.91	4.81	6.25	7.81	10.4
Module Resolution	128*64	104*52	80*40	64*32	48*24
Module Size(mm)	500*250	500*250	500*250	500*250	500*250
Scan Method	1/16s	1/13s	1/6s	1/4s	1/2s
Cabinet
UnitResolution	2*4	2*4	2*4	2*4	2*4
Cabinet Resolution	256*256	208*208	160*160	128*128	96*96
Cabinet Size(mm)	1000×1000×78 Customizable
Cabinet Area(m²)	1
Cabinet Material	Profile Aluminum
Cabinet Weight	29kg
Density (pixels/m²)	65536	43264	25600	16384	9216
Protection Level	IP65
Optics
Brightness(nits)	5500	5500	6000	6500	6500
Calibration	Support Single-dot Calibration
Color Temperature	1000-9500K Adjustable
Viewing Angle	H120°,V120°	H120°,V120°	H120°,V120°	H120°,V120°	H100°,V50°
Light Decay Rate	<3%
Contrast Ratio	≥9000:1
Grey Scale	13-16bit
Electric
Max Power Consumption/m²	600W	600W	680W	700W	700W
Average Power Consumption/m²	200w	200W	220W	240W	240W
Cabinet Maintenance	Full Front/Rear Service
Input Voltage	AC96~264V(50-60Hz)
Performance
Drive Mode	Constant Current Drive
Refresh Rate	≥3840Hz
FrameRate	60Hz
Working Condition
