High Definition Curtain Advertising LED Display Wide Angel LED Mesh Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | gcl |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*1000mm | Warranty: | 3 Years |
| Pixel Pitch: | P15.6 | Port: | Shenzhen |
| Highlight: | High Definition Advertising LED Display,Curtain Advertising LED Display,High Definition Transparent LED Display |
||
Product Description

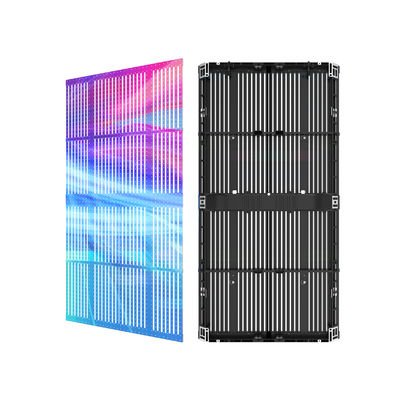

500*1000mm Panel Size Full Color Outdoor Transparent Mesh Curtain LED Display Screen
Products Description

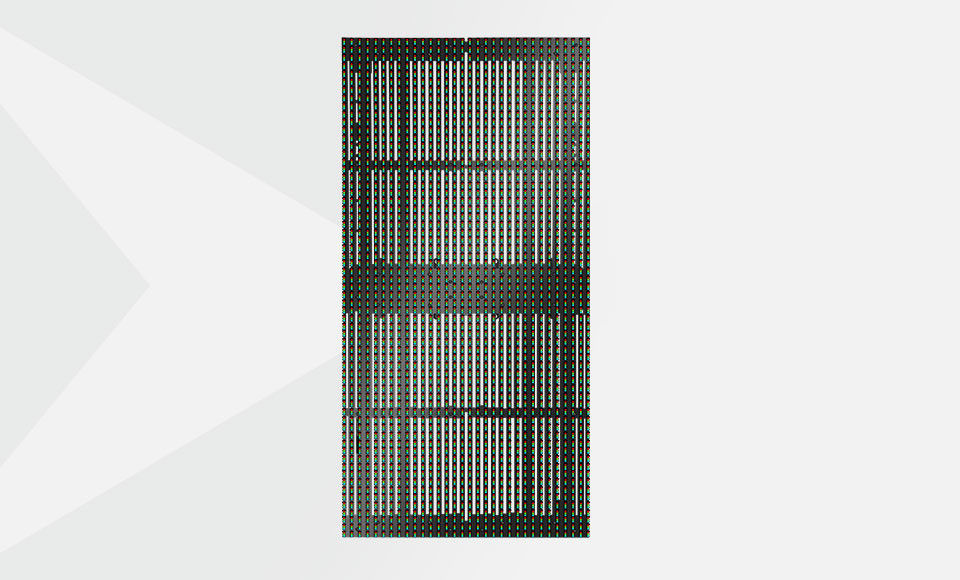

High Light Transmittance
Light transmittance:20%-60%
Low wind resistance
Great heat dissipation
Light and Slim
Cabinet weight: 9.5kg(P10 SND),11kg(P15.6 DIP)
Cabinet Thickness:45mm
Front &Rear Maintenance
All parts be dismounted from the front;
Both front and rear maintenance;
Easy Maintenance
Loose 8 screws to dismount each module
Loose 8 screws to dismount the front cover,
then dismount the power supply, receiving card and HUB card

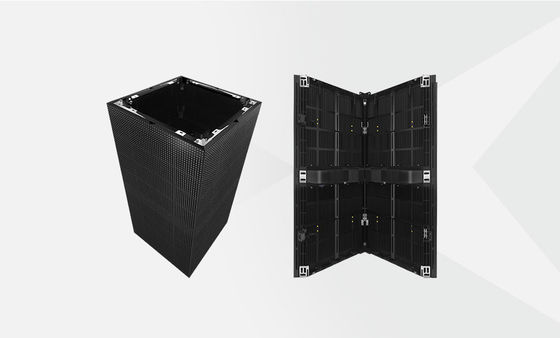

Seamless 90°Splicing
Optional Curve Lock
Concave and convex curve;
Curve degree:-15° to+15°
Integrated Power and Signal Cable
Save 50% of the cable connecting time
High Light Transmittance
Light transmittance:20%-60%
Low wind resistance
Great heat dissipation
Light and Slim
Cabinet weight: 9.5kg(P10 SND)
11kg(P15.6 DIP)
Cabinet Thickness:45mm
Front &Rear Maintenance
All parts be dismounted from the front;
Both front and rear maintenance;
Easy Maintenance
Loose 8 screws to dismount each module
Loose 8 screws to dismount the front cover,
then dismount the power supply, receiving card and HUB card
Seamless 90°Splicing
Optional Curve Lock
Concave and convex curve;
Curve degree:-15° to+15°
Integrated Power and Signal Cable
Save 50% of the cable connecting time
| Parameters of Gmesh Series | |||||||
| Name | Gmesh7.8-3.9 | Gmesh10 | Gmesh16-A | Gmesh16-B | Gmesh16-C | Gmesh25 | Gmesh31.25 |
| Module | |||||||

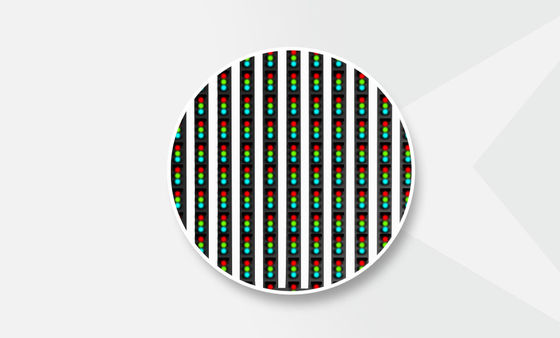

| LED Type | SMD1921 | SMD2727 | SMD2727 | DIP346 | DIP346 | DIP346 | DIP346 |
| Pixel Pitch(mm) | 7.8-3.9 | 10.4 | 15.625 | 15.625 | 31.25-15.625 | 25-31.25 | 31.25 |
| Module Resolution | 32*128 | 24*48 | 16*32 | 16*32 | 8*32 | 20*8 | 8*16 |
| Module Size(mm) | 250*500 | 250*500 | 250*500 | 250*500 | 250*500 | 500*250 | 250*500 |
| Scan Method | 1/8s | 1/3s | Static | Static | Static | Static | Static |
| Cabinet | |||||||
| UnitResolution | 2*2 | 2*2 | 2*2 | 2*2 | 2*2 | 2*2 | 2*2 |
| Cabinet Resolution | 64*256 | 48*96 | 32*64 | 32*64 | 16*64 | 40*16 | 16*32 |
| Cabinet Size(mm) | 500*1000*41 | 500*1000*44 | 500*1000*45 | 500*1000*50 | 500*1000*50 | 1000*500*50 | 500*1000*50 |
| Cabinet Area(m²) | 0.5 | ||||||
| Cabinet Material | Die-casting Aluminum | ||||||
| Cabinet Weight | 19kg | 19kg | 18kg | 22kg | 15kg | 14kg | 14kg |
| Densiy (pixels/㎡) | 32768 | 9216 | 4096 | 4096 | 2048 | 1280 | 1024 |
| Protection Level | Front &Rear Ip65 | ||||||
| Optics | |||||||
| Brightness(nits/㎡) | 5000 | 5500 | 5000 | 10000 | 10000 | 8000 | 8000 |
| Calibration | Support Single-dot Calibration | ||||||
| Color Temperature | 1700-9500K Adjustable | ||||||
| Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H100°,V50° | H100°,V50° | H100°,V50° | H100°,V50° |
| Transparency | 20% | 30% | 30% | 30% | 50% | 60% | 65% |
| Light Decay Rate | <3% | ||||||
| Contrast Ratio | ≥9000:1 | ||||||
| Grey Scale | 13-16bit | ||||||
| Electric | |||||||
| Max Power Consumption/m² | 640W | 640W | 640W | 400W | 400W | 400W | 400W |
| Average Power Consumption/㎡ | 220W | 220W | 220W | 120W | 120W | 120W | 120W |
| Cabinet Maintenance | Full Front/Rear Service | ||||||
| Input Voltage | AC100~240V(50-60Hz) | ||||||
| Performance | |||||||
| Drive Mode | Constant Current Drive | ||||||
| Refresh Rate | ≥3840Hz | ||||||
| Frame Rate | 50Hz/60Hz | ||||||
| Working Condition | |||||||
| Installation Way | Rental &Fixed Installation &Hanging Installation | ||||||
| Support Radians | Fixed Installation:-45°-+45,Rental:-10°-+10° | ||||||
| Working Temperature/Working Humidity | -20℃~+60℃/10%-90%RH | ||||||
| Storage Temperature/Storage Humidiy | -20℃~+60℃/10%-90%RH | ||||||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||||||
