Indoor XR LED Display 1000 Nit 500 Panel Giant Screens For Party Rental Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmars PH1.953mm /2.5mm/2.604mm/2.976mm/3.91mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Highlight: | Indoor XR LED Display,Party XR LED Display,1000 Nit Indoor LED Screen |
||
|---|---|---|---|
Product Description
Indoor XR P2.6 Led Display Show Panel Rent Giant Screens For Party Rental Equipment

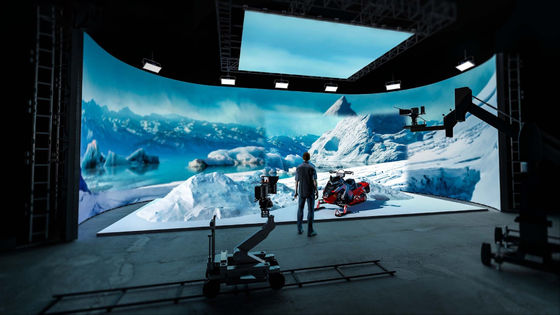

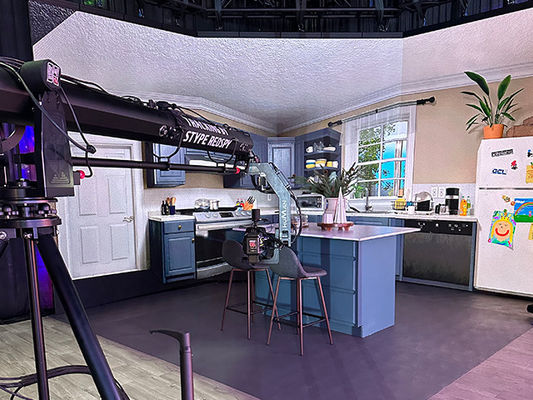

LED Stage Screen Indoor Full Color Rental LED Display Screen XR Shooting Available
Great Cabinet Design

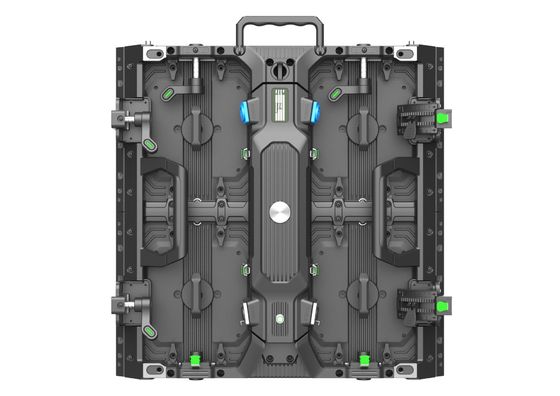

The receiving card, power supply and hub card are placed in the control box in the back of the cabinet. The control box can be swapped out quickly. In case of emergency, you can replace the whole control box in a short time. That greatly reduces the “down time” during the event.

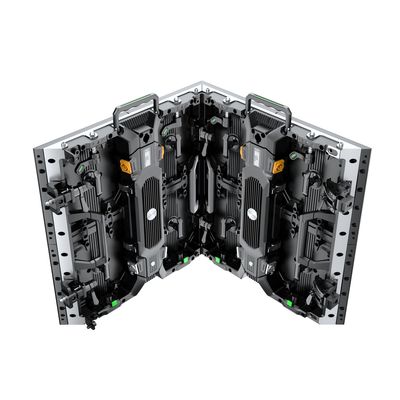

Putting connectors down is for easier pulling out and inserting in. Testing button is to test the panel before building up the screen. Strong locking system and curved design are available. The lock is very secure and strong. It can be designed to be curved to form a curved screen from -15°(convex) to +15°(concave).
Excellent Protection Gadgets
A “L” shape steel plate on each corner can be turned into the proper direction to raise the modules. This smart design can help protect the LED when the panel hits the ground.
By adopting high tech GOB(P1.92.6) technology, the screen is waterproof and anti-collision.
We use the innovative “Gmars XR” technology to reinforce the soldering connection between LED and PCB board. So the LED won’t be broken easily.
Brilliant Visual Performance
“Gmars XR” Series LED signage always quickly captures the audience's attention and provides unforgettable visual experience for the viewers. Meanwhile, using black LED will increase the color contrast of the screen.
Ultimate Refresh Rate Refresh rate of “Gmars XR” LED video wall can be up to 7680Hz
Excellent Gray Scale Gray Scale of this kind of LED panel can be (16bits-24bits)
Multiple Scenarios, Creative Display

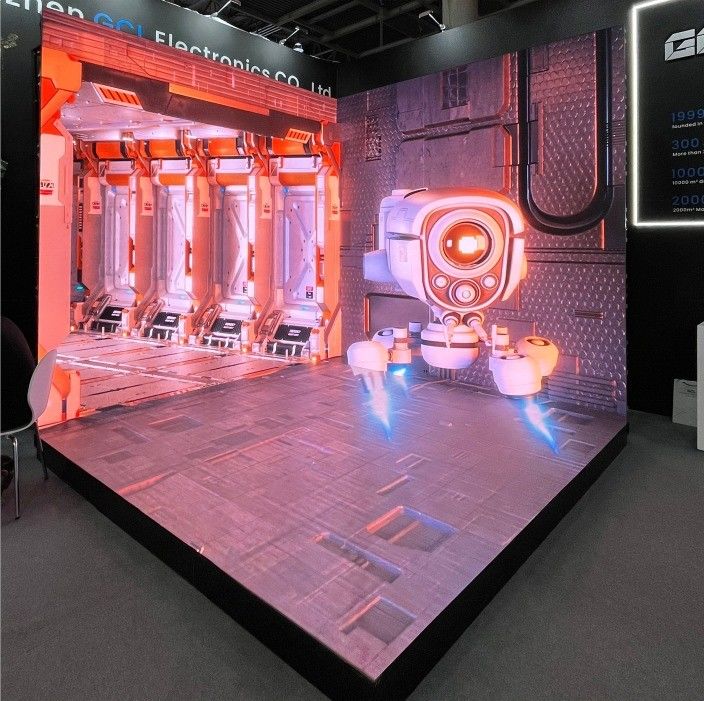

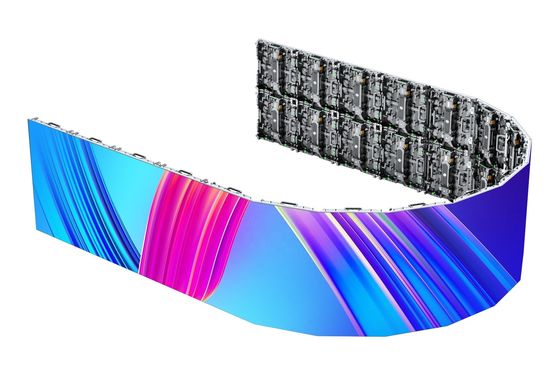

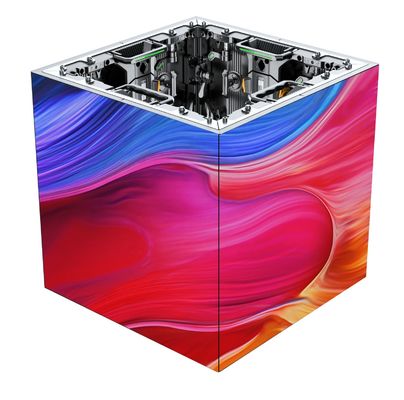

On the basis of its main features, “Gmars XR” series LED screen is always used to not only display information but also decorate the place. The screen is able to be assembled to form the following shapes.
Parameters of Gmars XR Series:
| Name | Indoor | ||||||
| P1.95 | P2.5 | P2.604 | P2.976 | P3.91 | |||
| Module | |||||||
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD2121 | SMD2121 | ||
| Pixel Pitch(mm) | 1.953 | 2.5 | 2.604 | 2.976 | 3.91 | ||
| Module Resolution | 128*128 | 100*100 | 96*96 | 84*84 | 64*64 | ||
| Module Size(mm) | 250*250 | ||||||
| Scan Method | 1/32s | 1/25s | 1/32s | 1/28s | 1/16s | ||
| Cabinet | |||||||
| Unit Resolution | 2*2 | ||||||
| Cabinet Resolution | 256*256 | 200*200 | 192*192 | 168*168 | 128*128 | ||
| Cabinet Size(mm) | 500*500*75/500*1000*75 | ||||||
| Cabinet Area(m²) | 0.25/0.5 | ||||||
| Cabinet Material | Die-casting Aluminum | ||||||
| CabinetWeight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | ||
| Densiy (pixels/㎡) | 262144 | 160000 | 147456 | 112896 | 65536 | ||
| Protection Level | IP34 | ||||||
| Optics | |||||||
| Brightness(nits) | 900nits | 900nits | 900nits | 1000nits | 1200nits | ||
| Calibration | Supports single point correction | ||||||
| Color Temperature | 2000-10000K Adjustable | ||||||
| Viewing Angle | H160°,V140° | ||||||
| Loht Decay Rate | <3% | ||||||
| ContrastRatio | 6000:1 | ||||||
| Grey Scale | 14bit | ||||||
| Electric | |||||||
| Max Power Consumption/㎡ | 400w | 400W | 400w | 520W | 480w | ||
| Average Power Consumption/㎡ | 135W | 135W | 135W | 170W | 160W | ||
| Cabinet Maintenance | Front&Rear Service | ||||||
| Input Voltage | AC110~220V(50-60Hz) | ||||||
| Performance | |||||||
| Drive Mode | Constant Current Drive | ||||||
| Refresh Rate | ≥3840Hz | ||||||
| Frame Rate | 50Hz/60Hz | ||||||
| Working Condition | |||||||
| Working TemperatureWorking Humidity | -30℃~+60℃/10%-95%RH | ||||||
| Storage Temperature/Sorage Humidiy | -30℃~+85℃ /10%-95%RH | ||||||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||||||
About GCL :
The focus of GCL lies in the manufacturing of various types of LED display screens, including indoor and outdoor displays, rental displays, flexible displays, transparent displays, dance floor series, high-definition resolution displays, perimeter displays, stadium sport screens, LED signs, display boards and billboards.
