Stadium Perimeter LED Display

6500nits Brightness P10 Gsport Outdoor LED Display Board Epistar LED Chip For Advertising

All Category

Outdoor Advertising LED Display

Narrow Pixel Pitch LED Display

Stage Concert LED Display

Mr. Bill

gcl@gcled.com

+8615989317964

Contact Now

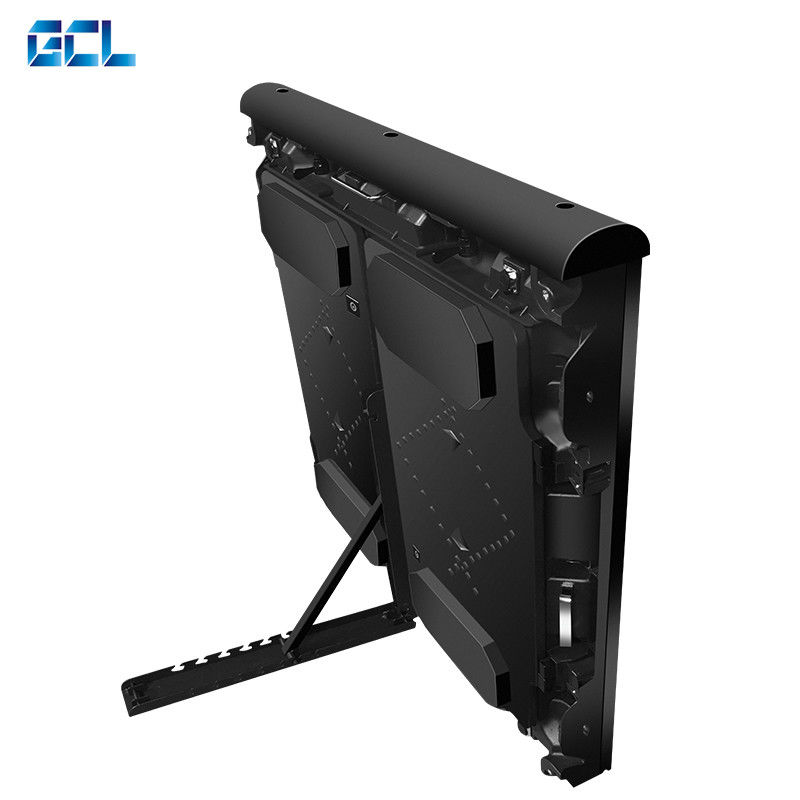

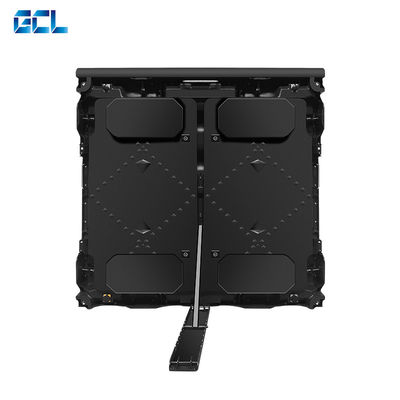

6500nits Brightness P10 Gsport Outdoor LED Display Board Epistar LED Chip For Advertising

Brand Name:	GCL
Model Number:	Gsport
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	Packing with Flight case & Wooden box & Hard paper box

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor Stadium Perimeter

Color:

Black

Panel Size:

Customized

Module Size:

320x160mm

LED Type:

SMD3535

Cabinet Material:

Magnesium Diecasting

Cabinet Maintenance:

Rear Service

Brightness:

6500nits

Protection Level:

LED Chip:

Epistar

Weight:

35kg/sqm

Pixel Pitch:

Port:

Shenzhen

Supply Ability:

5000 Square Meter/Square Meters per Month

Highlight:

6500nits Brightness Outdoor LED Display Board

Gsport Outdoor LED Display Board

Epistar LED Chip LED Advertising Screen

Product Description

Specification

Product	Gsport_P10
Pixel Pitch	10mm
LED Type	SMD3535
Brightness	6500nits
Scan Method	1/3
Cabinet Size	Customized
Module Size	*320160mm**
Cabinet Material	Magnesium Aluminum
Cabinet Weight	35kg/sqm
Protection Level	IP65
Cabinet Maintenance	Rear Service
Max Power Consumption	720w/sqm
Ave Power Consumption	240w/sqm
Refresh Rate	1920-3840HZ
Grey Scale	16bit
Viewing Angle	H140 / V140
Voltage	AC100-240V(50-63HZ)
Working Temperature	-30℃ - +65℃
Working Humidity	10%-90% RH
Color Temperature	6500-9500K
Certifications	EMC/CE/ROHS/CCC/FCC/ISO

Packing & Delivery

Company Profile

Shenzhen GCL Electronics CO., Ltd, founded in 1999, is a professional LED display manufacturer which integrates research, development, manufacturing, engineering, installing, sales and after-sales service.

Headquartered in Shenzhen, China, GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 30 high-speed production machines with high accuracy and more than 10 modern assembly lines.

GCL has a very powerful productivity with over 5000 square meters LED screens each month. We have been granted with more than ten LED application products-related patents and certifications in compliance with the ISO 9001, ISO 1400 and ISO18001 standards. Our products have also been certificated with multiple standards, including CCC, FCC, CE, ROHS, UL, EMC, and ETL.

GCL has finished more than 10,000 led screen projects all over the world, including some magnificent international government projects such as 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc. With Europe and America as our main markets, GCL has developed multiple partners in Europe and our office&warehouse in the US covers over 15000 square feet. We can provide prompt delivery and after-sales service for all customers from the north and south America.

We have two company branch in Russia and USA :

* Russia GCL Electronics Co., Ltd

Address: Russia, Mocscwo Region ,Odintsovskiy gorodskoy okrug ,rabochiy posyolok Novoivanovskoye,Ovrazhnaya ulitsa,12

* GCL USA Inc

Address: 4113 lindbergh drive, addison, TX 75001, the US

It is good for us to ship out our cargo to overseas warehouse in advance, and save your time to get the orders, very helpful to compete in the market.

FAQ

Q1, How does GCL provide aftersales service for the clients?

A1, 1) First of all, we will provide free spare parts, about 2%.

2) During the warranty, if there are any problems with our products, the clients can send the broken parts back, we will repair them for free, and send them back to the clients with the shipping cost covered by GCL.
3) We can send engineers to the clients’ country to instruct the installation, or train their engineers, or maintain our products.

Q2, How long is the production time?

A2, Usually 12-15 working days.

Q3, What LEDs and IC does GCL use?

A3, Our standard LEDs are as follows:
Indoor SMD0808/1010: Nationstar
Indoor SMD1515/2121: Kinglight
Outdoor 1921/3535: Nationstar
Our standard IC : MBI5124/5153/5252
Other brands can be used as well if required.

Q4, What control system does GCL usually use?

A4, Our standard control system is Novastar, we can also use other control systems if required.

Q5, Does GCL accept other payment terms besides T/T?

A5, Yes, we also accept LC, paypal, western union, etc.

Q6, How long is the warranty?

A5, Our standard warranty is 3 years. 5 years warranty can be offered with a little bit higher price.
