Product Details:

Place of Origin: Guangdong, China
Brand Name: GCL
Certification: EMC/CE/ROHS/CCC/FCC/BIS
Model Number: Gmesh

Payment & Shipping Terms:

Minimum Order Quantity: Min. order: 20
Price: Price to be discussed
Packaging Details: plywood,flight case,paper board
Supply Ability: 5000 Square Meter/Square Meters per Month
Get Best Price Contact Now

Detail Information

Application: Outdoor Type: LED
Color: Full Color Panel Size: 500*1000mm
LED Chip: DIP346/SMD3535 Module Size: 250*500mm
Brightness: 8500nits Refresh Rate: 1920Hz-3840Hz
Life Span: 10000hours Viewing Angle: 120/120 Degree
Warranty: 3 Years Material: Waterproof Diecasting Cabinet
IP Rate: IP65/IP65 Voltage: 110-240V/50-60HZ
Pixel Pitch: 10mm 15mm Port: Yantian(Shenzhen) Shekou(Shenzhen)
Highlight:

Customizable Transparent LED Display Board

,

IP65 Rated Transparent LED Display Board

,

IP65 Rated Media Facade LED Screen

Product Description

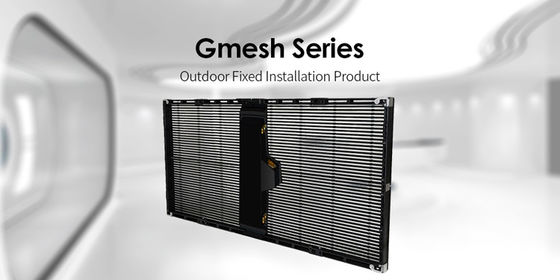

Transparent Glass Wall Display with IP65/IP65 Rated Outdoor Clear LED Media Facade



Product Description



High safety performance: The product has passed international ClassB certification and has excellent flame retardant and heat dissipation effects. It has extremely high safety performance and can be used with confidence.


High product transparency: with a light transmittance of up to 50%; Installing outdoors does not affect indoor lighting.


Diversified creative installation: can support up to 90 degree external arc installation (right angle installation), and can achieve creative displays such as internal and external arcs,

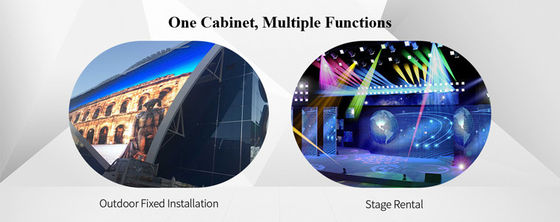

Multi scenario use: can be used in two scenarios: stage rental and outdoor fixed screen.


Support full front maintenance (power supply, card, module can be removed from the front), and can also be installed for rear maintenance;

Name Gmesh10 Gmesh16-B Gmesh16-C Gmesh25 Gmesh31.25
Module
LED Type SMD2727 DIP346 DIP346 DIP346 DIP346
Pixel Pitch(mm) 10.4 15.625 31.25-15.625 25-31.25 31.25
Module Resolution 24*48 16*32 8*32 20*8 8*16
Module Size(mm) 250*500 250*500 250*500 500*250 250*500
Scan Method 1/3s Static Static Static Static
Cabinet
UnitResolution 2*2 2*2 2*2 2*2 2*2
Cabinet Resolution 48*96 32*64 16*64 40*16 16*32
Cabinet Size(mm) 500*1000*44 500*1000*50 500*1000*50 1000*500*50 500*1000*50
Cabinet Area(m²) 0.5
Cabinet Material Die-casting Aluminum
Cabinet Weight 19kg 22kg 15kg 14kg 14kg
Densiy (pixels/㎡) 9216 4096 2048 1280 1024
Protection Level Front &Rear Ip65
Optics
Brightness(nits/㎡) 5500 10000 10000 8000 8000
Calibration Support Single-dot Calibration
Color Temperature 1700-9500K Adjustable
Viewing Angle H140°,V120° H100°,V50° H100°,V50° H100°,V50° H100°,V50°
Transparency 30% 30% 50% 60% 65%
Light Decay Rate <3%
Contrast Ratio ≥9000:1
Grey Scale 13-16bit
Electric
Max Power Consumption/m² 640W 400W 400W 400W 400W
Average Power Consumption/㎡ 220W 120W 120W 120W 120W
Cabinet Maintenance Full Front/Rear Service
Input Voltage AC100~240V(50-60Hz)
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 0
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 1
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 2
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 3
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 4
Detailed Images
Product detail drawing
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 5
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 6
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 7
Cabinet material is Die-casting aluminum with flexible design.
Ultra light cabinet weight 9KG and slim.
Smart lock system,easy installation.
Gmesh pitch is 15.6mm and density is 4096 pixels/square meter.
Brightness is more than 8000 nits.
30% high transparency.
Optional curve lock.
Concave and convex curve.
Curve degree:-15°~+15°
Front&back maintenance.

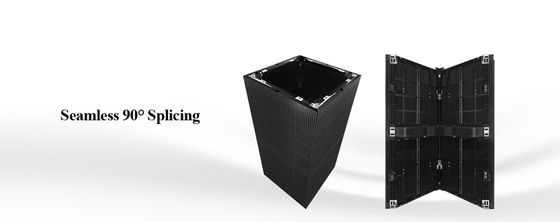

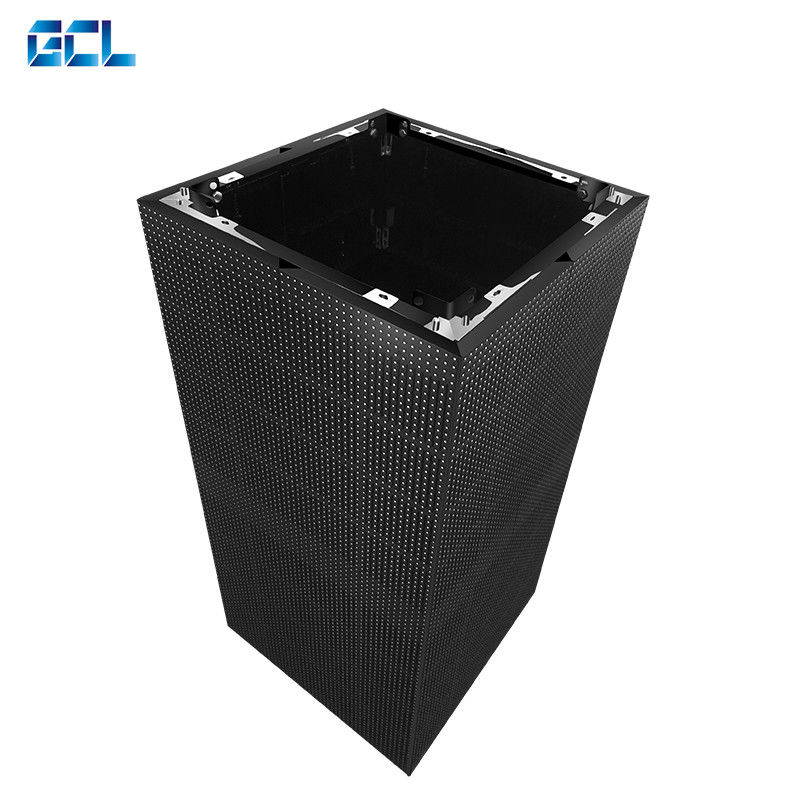

Seamless 90 Degree Splicing
curve cabinet is fixed to the body frame fixed firmware process is simple, smart lock system,easy to operate.
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 8
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 9


DIP346 LED Type
High refresh rate 2880-3840HZ ensure the picture is clear and stable. DIP full color led chip high brightness and high transparency


IP65 Protection Level

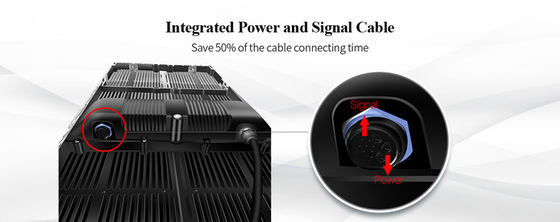

High quality Seetronic, Reunion, Neutric brand aviation plug are available.Waterproof protection IP65 apply to both outdoor fixed and rental projects.
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 10
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 11




9KG Die-casting aluminum material cabinet 500*1000mm,ultra light and slim.The whole cabinet can be removed easily from the wall.
Product Presentation
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 12
Product Name
P10.42 LED Mesh Screen

Density(pixels/m²)
9216
LED Type
SMD3535
Module Size
250*500mm
Scan Method
1/3
Brightness
6000nit
Cabinet Material
Die-casting Aluminum
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 13

Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 14
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 15
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 12
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 17
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 18
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 19
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 20

ABOUT GCL
Shenzhen GCL Electronics CO., Ltd, founded in 1999, is a professional LED display manufacturer over 21 years which integrates research, development, manufacturing, engineering, installing, sales and aftersales service. Headquartered in Shenzhen, China, GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 40 high-speed production machines with high accuracy and more than 10 modern assembly lines. GCL has a very powerful productivity with over 5000 square meters LED screens each month. We have been granted with more than ten LED application products-related patents and certifications in compliance with the ISO 9001, ISO 1400 and ISO18001 standards. Our products have also been certificated with multiple standards, including CCC, FCC, CE, ROHS, UL, EMC, and ETL. GCL has finished more than 10,000 led screen projects all over the world, including some magnificent international government projects such as 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc. We have warehouses in America, Russia and Malaysia.,Poland.
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 21
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 22
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 23
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 24
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 25
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 26
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 27
Customizable Transparent LED Display Board IP65 Rated Outdoor Advertising 28
Q1. Why is the Alibaba account of your company only one year old?
We have two Alibaba accounts, both under the same company name. The first one is 11 years old. To boost our sales, we registered a new Alibaba account in 2020.

Q2. I have never cooperated with your company before, nor have I visited your factory, how do I know that your company is trustworthy? GCL was founded in 1999, we are the most experienced LED display factory in China. All of our company information displayed on Alibaba, including our company video, has been verified by Alibaba. The fact that we have done a lot of magnificent government projects all over the world proves that we are a very professional company. The fact that we provide 3 years warranty while all the other companies provide only 2 years proves that we are more confident about our product quality. You can do the purchase and transfer the money through Trade Assurance on Alibaba, which would 100% project you from any fraud.

Q3.What is your payment terms?
Standard payment terms:30% T/T deposit, 70% T/T before shipment. Other payments terms could also be acceptable upon negotiation;

Q4. What is the delivery time?
Usually 15-18 working days after payment of deposit. Less than a week for our best sales products because we always keep about 500 square meters in stock.

Q7. What technical supports can GCL offer? We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.
Q8: What controlling system do you use ? Our standard controlling system is Novastar which is the most famous and popular system in the market. We can also provide other control systems such as Colorlight, Linsn, Xixun, Onbon, etc. Q9. Do you provide any free spare parts in each order? Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED diod , IC, module mask, power supply, receiving card, etc.
