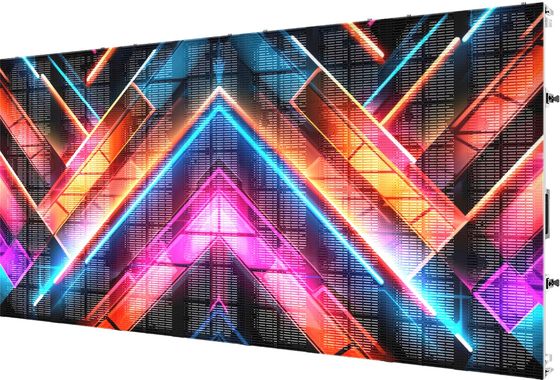

High Brightness Digital Transparent LED Display P15.6mm IP65 500*1000mm

High Brightness Digital Transparent LED Display P15.6mm IP65 500*1000mm

Product Details:

Place of Origin: Guangdong, China
Brand Name: GCL
Certification: EMC/CE/ROHS/CCC/FCC/BIS
Model Number: Gmesh

Payment & Shipping Terms:

Minimum Order Quantity: Min. order: 20
Price: Negotiable
Packaging Details: Single package size:101X116X13 cm
Delivery Time: 15-22Days
Supply Ability: 2000 Square Meter/Square Meters per Month
Get Best Price Contact Now

Detail Information

Application: Indoor, Outdoor Type: LED
Color: Full Color Panel Size: 500*1000mm
Supplier Type: Original Manufacturer Media Available: Datasheet, Photo, EDA/CAD Models, Other
Use: Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment Pixel Pitch: P15.6-31.25
Specification: Video Wall Touch Screen Type: Capacitive
Brightness: 10,000 Nits Pixel Density: 2048 Dots/㎡
Contrast Ratio: 5000:1 Color Depth: 256
Lifespan (hours): 100,000 IP Rating: IP65
HS Code: 8528591090 Resolution: 2K-4K
View Angle(H/V): H100°/V50°
Highlight:

High Brightness Transparent LED Display

,

P15.6mm Transparent LED Display

,

High Brightness Transparent LED Screen

Product Description

Transparent Mesh LED Display ScreenP7.8-3.9  P15.6-31.25mm IP65 500*1000mm High Brightness


Gmesh Series--Outdoor Fixed Installation Product:


1. The first national 7.8-3.9 grille screen product;
2. High safety performance: The product has passed international ClassB certification and has excellent flame retardant and heat dissipation effects. It has extremely high safety performance and can be used with confidence.
3. High product transparency: with a light transmittance of up to 50%; Installing outdoors does not affect indoor lighting.

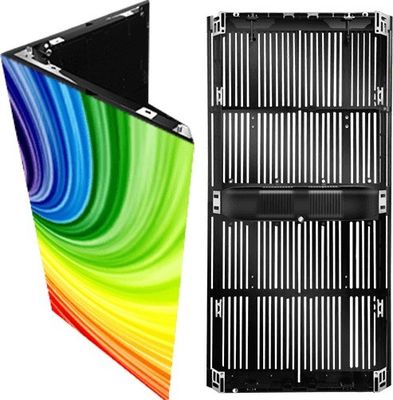

4. Diversified creative installation: can support up to 90 degree external arc installation (right angle installation), and can achieve creative displays such as internal and external arcs,
5. Multi scenario use: can be used in two scenarios: stage rental and outdoor fixed screen.
6. Support full front maintenance (power supply, card, module can be removed from the front), and can also be installed for rear maintenance;

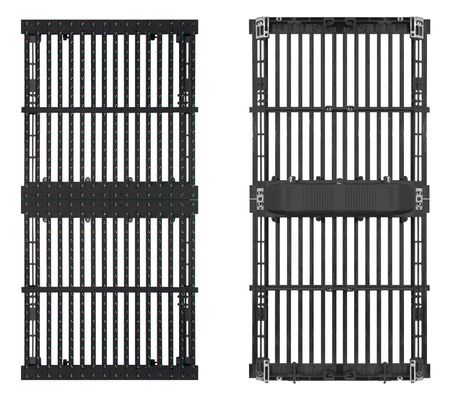

7.using full die cast aluminum box, box size 500 * 1000 * 45mm, module size 250 * 500mm;
8.The lightest weight of the box is about 8kg;
8.The refresh rate is as high as 3840Hz, and the white balance brightness is ≥ 8000cd/㎡;
10.Support single point correction, color temperature 6500-9500K manually adjustable;
11.The minimum average power consumption is 120W;
12.Visual angles H140 °, V120 °;
13.Can be fully maintained before/after.
14.The product has a protection level of IP65 before and after, suitable for various weather conditions



Parameters of Gmesh Series



Name Gmesh7.8-3.9 Gmesh10 Gmesh16-A Gmesh16-B Gmesh16-C Gmesh25 Gmesh31.25
Module
LED Type SMD1921 SMD2727 SMD2727 DIP346 DIP346 DIP346 DIP346
Pixel Pitch(mm) 7.8-3.9 10.4 15.625 15.625 31.25-15.625 25-31.25 31.25
Module Resolution 32*128 24*48 16*32 16*32 8*32 20*8 8*16
Module Size(mm) 250*500 250*500 250*500 250*500 250*500 500*250 250*500
Scan Method 1/8s 1/3s Static Static Static Static Static
Cabinet
UnitResolution 2*2 2*2 2*2 2*2 2*2 2*2 2*2
Cabinet Resolution 64*256 48*96 32*64 32*64 16*64 40*16 16*32
Cabinet Size(mm) 500*1000*41 500*1000*44 500*1000*45 500*1000*50 500*1000*50 1000*500*50 500*1000*50
Cabinet Area(m²) 0.5
Cabinet Material Die-casting Aluminum
Cabinet Weight 19kg 19kg 18kg 22kg 15kg 14kg 14kg
Densiy (pixels/㎡) 32768 9216 4096 4096 2048 1280 1024
Protection Level Front &Rear Ip65
Optics
Brightness(nits/㎡) 5000 5500 5000 10000 10000 8000 8000
Calibration Support Single-dot Calibration
Color Temperature 1700-9500K Adjustable
Viewing Angle H140°,V120° H140°,V120° H140°,V120° H100°,V50° H100°,V50° H100°,V50° H100°,V50°
Transparency 20% 30% 30% 30% 50% 60% 65%
Light Decay Rate <3%
Contrast Ratio ≥9000:1
Grey Scale 13-16bit
Electric
Max Power Consumption/m² 640W 640W 640W 400W 400W 400W 400W
Average Power Consumption/㎡ 220W 220W 220W 120W 120W 120W 120W
Cabinet Maintenance Full Front/Rear Service
Input Voltage AC100~240V(50-60Hz)
