Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 960*960 Mm |
| Supplier Type: | Original Manufacturer | Media Available: | Datasheet, Photo, EDA/CAD Models, Other |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment | Pixel Pitch: | 6.67mm |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 6000-10000nits | Pixel Density: | 22500 Dots/㎡ |
| Contrast Ratio: | 9000:1 | Color Depth: | 256 |
| Lifespan (hours): | 100,000 | IP Rating: | IP65 |
| HS Code: | 8528591090 | Resolution: | 2k-4k |
| View Angle（H/V）: | H160°,V120° | ||
| Highlight: | Network Control Outdoor LED Video Wall,Large Outdoor LED Video Wall,Large Outdoor LED Display Screen |
||
Product Description
Product Description
| Product | P8 | P10 | P10D |
| Pitch | 8mm | 10mm | 10mm |
| Density(pixels/m²) | 15625 | 10000 | 10000 |
| LED Type | SMD2727 | SMD2727 | DIP346 |
| Brightness | 6500nits | 6500nits | 10000nits |
| Scan Method | 1/4 | 1/2 | 1/4 |

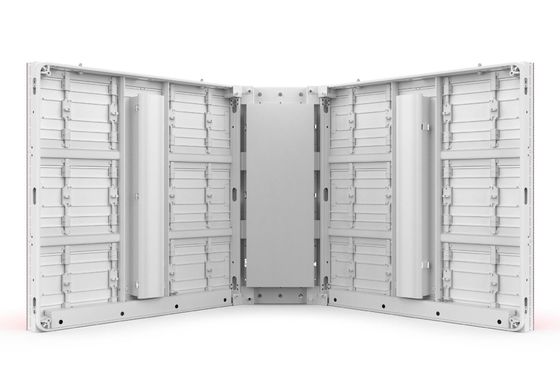

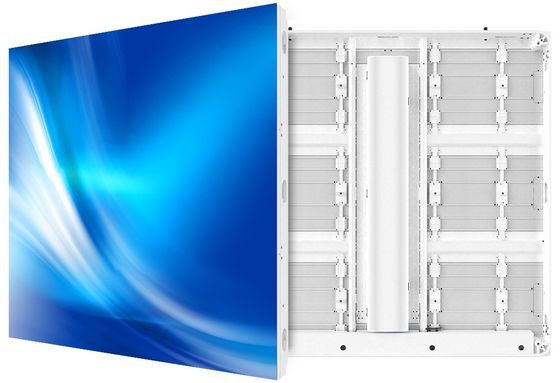

| Panel Size | 960×960mm | ||
| Module Size | 480×320mm | ||
| Panel Material | Profile Aluminum | ||
| Panel Weight | 29.5kg | 29.5kg | 38.8kg |
| Protection Level | IP65 | ||
| Maintenance | Front&Rear Service | ||
| Max Power Consumption | 650W/㎡ | 650W/㎡ | 350W/㎡ |
| Average Power Consumption | 210W/㎡ | 210W/㎡ | 110W/㎡ |
| Refresh Rate | 3840Hz | ||
| Grey Scale | 13-16bit | ||
| Viewing Angle | H140°,V120° | H140°,V120° | H100°,V50° |
| Voltage | AC96~264V(50-60Hz) | ||
| Working Temperature | -30℃ to 60℃ | ||
| Working Humidity | 10%-90%RH | ||
| Color Temperature | 3000-9500K | ||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||
